• Model NO.：R0C0GW04A

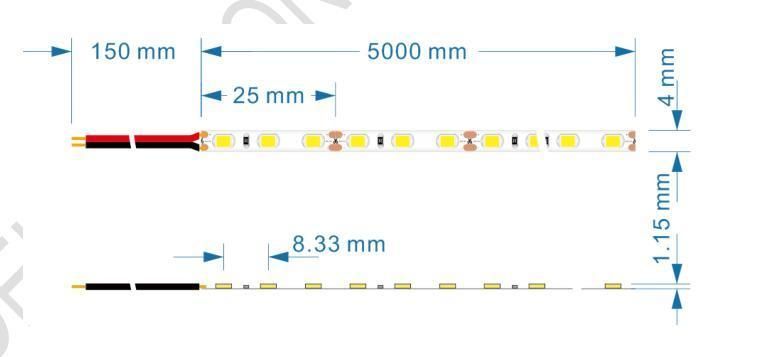

• Product Size：5000*4*1.15 mm
• Cuttable Unit：25mm
• LED Pitch：8.33mm
• Max. Cascade Length：5m
• Min. Bend Diameter：20 mm
• Mounting Solution：3m Tape
• Operating Ambient：-25 Centigrade Degrees to 45 Centigrade Degrees
• Storage Environment：-25 Centigrade Degrees to 60 Centigrade Degrees
• Current：800mA,M for DC 12V
• CRI：>80
• Outer Carton Size：52*37*26cm
• Transport Package：Carton Packaging
• Specification：5M,roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. R0C0GW04A Product Size 5000*4*1.15 mm Cuttable Unit 25mm LED Pitch 8.33mm Max. Cascade Length 5m Min. Bend Diameter 20 mm Mounting Solution 3m Tape Operating Ambient -25 Centigrade Degrees to 45 Centigrade Degrees Storage Environment -25 Centigrade Degrees to 60 Centigrade Degrees Current 800mA/M for DC 12V CRI >80 Outer Carton Size 52*37*26cm Transport Package Carton Packaging Specification 5M/roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Ultra narrow 4mm FPC width DC12V 120 LEDs/meter LED strip lighting

Application
Suitable for hotels, shopping malls, home furnishings, cabinets, display racks, main lighting, indirect lighting, dark slot lighting, contour outline, decorative lighting, etc.

Main features
4mm ultra-narrow 2835 strip, More widely used;
High quality 2835 LEDs,Long service life;
Matching control and dim solutions, Easy to use;
Certification: UL, CE, RoHS, FCC,TUV etc.

Main Parameters
Product Size 5000*41.15mm
Cutting Unit 25mm
LEDs Pitch 8.33mm
LEDs Quantity 120Pcs/m
Max. Cascade Length 5m
Min. Bend Diameter : 20mm
Mounting 3M
Operating Ambient  -25ºC~45ºC
Storage Environment -25ºC~60ºC / 60% RH

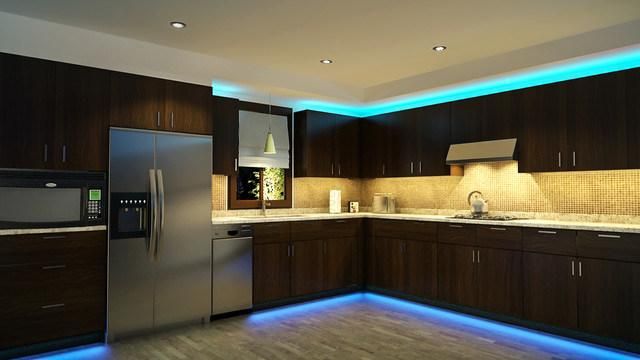

Application Pictures

Instructions
Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.;
Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid
damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature:
--25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
