• Model NO.：LCOB528-12-M10-IP20-14W
• PCB Width：10mm
• Certifiacte：CE,RoHS
• Warranty：2 Years
• IP Rate：IP20
• Delivery Time：5-7 Working Days
• Transport Package：Paper Carton
• Specification：5 meters each roll
• Trademark：LEDMEON
• Origin：China
• HS Code：9405429000
• Production Capacity：10000 Meters , Day

Basic Info.

Model NO. LCOB528-12-M10-IP20-14W PCB Width 10mm Certifiacte CE/RoHS Warranty 2 Years IP Rate IP20 Delivery Time 5-7 Working Days Transport Package Paper Carton Specification 5 meters each roll Trademark LEDMEON Origin China HS Code 9405429000 Production Capacity 10000 Meters / Day

Product Description



Item	LCOB528 IP20 14W 2700K CRI90strip led light wholesale led strip light cob led strip
Model No	LCOB528-12-M10-IP20-14W
PCB Width	10MM
Quantity of leds each meter	528leds/m
PCB materials	2OZ Double-sided coated pure copper
Voltage	DC12V
Wattage	14W/M
Lumen	1400LM/M
Macadam of leds	3-Step & 5-Step are avaible
CRI	CRI 90
Color of strip	WW/NW/CW/R/G/B/Y
Color Tempertature	2700K/3000K/4000K/6000K
Color of PCB	White (black color is avaible)
IP Rate	IP20 (IP54/IP67/IP68 are avaible)
Lighting Angle	120°
Length each roll	5 meters each roll, 10 meters each roll is avaible
Working Temperature(ºC)	-20-50
Life Span	50000 hours
Cutting Section	45.45mm
Adhesive Tape	300LSE 3M tape
Dimmable	Yes
Certificate	CE/ROHS
Warranty	2 Years, 5 years is avaible
Delivery time	5-7 working days after payment
Packing details	5 meters in one roll packed into a static bag, 30 bags packaged into a smaller paper carton, 2 pcs samller carton packaged into 1 bigger paper carton
Dimension of carton	49CM*27CM*39CM (L*W*H)

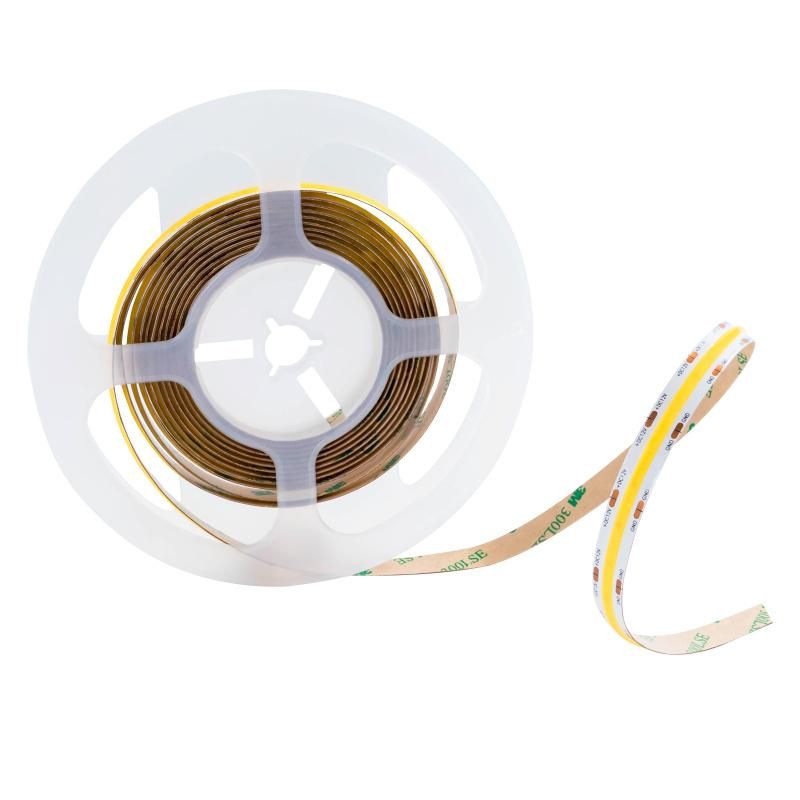

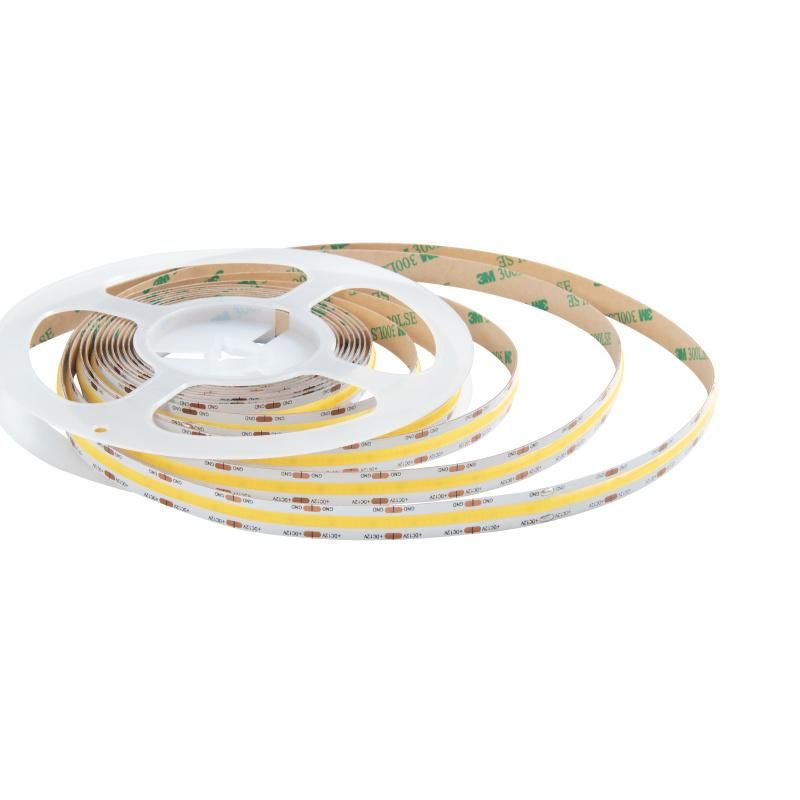

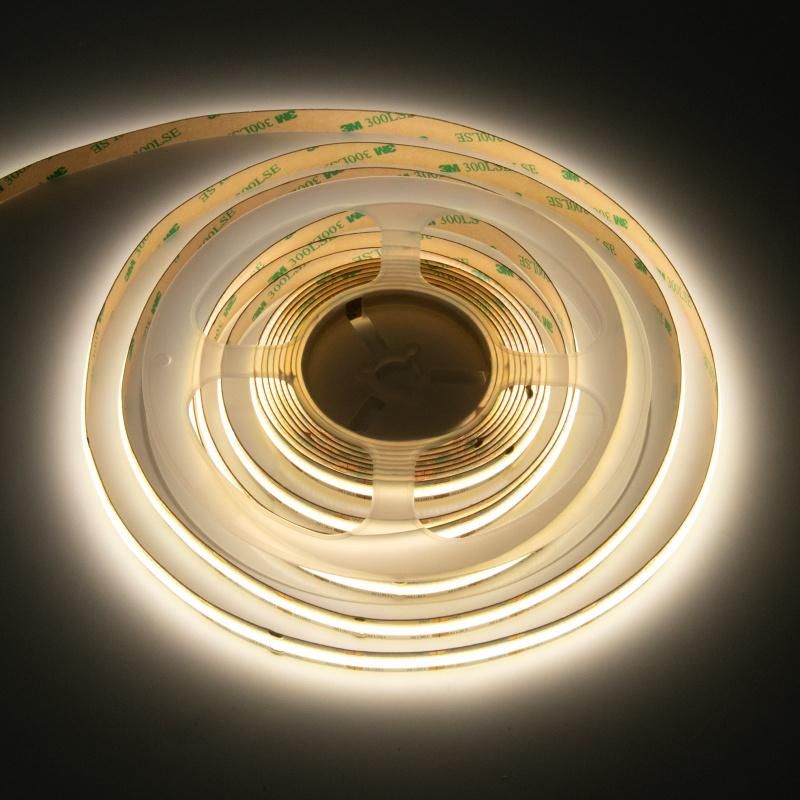

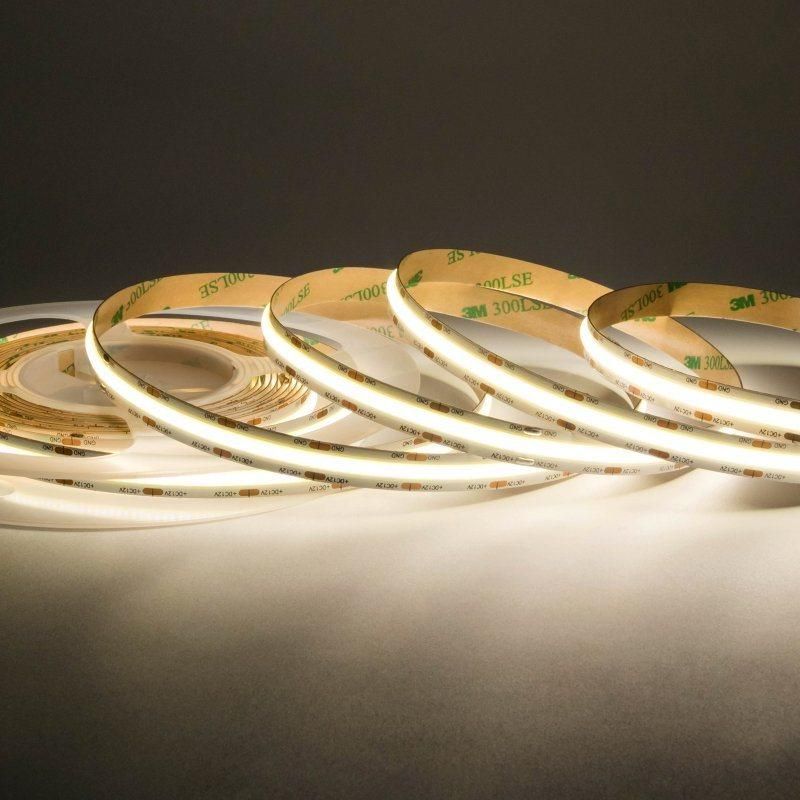

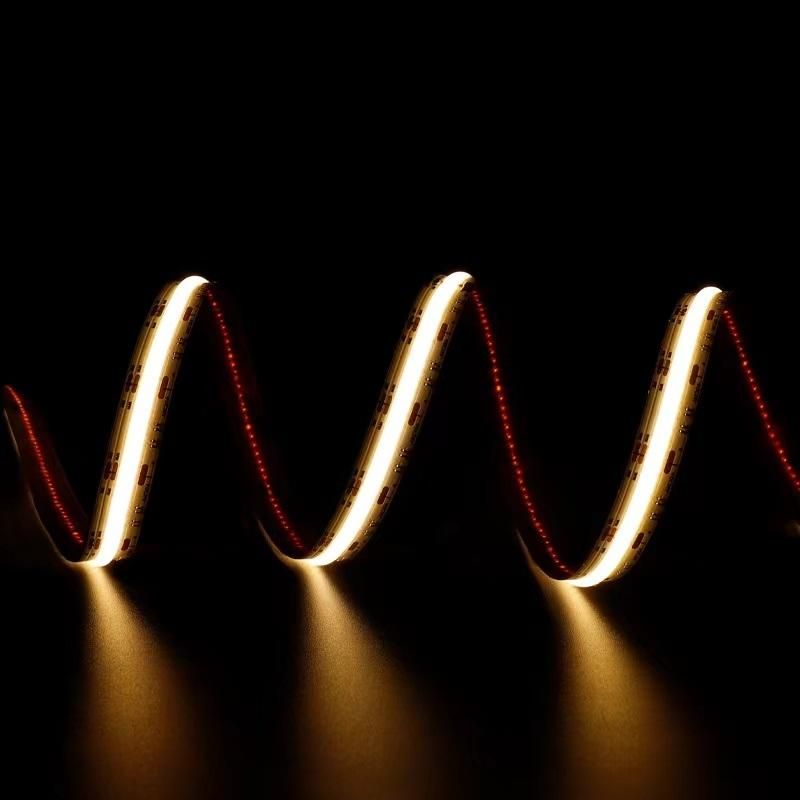

Pictures of Product

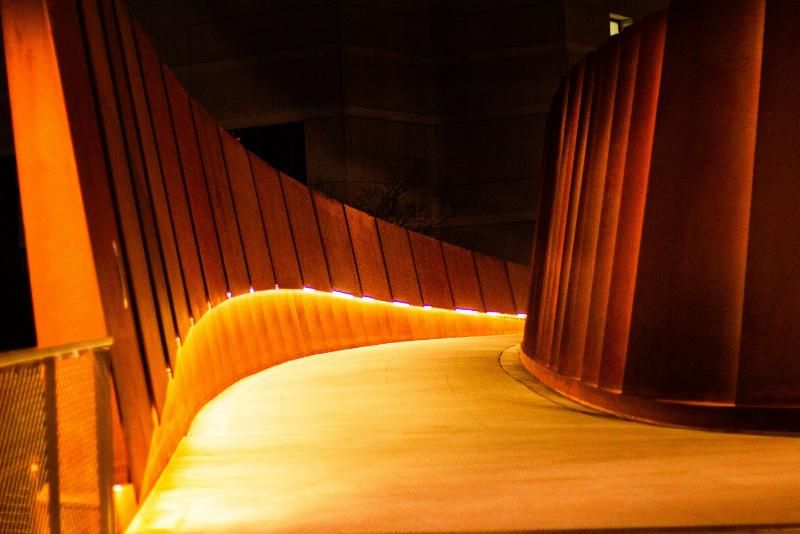

Application
 LCOB528 IP20 14W 2700K CRI90strip led light wholesale led strip light cob led strip is perfect for indoor lighting,such as hotels, furniture decoration
commercial lighting etc.

Advantage


Efficient and professional service

Hight lumens, 1400 lumens each meter, 100lumens/wattage

Long life span 50000 hours

Low voltage DC12V, it is very safe to use it.

High density, no led dots

2OZ Double-sided coated pure copper

Flexibel to be bent in shapes

Energy saving

Easy to be installed by 3M tape at the back

Light weight saves shipping costs

CE/ROHS certifacted

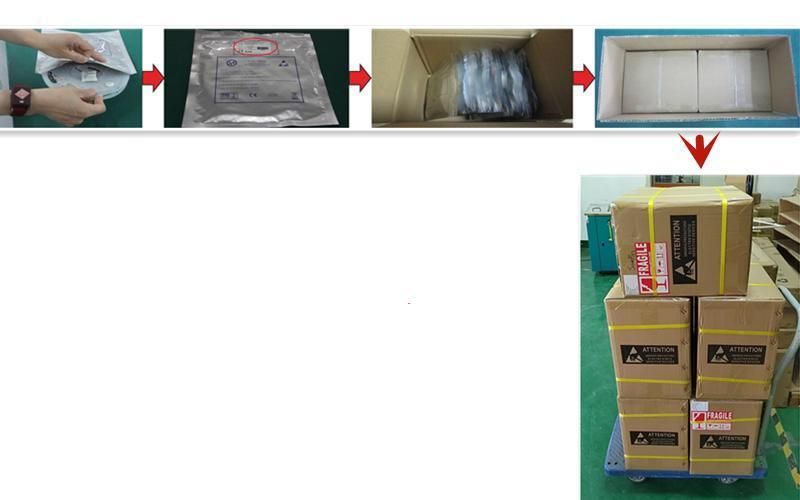

Packing Details

Packing details	5 meters in one roll packed into a static bag, 30 bags packaged into a smaller paper carton, 2 pcs samller carton packaged into 1 bigger paper carton
Dimension of carton	49CM*27CM*39CM (L*W*H)

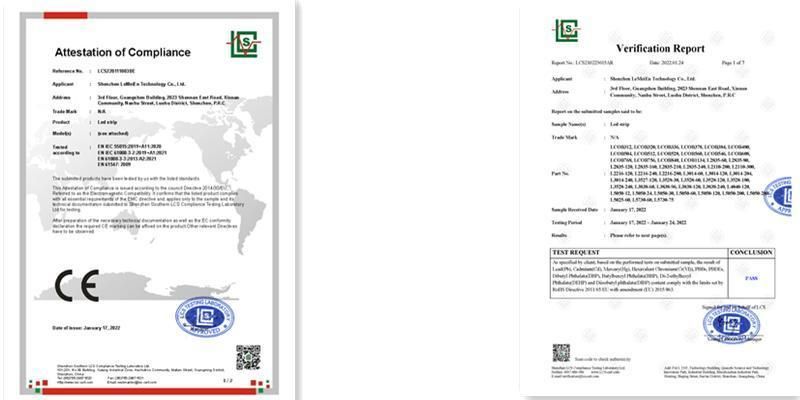

Certificate

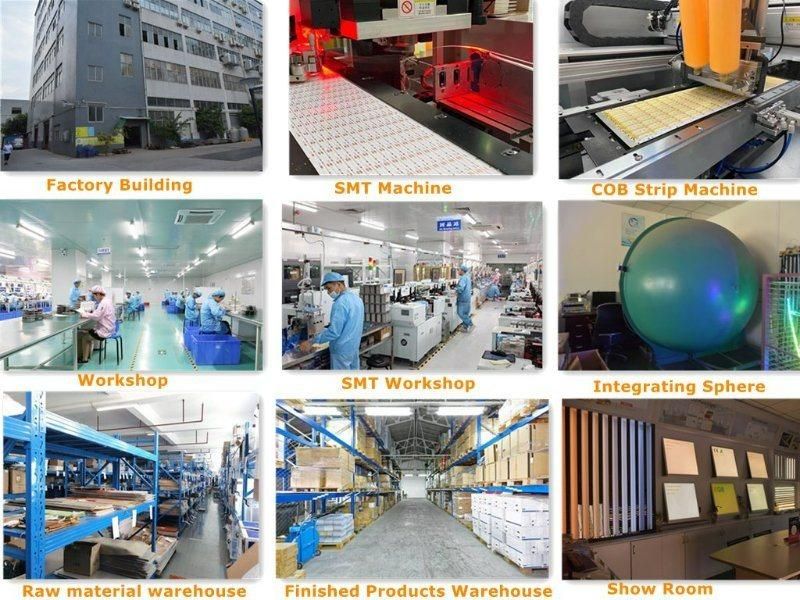

Company profile

LEDMEON was established in 2009, we are dedicated to providing customers with professional lighting solutions. LED Flexible strips, LED Rigid strips, LED Pixel Lights, LED Neon Strip Lights, LED Light Bars, LED touch dimmer sensor switches are our main products. We also provide other accessories such as LED power supply, LED controllers. All of them are CE/ROHS certificated.

Our founder Molly Huang has a dream since she was a child. She hoped that the world could be decorated with various lights, and the whole world would be warm and beautiful at night. At the same time, we also need to think about saving the energy for the world. LED lighting solution is the best choice currently.

We believe that business is based on trust and professional suggestion. Wish we could have the pleasure to work with you!


FAQ

Q1. Are you a manufacturer or trading company?
A: We are manufacturer, we are making led strips, led lighting products over 10 years in Shenzhen.

Q2. What are your main products?
A: LED Flexible strips, LED Rigid strips, LED Pixel Lights, LED Neon Strip Lights, LED Light Bars, LED touch dimmer sensor switches.

Q3. What is your company's warranty policy?
A: Our standard products is 2 years, 5 years is avaible.

 Q4. Do you provide OEM/ODM services?
A: In fact, we could preffer to make the OEM/ODM products for our clients. We would like to be different, different idea makes different profit for both of us.  :)

Q5. Would you offer a confidentiality agreement?
A: Yes, we pay attention to intellectual property of both parties, so we will sign a confidentiality agreement to protect our intellectual property. For your ODM/new items, we promise you that we will never show it in public or show it to other clients.

Q6. What is your delivery time for bulk order?
 A: Delivery time could be within 3 days after payment if we have them instock, and it will take about 5-7 working days after payment if we do not have them in stock.
