Tunable CCT COB Light Strip 504LED Dotless Pure Copper FPC
Mynice Optoelectronics Co., Ltd.- Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
- Power：8.6W
- Emitting Color：2700K,3000K,4000K,5000K,6500K
- Voltage：24V
- IP Rating：IP20,IP54,IP65,IP67,IP68

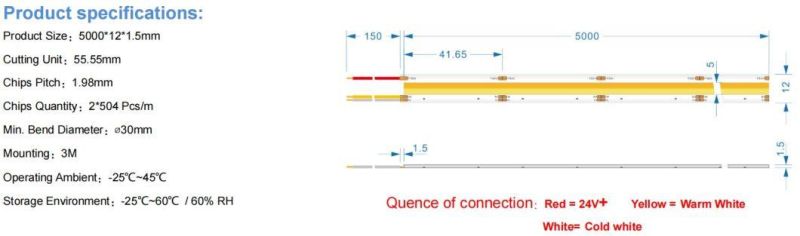

- Product Size：5000*12*1.5mm
Base Info
- Model NO.：RB0J4WW12B-SS
- Cutting Unit：55.55mm
- Chips Pitch：1.98mm
- Chips Quantity：2*504 PCS,M
- Min. Bend Diameter：30mm
- Transport Package：5m,Roll,Bag
- Specification：5m,roll
- Trademark：YOUNICE,ODM
- Origin：China
- HS Code：9405429000
- Production Capacity：100000m,Day
Description

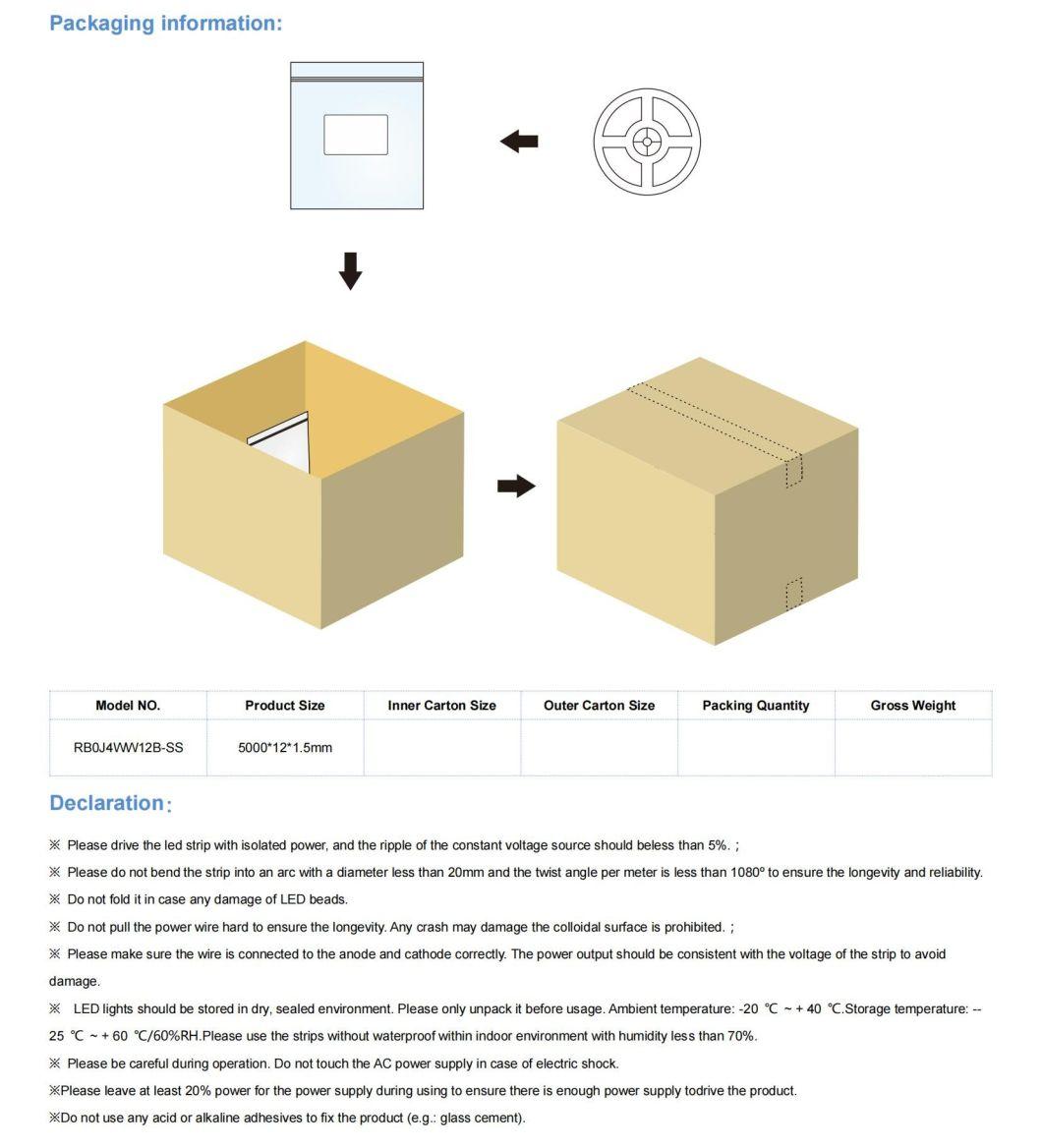

Declaration: Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.; Please do not bend the strip into an arc with a diameter less than 20mm and the twist angle per meter is less than 1080º to ensure the longevity and reliability. Do not fold it in case any damage of LED beads. Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.; Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage. LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: -- 25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%. Please be careful during operation. Do not touch the AC power supply in case of electric shock. Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product. Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
