• Model NO.：ACE2835-1
• Transport Package：Box
• Specification：48CM*28CM*23CM
• Trademark：no
• Origin：Shenzhen
• HS Code：940540900
• Production Capacity：100000,Meter,Month

LED QUANTITYvoltagepackingPCB283564,112,128,176,192,24060,120,180,240240 double line5v/12v/24v5m/reel ,10/reel, 20m/reel6,8,10,12mm505060120 5v/12v/24v5m/reel ,10/reel, 20m/reel6,8,10,12mm Model NO.LEDs SuppliersLEDs materialLED BINsLED Chip BrandPCB WidthPCB materialPCB thicknessASL/K-2835W+WW120Honglitronic/Osram/Samsungpackaged by 99.99% pure gold wire3-Step/5-Step, same BIN for each orderSanan(Epistar optional)8mmDouble-sided coated pure copper2Oz (front 35um, back 35um)Adhesive TapeIP GradeTransport PackageSpecificationOriginHS CodeProduction CapacityTrademark9495 3000LSE 3M tapeIP20/IP60/IP65/IP685m/Roll8*5000mmGuangdong  Jiangmen940540900100000meter/MonthLeomay

Model No.	ASL/K-2835W+WW120
PCB Width	8MM
LED Qty/m	120 leds/m 2835
PCB materials	2Oz Double-sided coated pure copper
Voltage(V)	12V DC 24V DC
Rated Power(W)	12W/M,
Luminous(lm/m)	22-24lm
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP33(IP54/IP65/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20 - 60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes

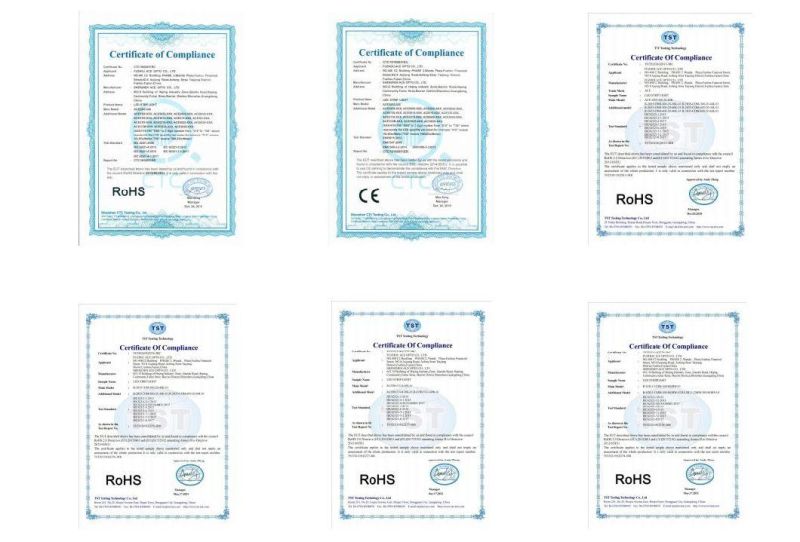

Certificate	CE, RoHS, FCC.
Warranty	1-3 Years

Application

This product can be used for :

1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, Bottle Moulding Machine
5.Large scale backlight
6.Indoor and outdoor lighting and for festival decoration

Our Services

1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.

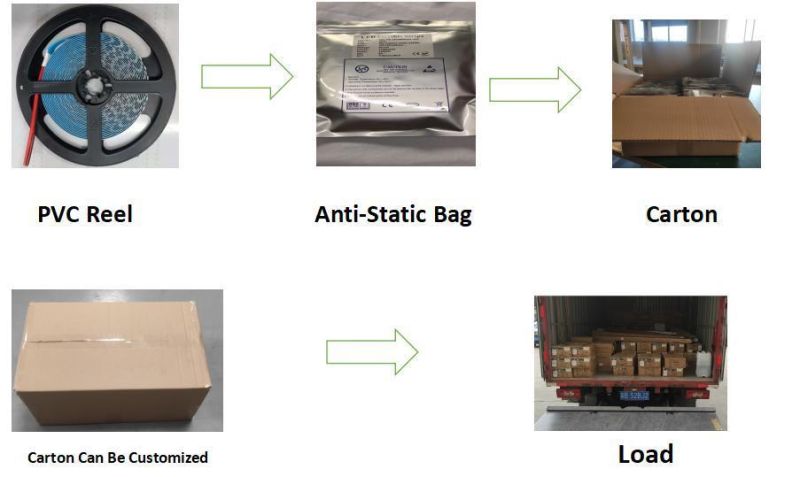

Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 100rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:48CM*28CM*23CM
5. weight: 10.5±0.5KG/BOX
