• Model NO.：RL084GW12M, RL084GW12M-1
• FPC Width：12mm

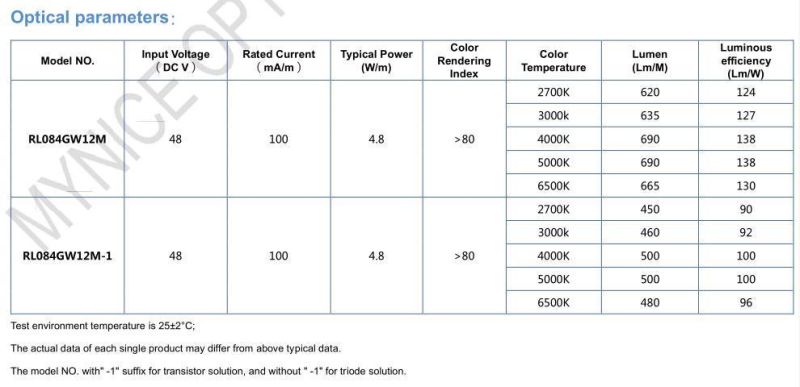

• Lumens：2700K 620lm, 3000K 635lm, 4000K 690lm, 5000K 690lm
• Min. Cut：166.7mm
• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. RL084GW12M/ RL084GW12M-1 FPC Width 12mm Lumens 2700K 620lm, 3000K 635lm, 4000K 690lm, 5000K 690lm Min. Cut 166.7mm Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

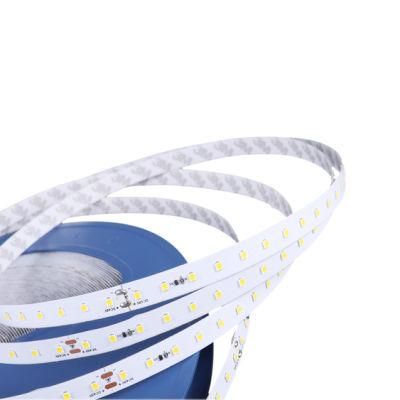

High quality super Long 50M Cascading DC 48V 2835 non-waterproof low voltage LED light Strip
Application
super market, hotel lobby, dark groove decoration, building/bridge outline lighting

Main features
Single end power supply for 50m, no brightness difference from head to tail.
High quality IC, constant current for single LED.
3oz FPC makes great capacity for high current.
Lower lumen drop LED with longer lifetime.
Single BIN shipment, good lighting consistency.
Certification: UL, CE, RoHS, FCC,TUV etc.

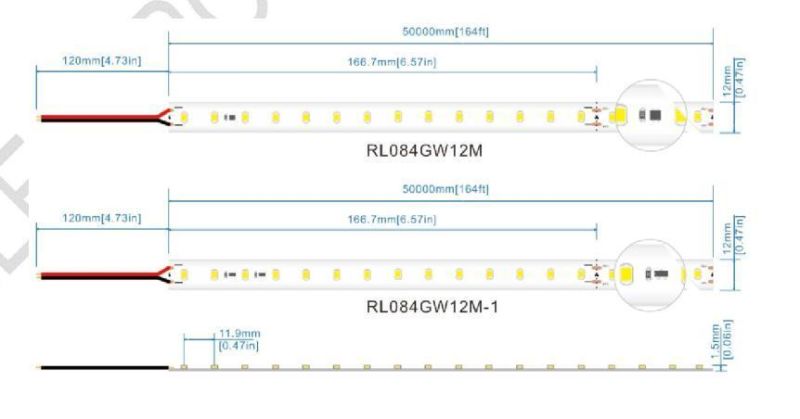

Main ParametersProduct Size 50000*12*1.5mm [164ft*0.47in*0.06in]
Cutting Unit 166.7mm [6.57in]
Chips Pitch 11.9mm [0.47in]
Chips Quantity 84Pcs/m [28Pcs/ft]
Max. Cascade Length 50m [164ft]
Min. Bend Diameter 20mm [0.79in]
Mounting 3M
Operating Ambient  -25ºC~45ºC
Storage Environment -25ºC~60ºC / 60% RH

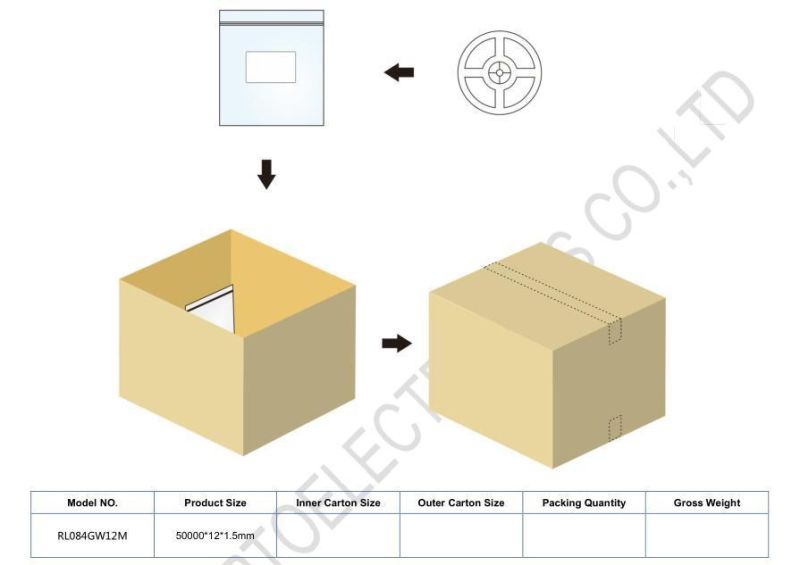

Package

Instructions
Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.
Please do not bend the strip into an arc with a diameter less than 20mm and the twist angle per meter is less than 1080º to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid
damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: --25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
