• Model NO.：MB-FS30ED-W-120,20
• PCB Width：8mm
• CRI：80
• LED Type：3014
• Emitting：Side View
• Transport Package：5m,Reel
• Specification：sideview led strip
• Trademark：Maxblue
• Origin：Shenzhen, China
• HS Code：94054090
• Production Capacity：20, 000m,Week

Basic Info.

Model NO. MB-FS30ED-W-120/20 PCB Width 8mm CRI 80 LED Type 3014 Emitting Side View Transport Package 5m/Reel Specification sideview led strip Trademark Maxblue Origin Shenzhen, China HS Code 94054090 Production Capacity 20, 000m/Week

Product Description

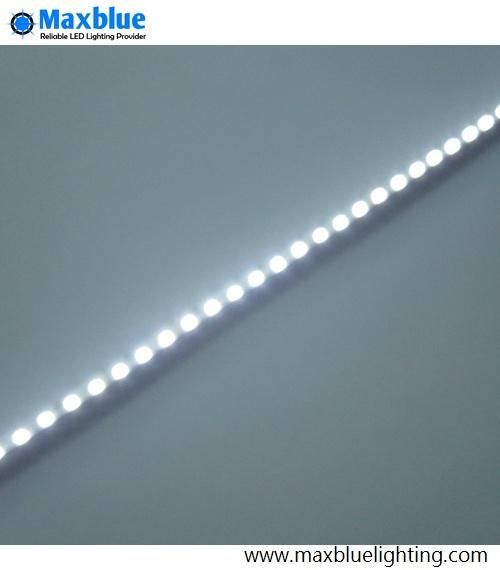

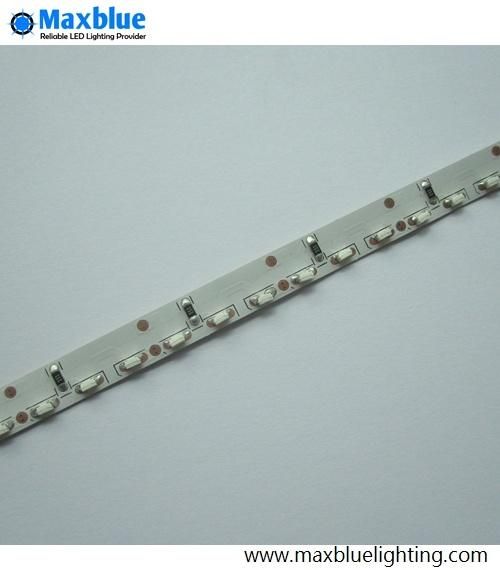

SMD3014 LED Strip Light Side View LED Strip Light 120LEDs/M

3014 sideview led strip features:

-Ideal for fast installation into many applications like signs, displays and pelmets
-Back affixed with 3M double-sided adhesive , easy to install .
-Low voltage , safe and environmentally friendly.
-Special circuit design, anti-static and stable.
-Solid state light source, shock , no subject to RF interference.
-Different colors and IP20/non-water proof, IP55, IP67, IP68 available
-White, yellow PCB board
-Per 3-led or 6-led cuttable for DC12V or 24V
-CE, ROHS certification
-3-year warranty

3014 sideview led strip Specification:

Model No.: MB-SFS30-W-120/20
Dimension: 5000mm*8mm*0.22mm
PCB width: 8mm or 5mm
PCB color: White, Yellow or Black
Voltage: DC12V / DC24V
Max.Current: 20mA/led
Wattage: Max. 12W/M
LEDs: 600pcs SMD3014 10-13lm/led
Waterproof grade: IP20
Beam Angle: 120degree
Color: Warm white, Cool white
Working temperature: -20~+60 celsius degree


Model No.:	MB-SFS30-W-120/20
PCB width:	8mm 5mm
Voltage:	DC12V / DC24V
Wattage:	Max. 12W/M
LEDs:	600pcs SMD3014 10-13lm/led

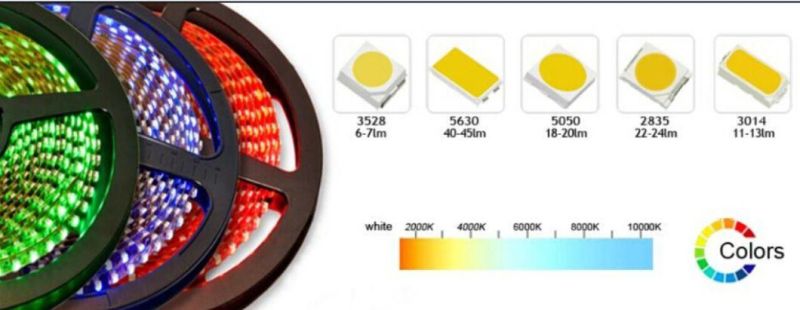

Flexible led Strip range:

--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
                            RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip:  3528 120/240 leds/m, 5050 60leds/m, 2835 112leds/m; 3014 224leds/m; 5630 112leds/m.
--digital strips
--110V/220V led strips

different length, different voltage, different led quantity can be customized/tailored.




FAQ:

Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: maxblue.en.made-in-china.com

Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.

Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.

Q4: What is warranty time for your products? If any broken, what I will do?
3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.

Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.

Q6: What kinds of payment methods do you accept?
 T/T bank transfer, West Union and Paypal, L/C at sight

Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.

Q8: How to contact us?
Send your inquiry in the below for Price list and more detailed information, hot-selling and discount Now!
