• Model NO.：LM3528-WN60-HL-24V
• LEDs Suppliers：Honglitronic,Samsung
• LEDs material：packaged by 99.99% pure gold wire.
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8 mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：UL, CE, RoHS, FCC, ERP
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：50000 Meter,Day

Basic Info.

Model NO. LM3528-WN60-HL-24V LEDs Suppliers Honglitronic/Samsung LEDs material packaged by 99.99% pure gold wire. LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8 mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification UL, CE, RoHS, FCC, ERP Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 50000 Meter/Day

Product Description

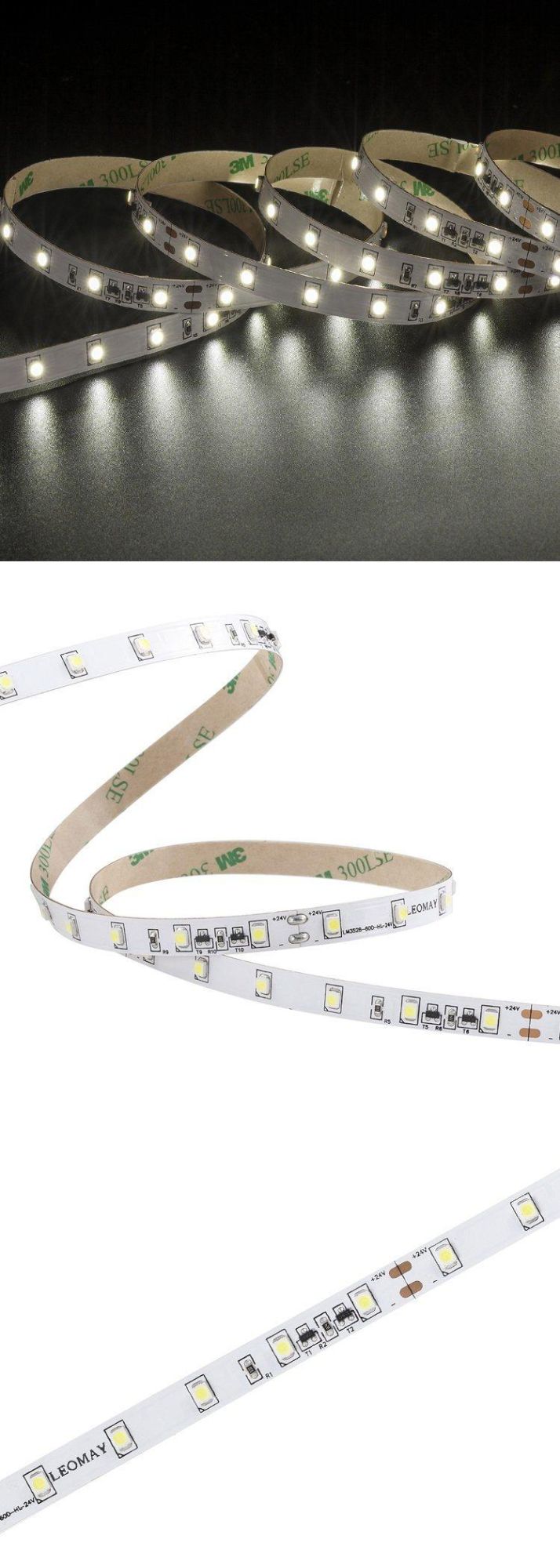

Energy saving High Lumen Constant Current SMD3528 60 LED Strip with CE

Product Paramenters


Model NO	LM3528-WN60-HL-W-24V-8MM
Product Name	SMD3528 60LEDS/M Constant Current LED strips
PCB Width	8MM
LED Qty/m	60leds/m 3528
PCB materials	2Oz Double-sided coated pure copper
Voltage(V)	24V DC
Rated Power(W)	4.8W/M, 24W/5M
Luminous(lm/m)	420lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	6 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

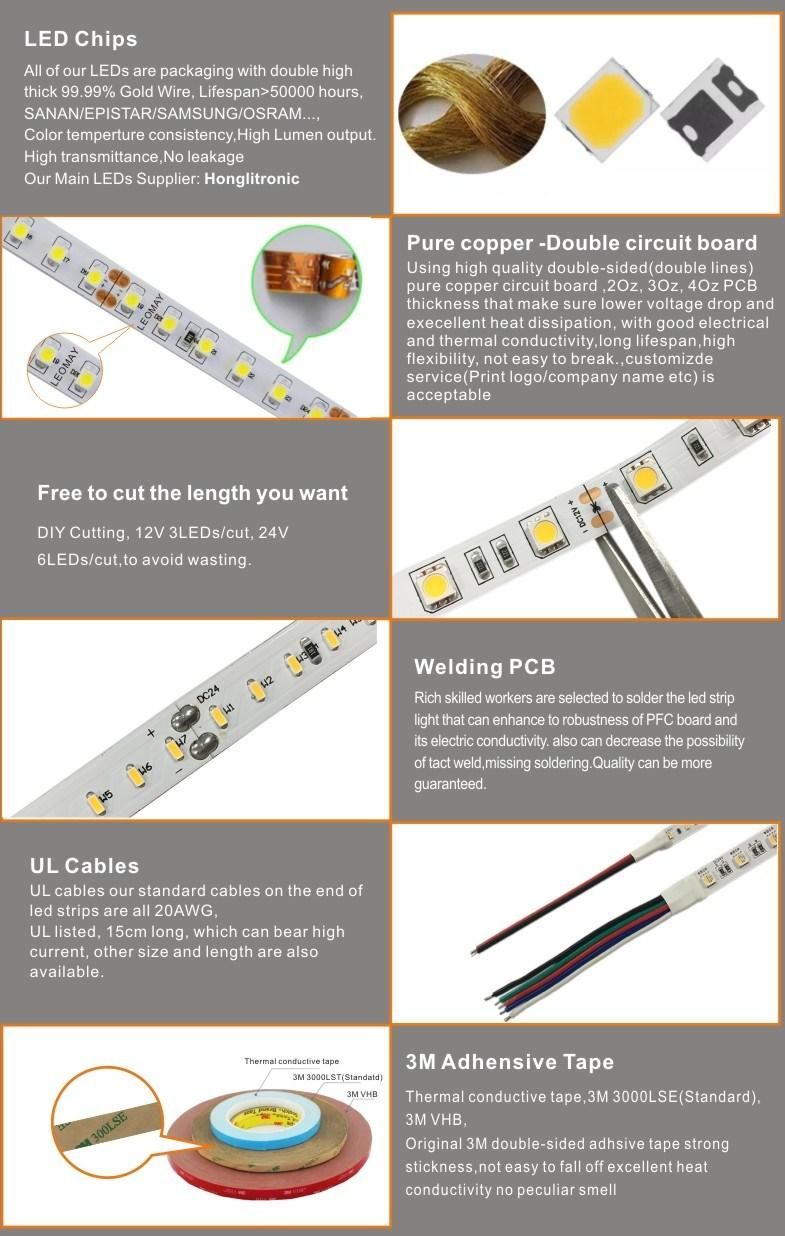

Product Features:

1, No UV/IR radiation and light source long life-span(>5000 hours).

2, Energy saving and environmental conservation,ECO-friendly,NO mercury

3, Superior color rendering.CRI>80,90,96

4. The color and width of PCB board could be choosed.

5. PCB thickness can be 2oz, 3oz.

6. The voltage can be 5-24V or your requirement.Low voltage ,safety,stability.

7. The LED quantity can be choosed, from 30leds/m to 480leds/m.

8, From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.

9, Reliable SMD Source, super brightness, high CRI,low decay.

10,Easy installation using 3M tape or plastic clip to fix it

11,Strips Can be bent,can be cuttable,can be arbitrarily fixed in the concave surface.

12,Print your logo on the PCB, and do customized packages are acceptable.




Details Images

Our Services

1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.



Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. 50Rolls led strip in 1 Box
6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.




Recommend Products



Company Profile



Our Advantages

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Eergy saving and environmental conservation, long lifespan.
