• Model NO.：MB-DFS3-W-240,20
• PCB Width：15mm
• Working Voltage：DC24V
• Color Available：Warm White, White, Red, Blue, Green, Yellow
• Transport Package：5m,Reel
• Specification：5m,reel
• Trademark：Maxblue
• Origin：Shenzhen, China
• HS Code：94054090
• Production Capacity：20, 000m,Week

Basic Info.

Model NO. MB-DFS3-W-240/20 PCB Width 15mm Working Voltage DC24V Color Available Warm White, White, Red, Blue, Green, Yellow Transport Package 5m/Reel Specification 5m/reel Trademark Maxblue Origin Shenzhen, China HS Code 94054090 Production Capacity 20, 000m/Week

Product Description

DC24V 240LED/M Double Row 3528 SMD LED Strip Light

 Features:

-Single color flexible LED strip with self-adhesive backing
-Ideal for fast installation into many applications like signs, displays and pelmets
-240 SMD3528 Led per meter in double row
-5 meters per roll
- Different colors and IP20, IP55, IP67, IP68 available
-White, yellow PCB board
-Per 3-Led cuttable for 12V strip, per 6-led for 24V strip
-Two-year warranty with CE RoHS compliant

Product Specification:

Model No.: MB-DFS3-X-240/XX
Dimension: 5000mm*15mm*0.22mm
PCB width: 15mm
PCB color: White
Voltage: DC24V
Max.Current: 20mA/LED
Wattage: Max. 19.2W/M, Max.96W/roll
LEDs: 1200pcs SMD3528
Waterproof grade: IP20
Beam Angle: 120degree
Color: Warm white/Cool white/Red/Green/Blue/Yellow
Working temperature: -20~+60 celsius degree

  Specification:

Model No.:	MB-DFS3-W-240/20
PCB width:	15mm
Voltage:	DC24V
Wattage:	Max. 19.2W/M
Led quantity:	240leds/m, 1200leds/reel
Color:	cool white /warm white/natural white/red/green/blue/yellow
CRI:	80+/90+

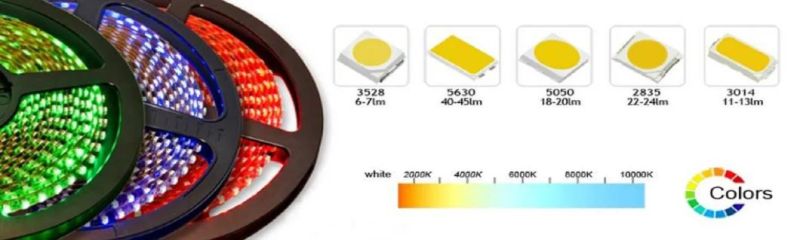

Flexible led Strip range:
--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
                            RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip:  3528 120/240 leds/m, 5050 60leds/m, 2835     112leds/m; 3014 224leds/m; 5630 112leds/m.
--digital strips
--110V/220V led strips

different length, different voltage, different led quantity can be customized/tailored.

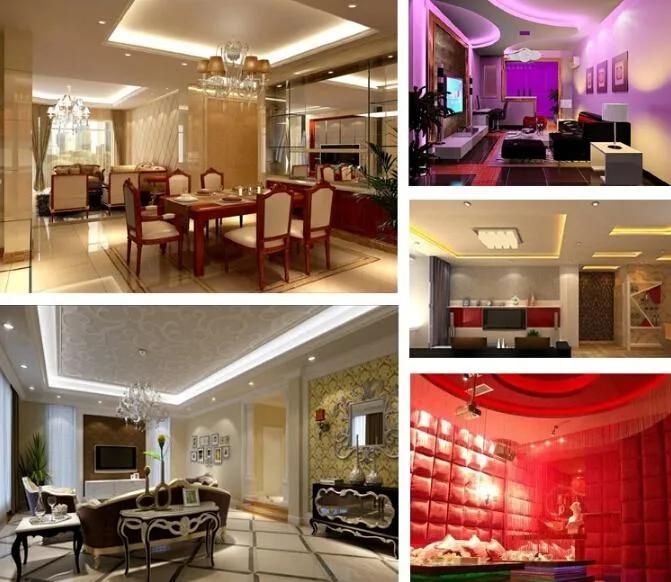

LED Strip Application:

FAQ:

Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: maxblue.en.made-in-china.com

Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.

Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.

Q4: What is warranty time for your products? If any broken, what I will do?
2-3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.

Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.

Q6: What kinds of payment methods do you accept?
 T/T bank transfer, West Union and Paypal, L/C at sight

Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
