• Model NO.：LS-03
• IP Rating：IP33
• Beads：5050
• Buttons：24
• Transport Package：Polybag,Color Box,Yellow Carton
• Specification：5meters
• Trademark：no mark
• Origin：China
• HS Code：3401964693

Ambient temperature range (TA on free air)-25…..+50ºCOperating (case) temperature range (TC)-25…..+50ºCStorage temperature range-25…..+60ºCIP ratingIP33

Electrical parameters
 Part No.ColorColor RangeFlux per meterMin. CCT or wavelengthTyp. CCT or wavelengthMax. CCT or wavelengthMin. LumenTyp. Lume

Attention
1. Max. Length of strip is 5meters from power supplier to single end.
2. The LED strip itself and all its components may not be mechanical stressed.
3. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
4. The design of the housing should be according to the IP standards in the application.
5. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

Package

Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 40 bags per boxes.

Installation and description and attention

1. Power supply should have necessary short circuit and over-voltage protection and other functions. No use un-isobaric power supply. And Insulated handle is needed.

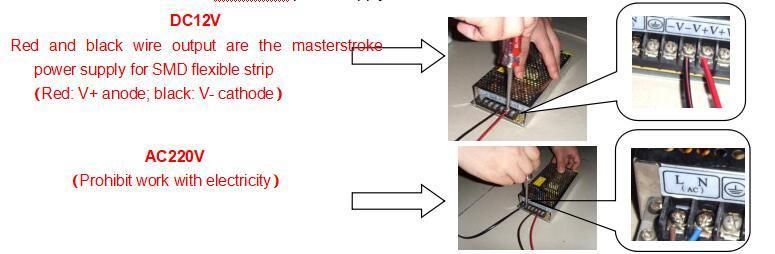

The diameter of red and black wire is according to the quantity of the strips, the distance between power supply and SMD flexible strip, power of strip and other factors. Commonly, the bigger longer distance, the bigger power and the more strips, and the larger of the diameter. Suggest to use RV( single line with several cores wire) wire as masterstroke, flexible and easy to connect. Please put extra masterstroke if single one support over 100W.

2. Fit the strips according to the actual situation.

    1) Spread the strip flatly where you want to equip
   2) As per the following diagram, use transparent clips to fit strips. Every 4 pcs in a meter. Theclip should be equipped between LEDs, no press on LED.


   3) Connect with masterstroke, every 5 mtrs in one main line according to the character of strips. Under with power supply on two ends, it can connect with 10 mtrs.

Pictures






Applications

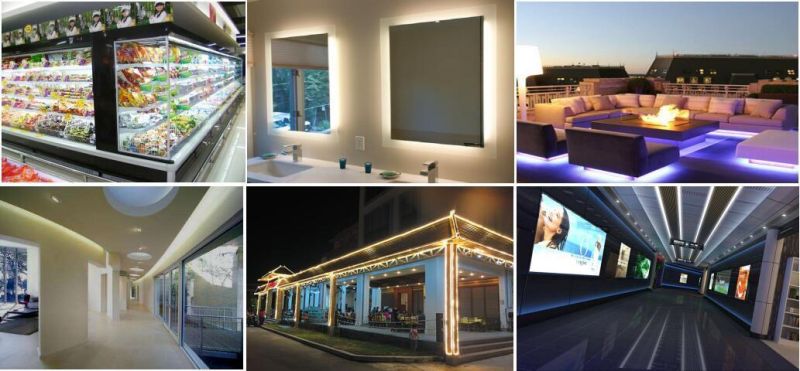

1. Curve lighting
2. Freeze lighting
3. Light bar light source
3. Special sign
