180c View Angle DOT Free 24VDC Flexible COB Fob LED Strip
MSS LED Lighting Co., Ltd.- Certification:LVD, UL, EMC, RoHS, CE
- Power:10W,M
- Emitting Color:White3000K-7000K
- Voltage:DC24V
- IP Rating:IP33
- Macadam Level:3~5 Step
Base Info
- Max.Length:5m,Roll LED Strip
- Warranty:3 Years
- LED Type:COB,Fob
- PCB Width:8mm or 10mm or 12mm LED Strip
- Transport Package:Anti-Static Package
- Specification:5000*8mm LED Strip
- Trademark:MSS LED,OEM,ODM
- Origin:China
- HS Code:9405409000
- Production Capacity:60, 000m,Month
Description
Basic Info.
Max.Length 5m/Roll LED Strip Warranty 3 Years LED Type COB/Fob PCB Width 8mm or 10mm or 12mm LED Strip Transport Package Anti-Static Package Specification 5000*8mm LED Strip Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 60, 000m/MonthProduct Description
180C view angle dot free 24VDC Flexible COB FOB LED StripFeatures
1. No light spots, no shadows, soft light.
2. The illumination angle can be up to 180°
4. Available Size: 5-10mtrs per roll
5. Antistatic rating (MIL-STD-883E): HBM 2 (2000~4000V)
6. Suitable for regular led strip installation way, this product no harmful substances and meets RoHS environmental protection standards.

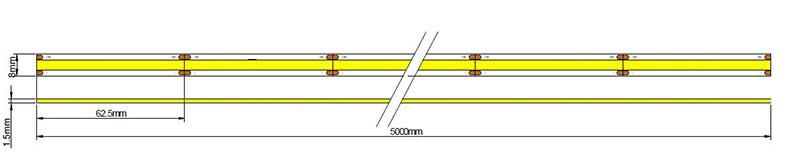

Dimension
Product parameters
DIMENSION | INPUT | CHIPS Q'TY | RESISTOR Q'TY | WATT | PCB | LUMENS | CCT | RA |
5000*8mm | DC 24V | 512 | 48 | 10W/M | 35+35um | Max.120lm/W | 2700-6500K | >90 |

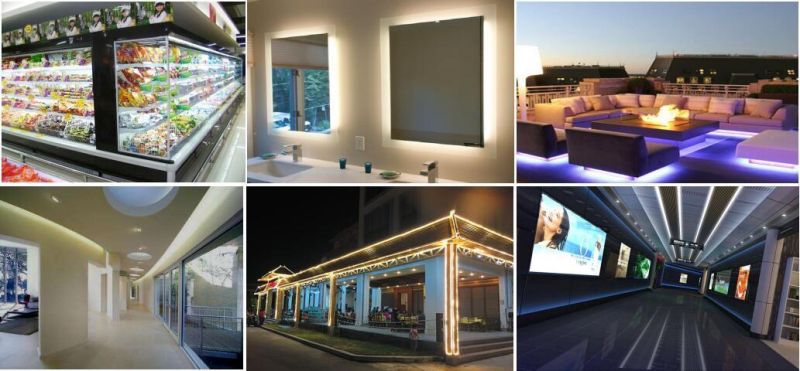

Application
Decorative lighting, signage, advertising signs, booths, etc.
