Waterproof SMD 5050 LED Strip Backlight LED Strip 24V
MSS LED Lighting Co., Ltd.- Certification：UL, RoHS, CE
- Power：11-15W
- Emitting Color：RGB
- Voltage：24V 12V
- IP Rating：IP33,IP65,IP68
- Certificates：Ce,RoHS
Base Info
- Model NO.：F150-5050X-24V
- Color：Multi-Color
- Life(H)：50000h
- Product Type：LED Strip 24V
- Transport Package：Antistatic Bag, 5meters. Roll
- Specification：5meters,roll
- Trademark：MSS LED
- Origin：Shenzhen China
- HS Code：9405990000
- Production Capacity：800000meters,Month
Description
Flux per meterMin. CCT or wavelength Typ. CCT or wavelength Max. CCT or wavelength Min. Lumen Typ. Lumen F300-5050R-24V 620nm 625nm 630nm 120LM 150LM F300-5050G-24V 520nm 525nm 530nm 400LM 480LM F300-5050B-24V 460nm 465nm 470nm 70LM 90LM
Attention
1. Max. Length of strip is 5meters from power supplier to single end.
2. The LED strip itself and all its components may not be mechanical stressed.
3. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
4. The design of the housing should be according to the IP standards in the application.
5. If surge protection structure not within power supplier, a lightening protector should be needed additionally.
Package
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 60 bags per boxes.

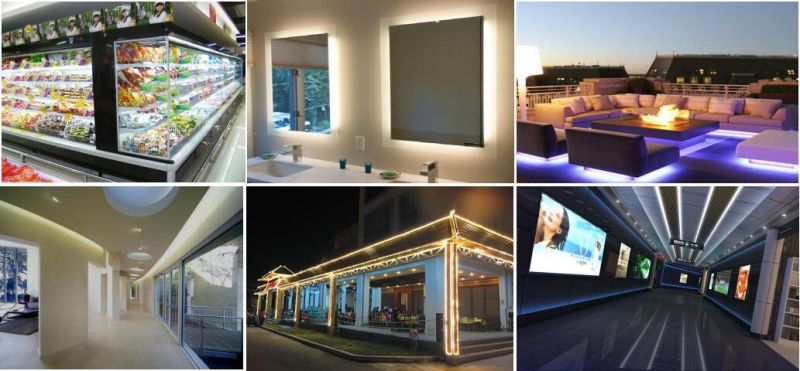

Applications
1. Curve lighting
2. Freeze lighting
3. Light bar light source
4. Special sign

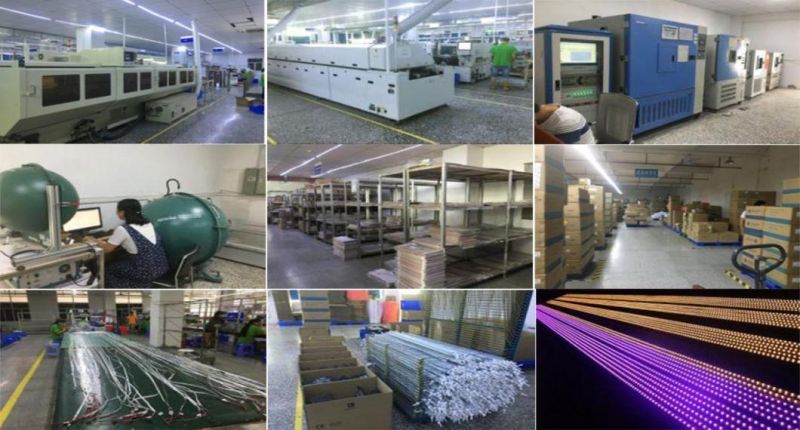

Company Profile
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
Attention
1. Max. Length of strip is 5meters from power supplier to single end.
2. The LED strip itself and all its components may not be mechanical stressed.
3. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
4. The design of the housing should be according to the IP standards in the application.
5. If surge protection structure not within power supplier, a lightening protector should be needed additionally.
Package
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 60 bags per boxes.
Applications
1. Curve lighting
2. Freeze lighting
3. Light bar light source
4. Special sign
Company Profile
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
