3838 RGB LED Strip 5mm Ultra-Narrow 600LED 24V 9.6W One Bin High-End
Mynice Optoelectronics Co., Ltd.- Certification:FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
- Power:9.6W
- Emitting Color:RGB
- Voltage:24V
- IP Rating:IP20,IP54,IP65,IP66,IP67,IP68
- LEDs Quantity:120PCS,M
Base Info
- Model NO.:R0C0NA05R

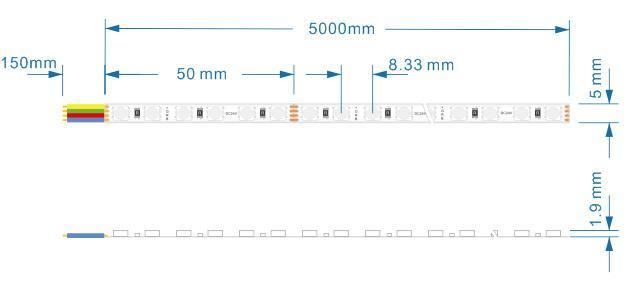

- Product Size:5000*5*1.9mm
- Cutting Unit:50mm
- LEDs Pitch:8.33mm
- Max. Cascade Length:5m
- Min. Bend Diameter:40mm
- Mounting:3m
- Transport Package:5m,Roll,Bag
- Specification:5m,Roll
- Trademark:YOUNICE,ODM
- Origin:China
- HS Code:9405429000
- Production Capacity:100000m,Day
Description
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.; - Please do not bend the strip into an arc with a diameter less than 40mm to ensure the longevity and reliability. - Do not fold it in case any damage of LED beads. - Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.; - Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage. - LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: --25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%. - Please be careful during operation. Do not touch the AC power supply in case of electric shock. - Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product. - Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
