• Model NO.：MB-FS2-CC-140,20
• Light Source：SMD2835
• LED Quantity Per Meter：140
• PCB Width：15mm
• CRI：80+,90+
• Transport Package：5m,Reel
• Specification：CE, RoHS
• Trademark：Maxblue
• Origin：Shenzhen, China
• HS Code：94054090
• Production Capacity：20000

Basic Info.

Model NO. MB-FS2-CC-140/20 Light Source SMD2835 LED Quantity Per Meter 140 PCB Width 15mm CRI 80+/90+ Transport Package 5m/Reel Specification CE, RoHS Trademark Maxblue Origin Shenzhen, China HS Code 94054090 Production Capacity 20000

Product Description

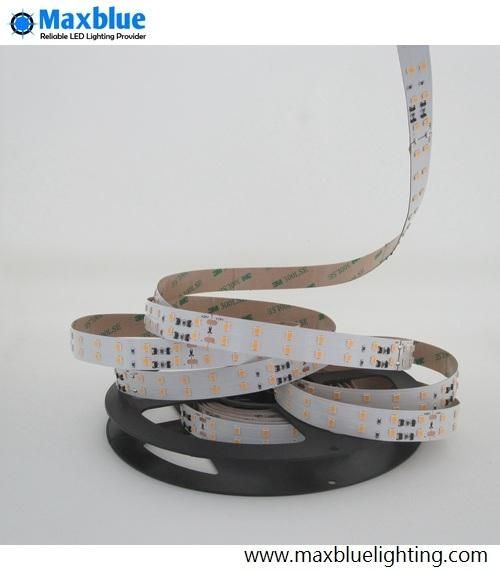

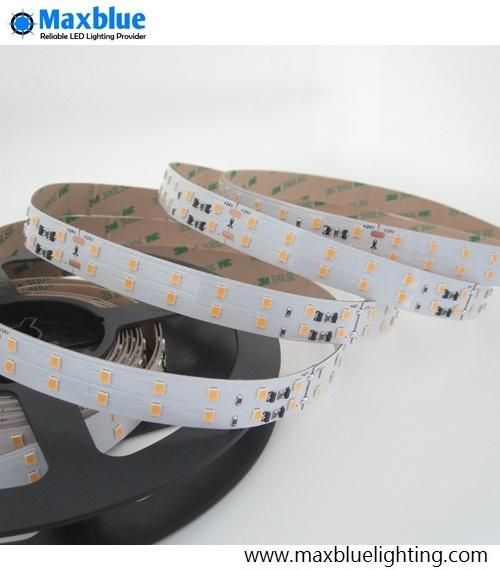

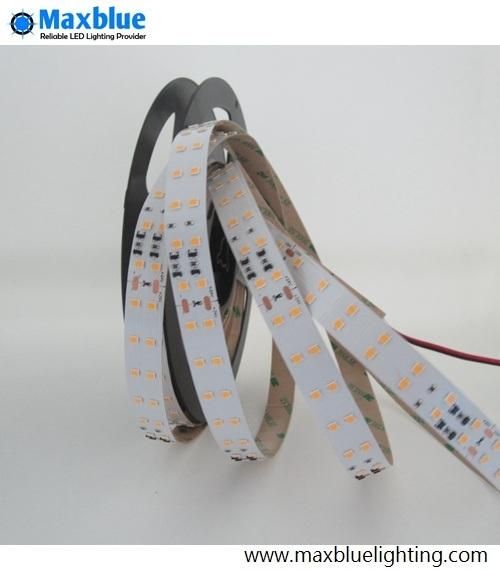

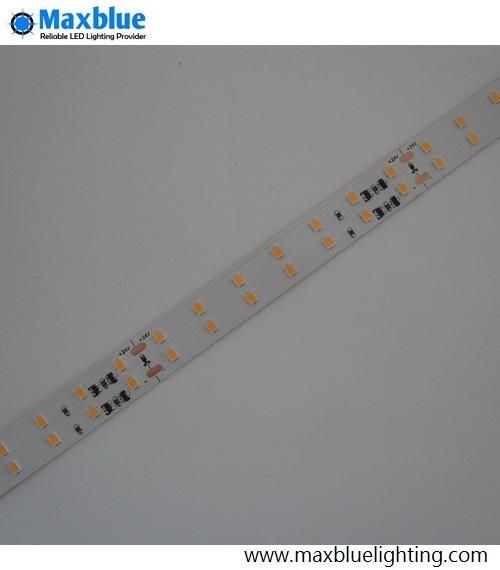

Double Row 15mm 140leds/m SMD2835 CC LED Ribbon Tape

Constant Current LED Strip Features:
-Single color flexible LED strip with self-adhesive backing
-Constant current regulating circuitry for superior performance
-Cuttable every 14 LEDs at designated cut marks; cut sections may be linked by directly -soldering wires
-Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
-Eco-friendly - uses very little energy, without harmful radiations

Constant Current LED Strip Specification:
* Model No.: MB-FS2CCD-140/20
* LED Quantity/Type: 700xSMD2835
* Input Voltage: 22-27VDC
* Power: max.24W/M
* Available Color Temperatures: Neutral White 4100-4500K | Warm White 2800-3100K | 6000-6500K
* Output lumen: 22-24lm/led
* Beam Angle: 115°
* CRI: >80Ra
* Operating Temperature: -25~60ºC
* Strip Width: 15mm
* Length: 16.4ft (5m)
* PCB Color: White
* Compliance: CE, RoHS
* IP Rating: IP33
* Wire Leads: 20AWG


led type	2835 smd led
led quantity	140leds/m
voltage	max. 24W/M
PCb width	15mm
CRI	80+/90+

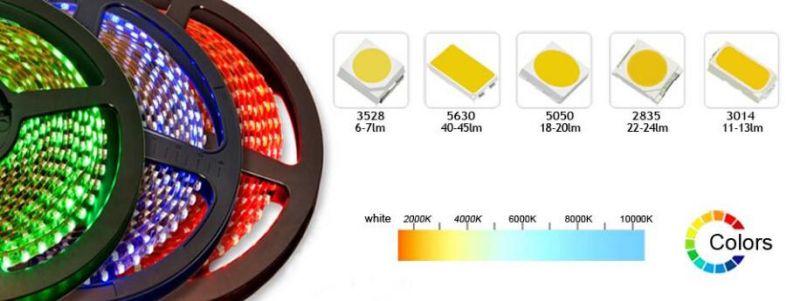

Flexible led Strip range:

--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
                            RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip:  3528 120/240 leds/m, 5050 60leds/m, 2835     112leds/m; 3014 224leds/m; 5630 112leds/m.
--digital strips
--110V/220V led strips

different length, different voltage, different led quantity can be customized/tailored

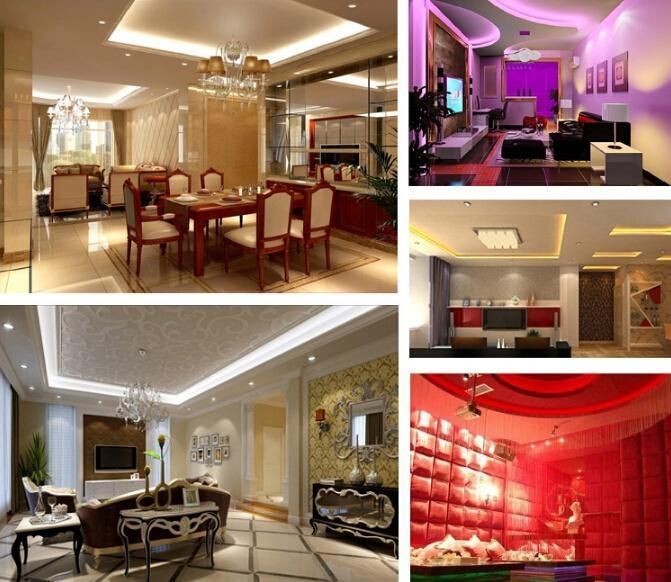

Application:

a. Indoor and outdoor decoration lightings.
b. Large scale backlight.
c. Window display lighting.
d. Building contour decorative lighting.
e. Advertising Signs, light boxes.
f. Landscape outlines.
g. Car and motorcycle decorative lighting.
h. Bridge edge lighting.
i. Architectural decorative lighting.
j. Emergency hallway lighting.
k. Festival lighting, like Christmas.


FAQ:
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: maxblue.en.made-in-china.com

Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.

Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.

Q4: What is warranty time for your products? If any broken, what I will do?
3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.

Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.

Q6: What kinds of payment methods do you accept?
 T/T bank transfer, West Union and Paypal, L/C at sight

Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.

Q8: How to contact us?
Send your inquiry in the below for Price list and more detailed information, hot-selling and discount Now!
