• Model NO.：LM2835-WN120-CCT-24V-10MM
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip：Sanan(Epistar optional)
• PCB Width：10mm
• PCBPCB materia：Double-sided coated pure copper
• PCB thickness：3Oz(front 35um,back 70um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Static-Resistant Bag
• Specification：5meters,Roll
• Trademark：Leomay
• Origin：Zhongshan, China
• HS Code：94054090
• Production Capacity：50000meters,Day

Basic Info.

Model NO. LM2835-WN120-CCT-24V-10MM LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Sanan(Epistar optional) PCB Width 10mm PCBPCB materia Double-sided coated pure copper PCB thickness 3Oz(front 35um,back 70um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package Static-Resistant Bag Specification 5meters/Roll Trademark Leomay Origin Zhongshan, China HS Code 94054090 Production Capacity 50000meters/Day

Product Description

 CCT Dual Color light SMD2835 120LEDs/m LED Strip for Mirror or House Decoration


Product Parameter

Model No.	LM2835-WN120-24V-CCT
PCB Width	10MM
LED Qty/m	120leds/m 2835
PCB materials	3Oz Double-sided coated pure copper
Voltage(V)	24V DC
Rated Power(W)	14.4W/M, 72W/5M
Luminous(lm/m)	1640lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	CCT, W+WW
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	6 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Details Images

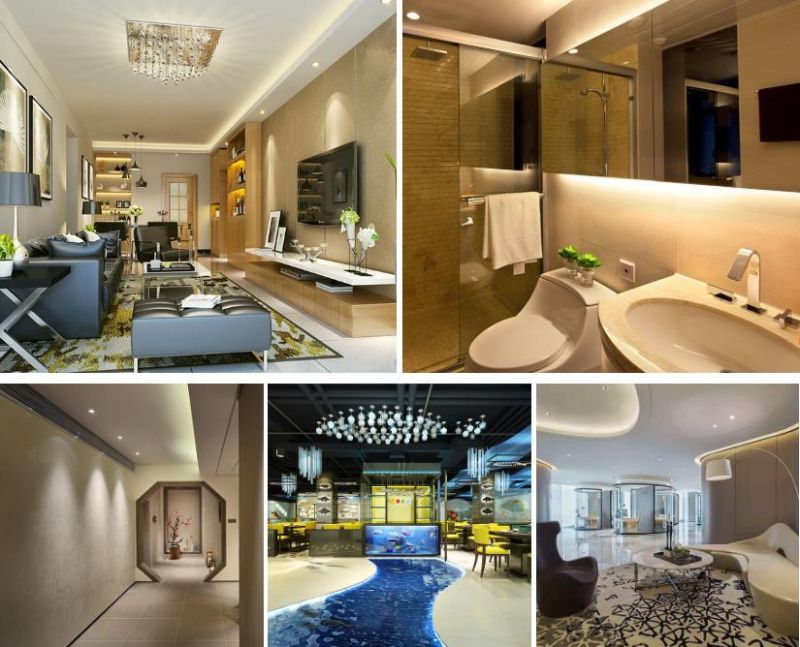

Application

This product can be used for :

1.Decorate living room, bedroom
2.Hotel, restaurant, art gallery, museum
3.Window display lighting, mirror decoration
4.Office building, large scale backlight
5.Indoor and outdoor lighting and for festival decoration



Our Services

1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.




Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.




Recommend Products



Company Profile





Our Advantages

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Eergy saving and environmental conservation, long lifespan.
