• Model NO.：LM2835-WN120-5MM-24V
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs BINs：3-Step,5-Step, same BIN for each order
• LEDs material：packaged by 99.99% pure gold wire
• Chip Brand：Sanan(Epistar optional)
• PCB Width：5mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM2835-WN120-5MM-24V LED Supplier Honglitronic/Osram/Samsung LEDs BINs 3-Step/5-Step, same BIN for each order LEDs material packaged by 99.99% pure gold wire Chip Brand Sanan(Epistar optional) PCB Width 5mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

High Quality 5MM LED tape lighting with CE ROHS CETIFICATE

Product Specification:

Model NO	LM2835-WN120-24V-5MM
Product Name	SMD2835 120LEDS/M 5MM LED strips
PCB Width	5MM
LED Qty/m	120leds/m 2835
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	12W/M, 60W/5M
Luminous(lm/m)	3240lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	5*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Product Features:

1, No UV/IR radiation and light source long life-span(>5000 hours).

2, Energy saving and environmental conservation,ECO-friendly,NO mercury

3, Superior color rendering.CRI>80,90,96

4. The color and width of PCB board could be choosed.

5. PCB thickness can be 2oz, 3oz.

6. The voltage can be 5-24V or your requirement.Low voltage ,safety,stability.

7. The LED quantity can be choosed, from 30leds/m to 480leds/m.

8, From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.

9, Reliable SMD Source, super brightness, high CRI,low decay.

10,Easy installation using 3M tape or plastic clip to fix it

11,Strips Can be bent,can be cuttable,can be arbitrarily fixed in the concave surface.

12,Print your logo on the PCB, and do customized packages are acceptable.

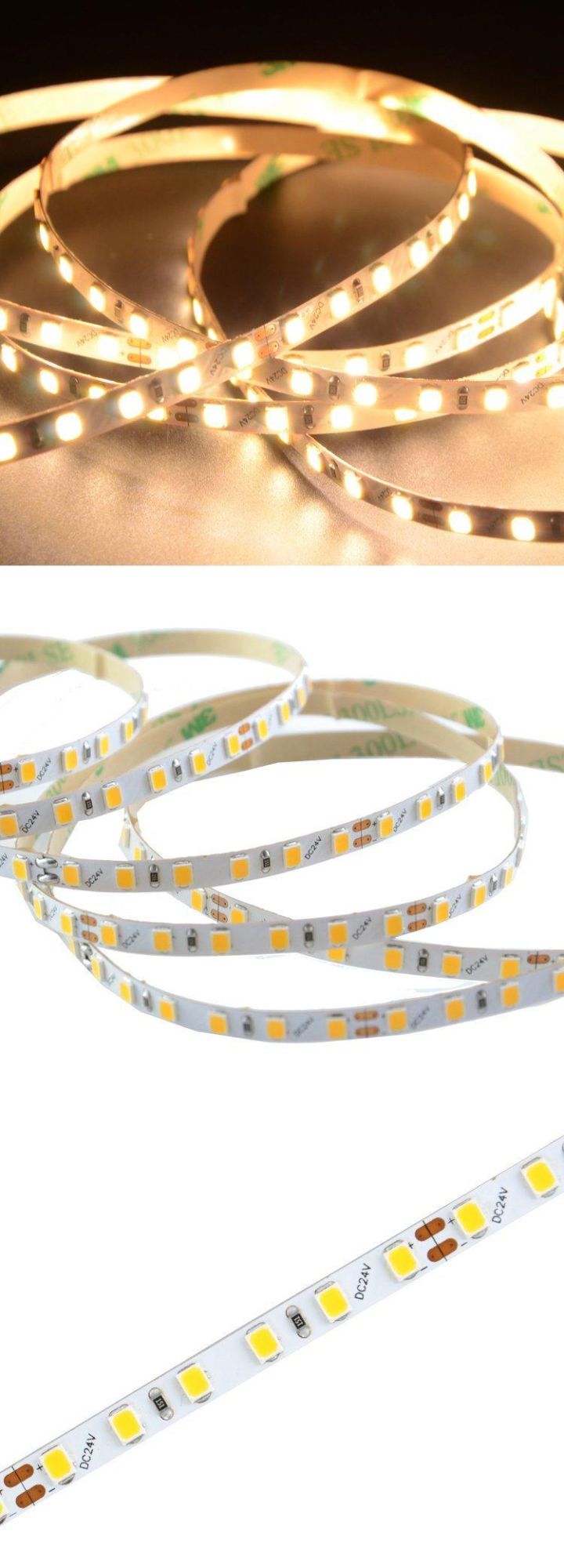

Details Images


Our Services

1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.



Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. 50Rolls led strip in 1 Box
6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.
