• Model NO.：LM3528-WN120-WW-HL
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Static-Resistant Bag
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM3528-WN120-WW-HL LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Static-Resistant Bag Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

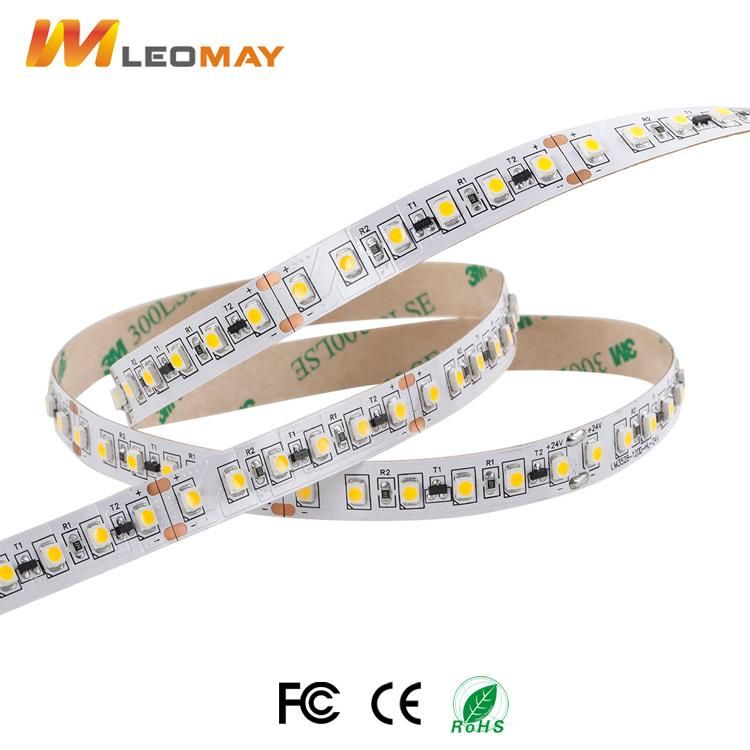

3 Years Warranty 120leds 24V Super Brightness LED Strip Light




Specification:


Model NO	LM3528-WN120-HL-24V-10MM
Product Name	SMD3528  120LEDS/M Constant Current LED strips
PCB Width	10MM
LED Qty/m	120leds/m 3528
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	8W/M, 40W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features:

Super brightness, high intensity and reliability.
Low power consumption.
Long life span over 50, 000 hours.
Fast and simple installation with adhesive back tape
Low maintenance.
Real 3M adhesive tape
IP Rate: IP20/IP65/IP67/IP68

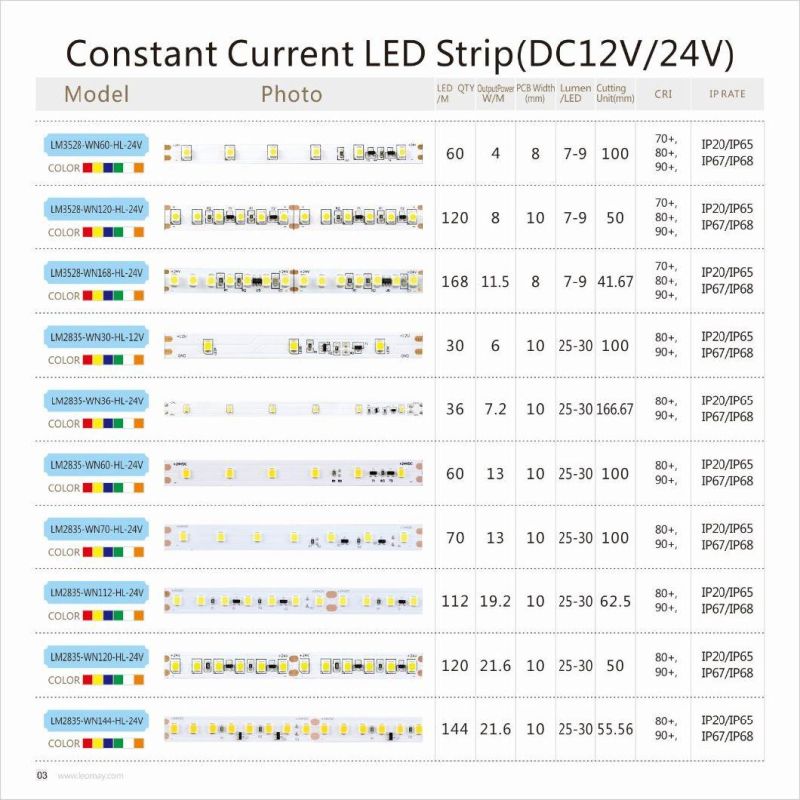

Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB Width	IP Rate	Color
LM3528-WN30-HL	30leds/m	12V/24v	4.8w/m	360lm/m	80	10mm	IP20/65/67/68	W/WW/R/Y/G/B
LM3528-WN60-HL	60leds/m	12V/24v	7.2w/m	720lm/m	80	10mm	IP20/65/67/68	W/WW/R/Y/G/B
LM5050-WN120	120leds/m	12V/24v	24w/m	2400lm/m	80	18mm	IP20/65/67/68	W/WW/R/Y/G/B
LM2835-WN120	120leds/m	24V	24w/m	2880lm/m	80	10mm	IP20/65/67/68	W/WW/R/Y/G/B
LM2835-WN240	240leds/m	24V	48w/m	5660lm/m	80	12mm	IP20/65/67/68	W/WW/R/Y/G/B

Our Services


A. 16.4ft(5Meter) per reel as standard length, different length can be customize.
B. We are Very Honest and Careful factory direct sell the products.
C. Our all customer know: our Connector, Install Cips, Wires, is free with Orders.
D. The Shipping from us, very fast, because when we know the Normal prodcuts you often ordered, we will do stock produce.
E. We can support special customized package for you.
F. We can support complete cut/connection accessories, such as: aluminum profiles,led power supply, Mi.light controller,  connectors, etc.


We are will be Your Cheapest, Fastest, Most Professional and Reliable Suppier.

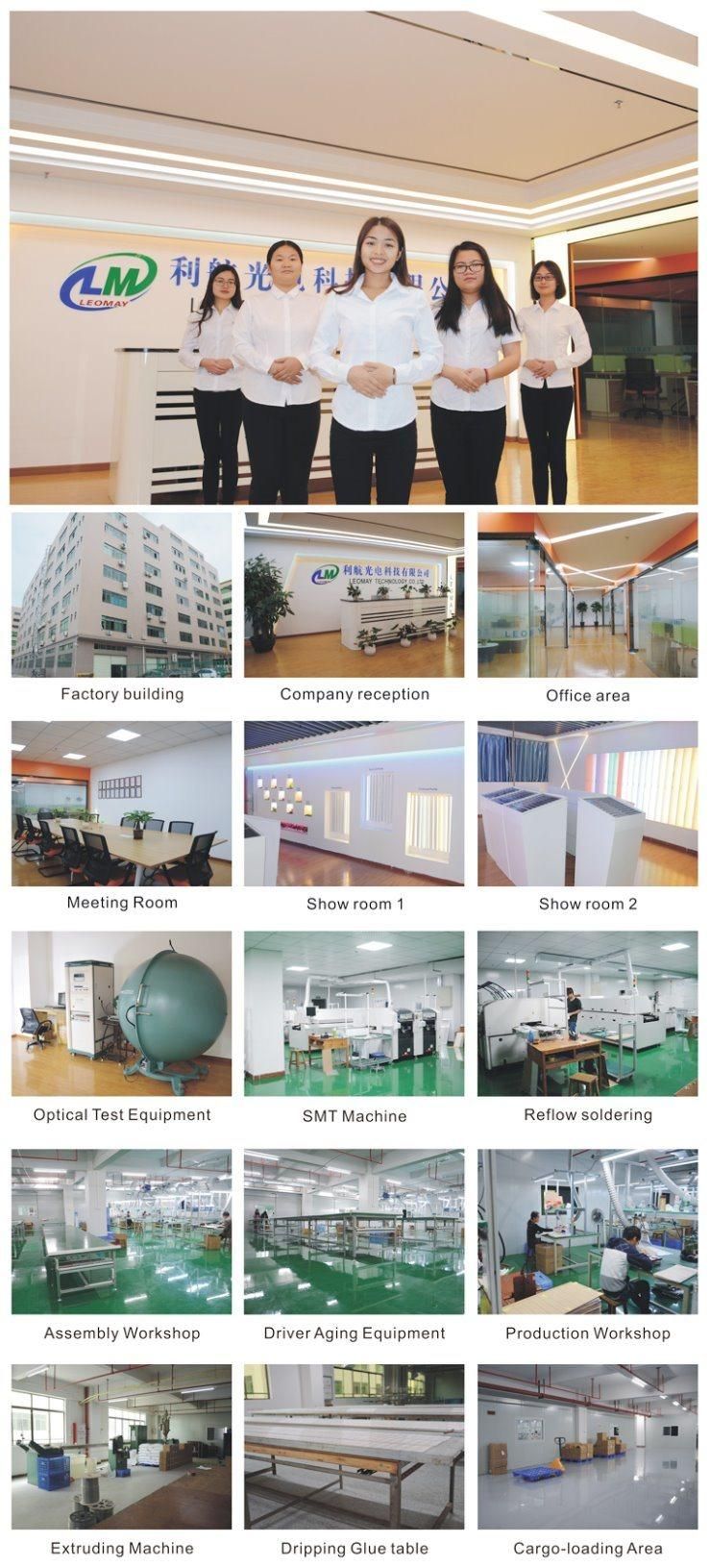

Company Information

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL,CE,FCC,RoHS and SGS,
which is engaged in researching, manufacturing and selling new LED lighting products. Now Leomay products mainly cover LED Strip Light,
LED Rope Light, Aluminum profile, LED Linear Light, LED Panel Light, LED Tube, etc.

Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers',
especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing,
CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.




Trade Shows

The newest products and technologies will be presented in every Leomay's attending exhibition.
Welcome to our 2018 Frankfurt Lighting&buliding Fair, Booth No:Hall10.2,F10C(March 18-23th ,2018)


Certificates:


Frequently Asked Questions:

1) What are the best selling products in Leomay?
- LED Strip
- Aluminum LED Profiles
- Controllers&Remote
- Power Supply
- Connector

2) What is the main market for Leomay?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new Leomay LED technology. We are also optimistic about the markets for other American and Asian regions.

3) What is Leomay lead time for LED Strip?
Usually we ship orders in 7-15 Days. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

4) Can Leomay do custom assembly or offer OEM product?
Leomay has gained a lot of experience on OEM assembly of LED strip lighting. The LED strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.

5) Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Leomay engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

6) How to buy Leomay products?
In most case we sell directly to customers worldwide, also we have already set up Alibaba Chanels,you can directly click "Contact Us" in the below to email us or make a call.We will respond with quick service maximum within 12 hours.
