180 Degree Big View Angle High Bright COB 24V 3000K 4000K 6000K Flexible LED Strip Light
MSS LED Lighting Co., Ltd.- Certification:LVD, UL, EMC, RoHS, CE
- Power:10W,M
- Emitting Color:White3000K-7000K
- Voltage:DC24V
- IP Rating:IP33
- Macadam Level:3~5 Step
Base Info
- Model NO.:LED Strip Light
- Max.Length:5m,Roll LED Strip
- Warranty:3 Years
- LED Type:COB,Fob
- PCB Width:8mm or 10mm or 12mm LED Strip
- Transport Package:Anti-Static Package
- Specification:5000*8mm LED Strip
- Trademark:MSS LED,OEM,ODM
- Origin:China
- HS Code:9405409000
- Production Capacity:60, 000m,Month
Description
Basic Info.
Model NO. LED Strip Light Max.Length 5m/Roll LED Strip Warranty 3 Years LED Type COB/Fob PCB Width 8mm or 10mm or 12mm LED Strip Transport Package Anti-Static Package Specification 5000*8mm LED Strip Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 60, 000m/MonthProduct Description

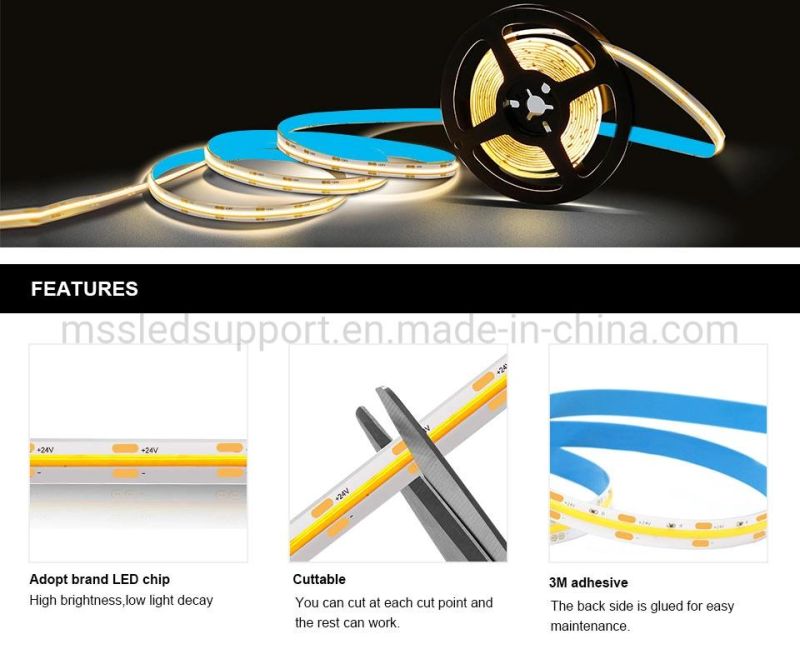

180 degree big view angle high bright COB 24v 3000k 4000k 6000k flexible led strip lightFeatures

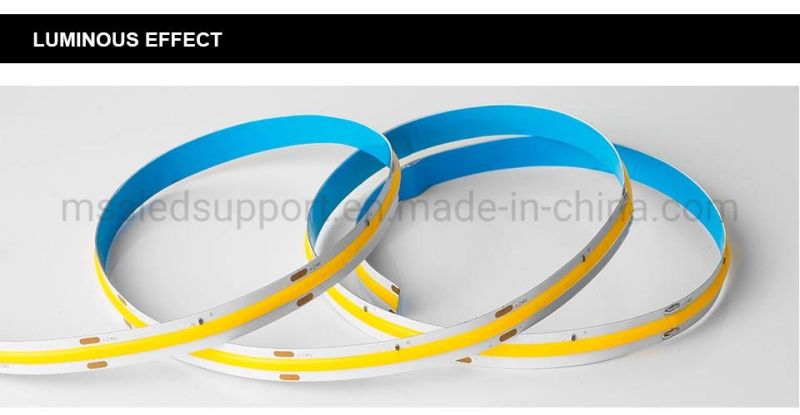

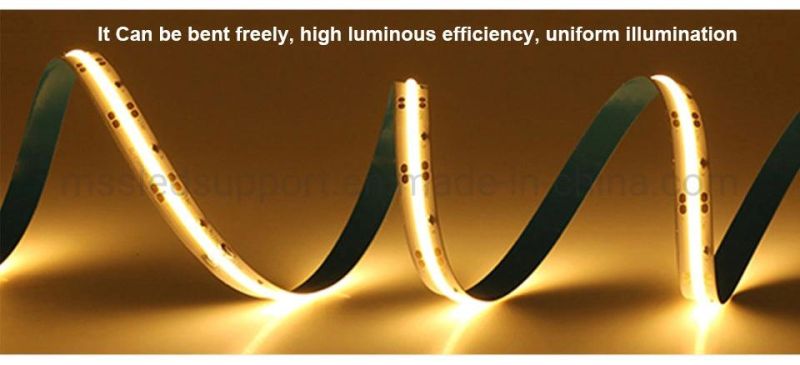

1. No light spots, no shadows, soft light.
2. The illumination angle can be up to 180°
4. Available Size: 5-10mtrs per roll
5. Antistatic rating (MIL-STD-883E): HBM 2 (2000~4000V)
6. Suitable for regular led strip installation way, this product no harmful substances and meets RoHS environmental protection standards.

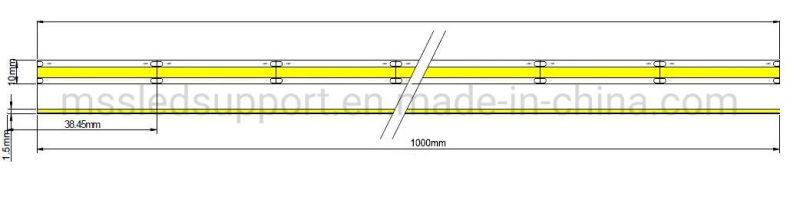

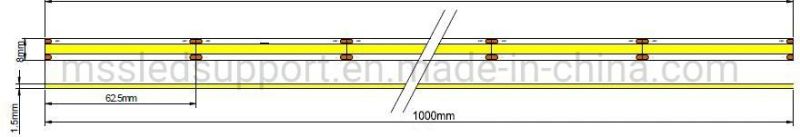

Dimension
Product parameters
Dimension | Input | Chips Qty | Resistor Qty | Watts | FPCB | Lumens | CCT | Ra |
1000*8mm | 24V DC | 512 | 24 | 10W±0.5 | 35um+35um | 120lm/W±10% | 2700/3000K /4000K/6500 | ≥90 |
1000*8mm | 24V DC | 546 | 52 | 16W±0.5 | 35um+70um | 105lm/W±10% | 2700/3000K /4000K/6500 | ≥90 |
Application

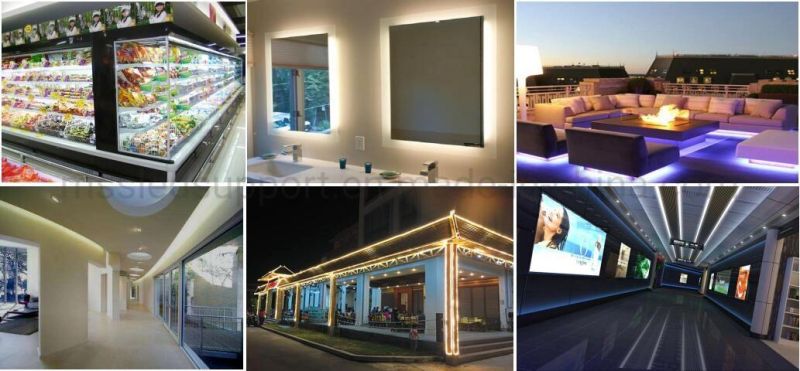

Decorative lighting, signage, advertising signs, booths, etc.
