• Model NO.：LM3528-WN120-CCT-24V 8MM
• LEDs Suppliers：Honglitronic,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Statie-Resistant Bag
• Specification：8*5000mm
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：940540900
• Production Capacity：10000meters,Day

Basic Info.

Model NO. LM3528-WN120-CCT-24V 8MM LEDs Suppliers Honglitronic/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 8*5000mm Trademark LEOMAY Origin Guangdong, China HS Code 940540900 Production Capacity 10000meters/Day

Product Description

Product Parameters

Stable Performance SMD3528 120leds/m CCT Adjustable 24V LED STRIP with CE, RoSH, UL, ISO9001 Certification

Model NO	LM3528-WN120-CCT-24V-8MM
Product Name	SMD3528 120LEDS/M CCT LED strips
PCB Width	8MM
LED Qty/m	120leds/m 3528
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	4.8W/M, 24W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

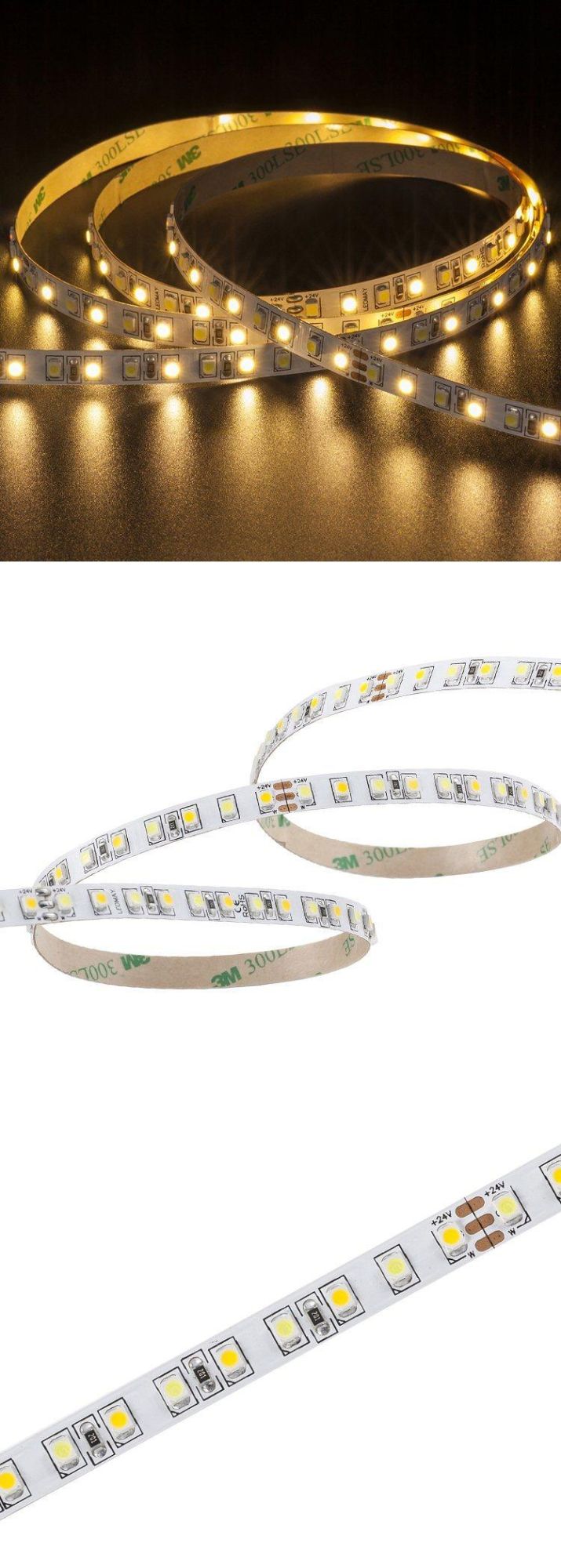

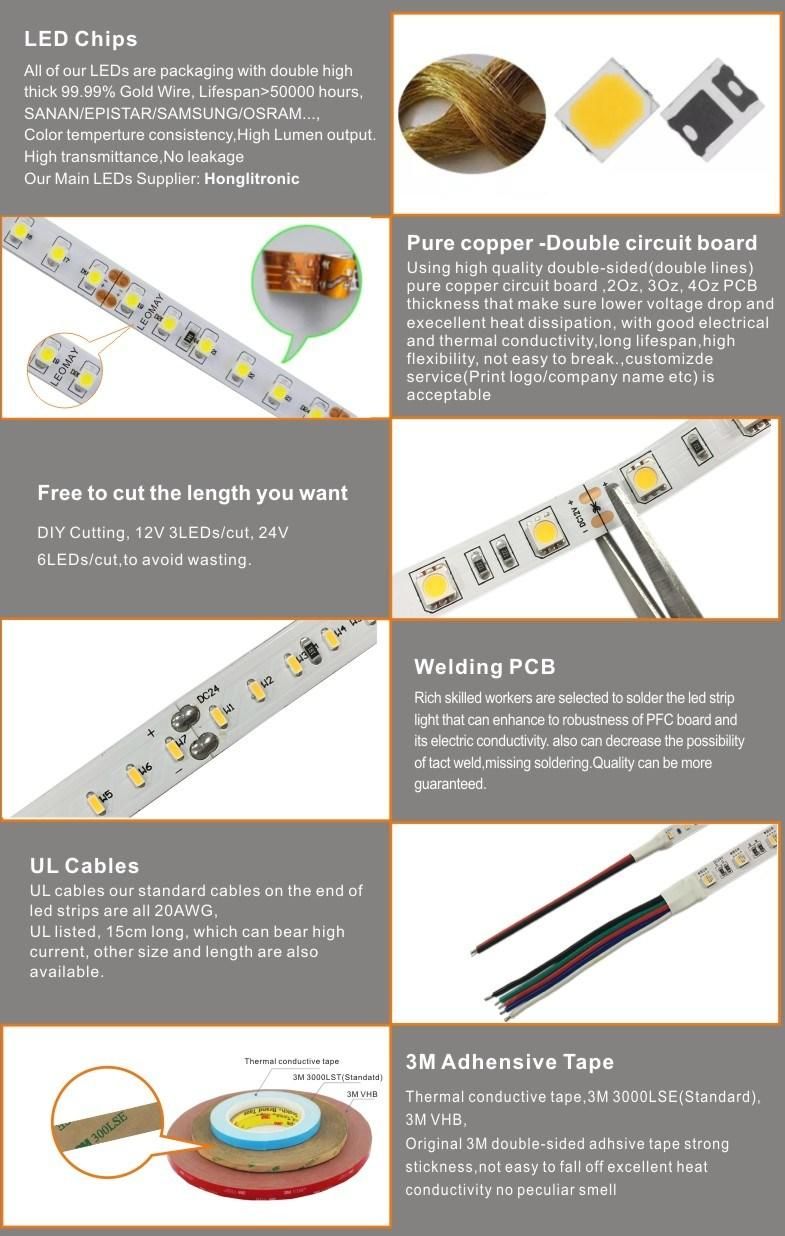

Details Images



Our Services

1. We can help all our customer in in staling, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We will be your most professional and cheapest, fastest supplier.

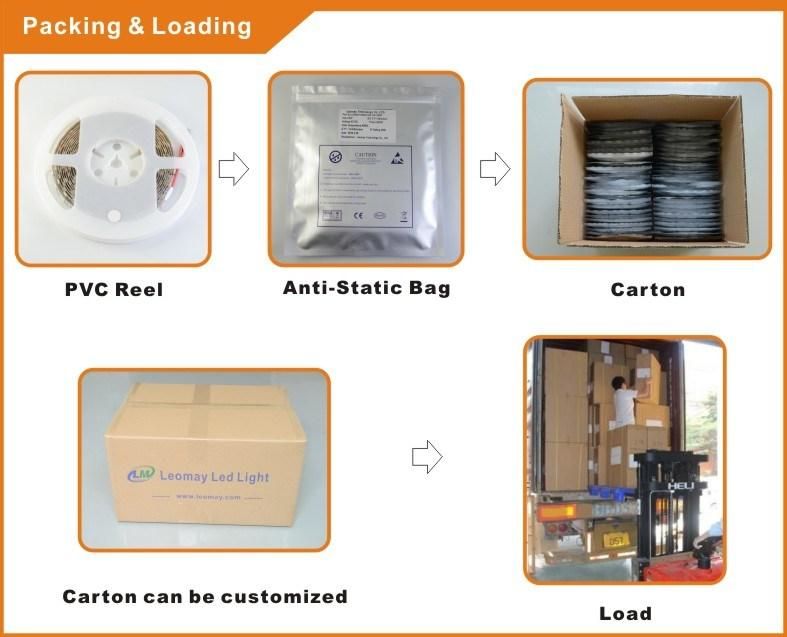

Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. 50Rolls led strip in 1 Box
6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.

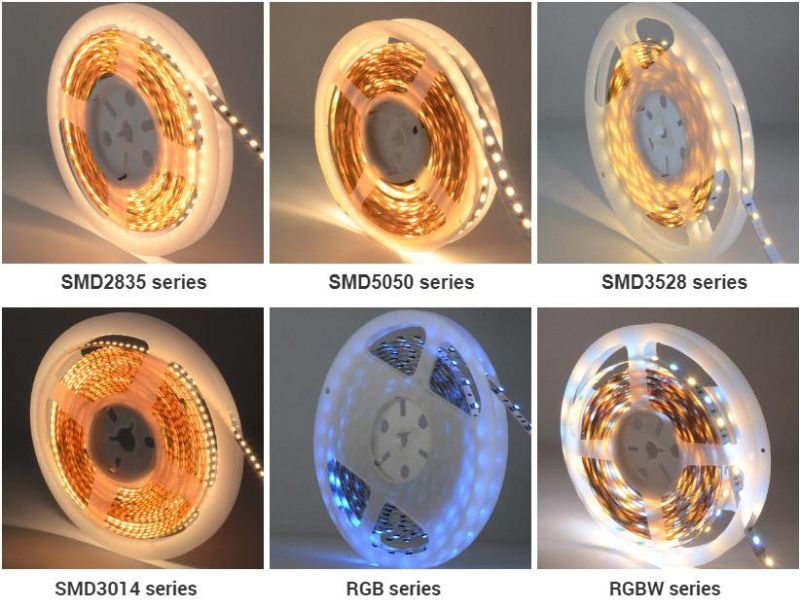

Recommend Products

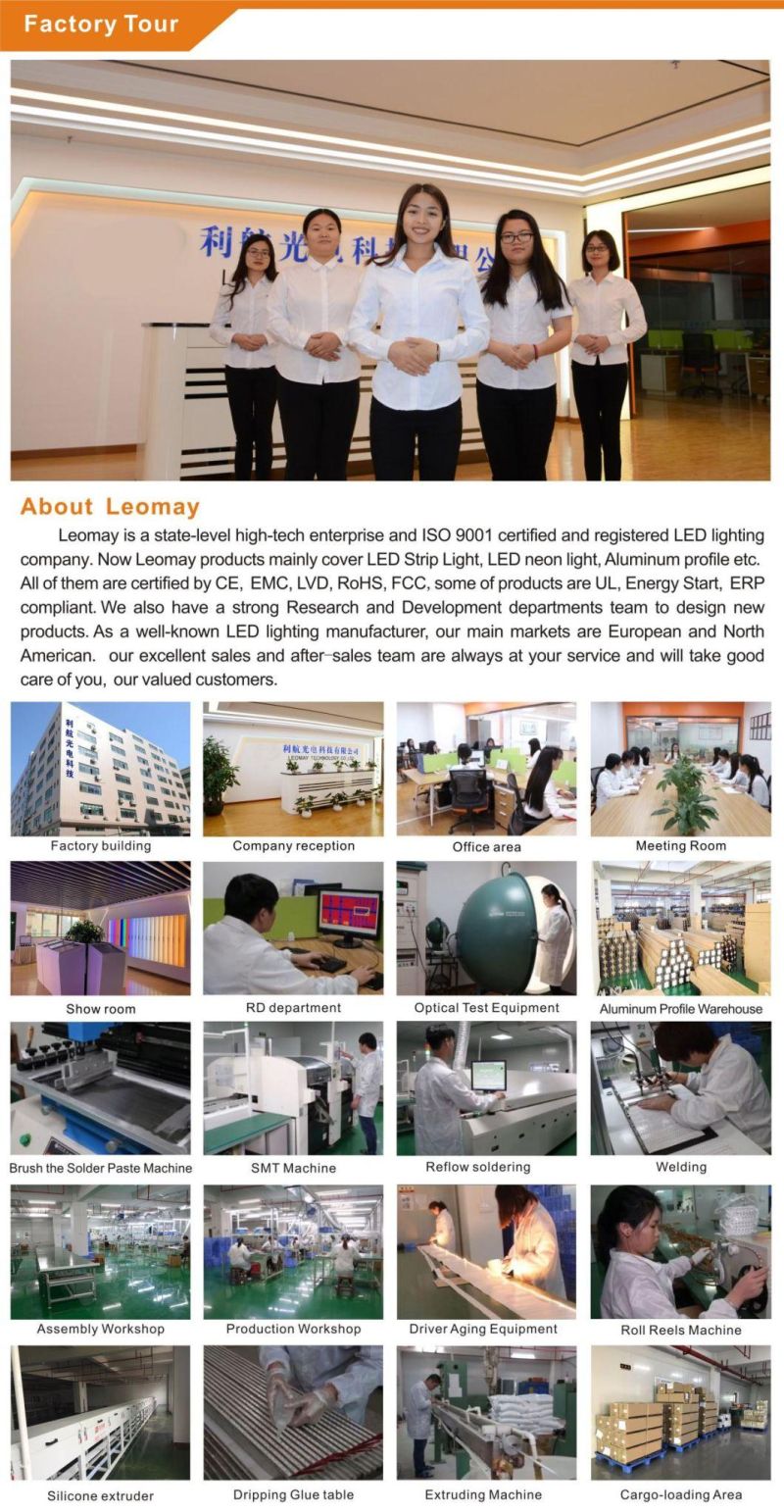

Company Profile



Our Advantages

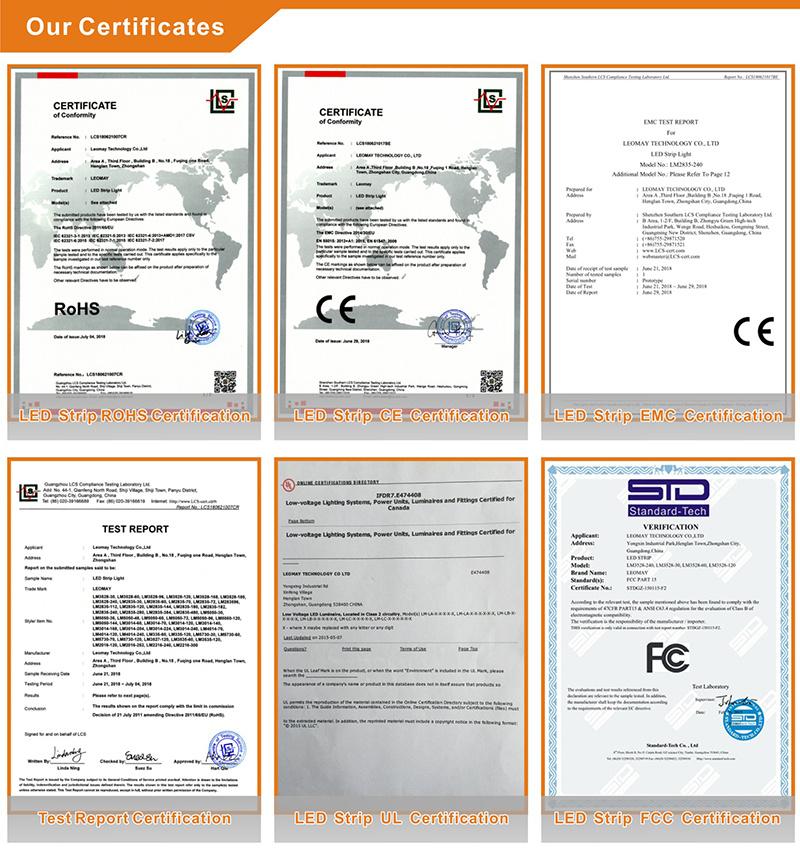

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
