• Model NO.：LM5050-WN60-RGBWW-12V
• LEDs Suppliers：Honglitronic,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：12mm
• PCB material：Double-sided coated pure copper
• PCB thickness：3Oz (front 35um,back 70um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll
• Specification：CE, RoHs, FCC, UL
• Trademark：Leomay
• Origin：Guangdong Zhongshan
• HS Code：940540900
• Production Capacity：50000meter,Month

Basic Info.

Model NO. LM5050-WN60-RGBWW-12V LEDs Suppliers Honglitronic/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 12mm PCB material Double-sided coated pure copper PCB thickness 3Oz (front 35um,back 70um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll Specification CE, RoHs, FCC, UL Trademark Leomay Origin Guangdong Zhongshan HS Code 940540900 Production Capacity 50000meter/Month

Product Description

SMD LED Strip 5050 with Ce&RoHS

Product Paramenters


Product No.	LM5050-WN60-RGBWW-12V
LED Qty	60leds/m
Voltage(V)	12V DC
Power(W)	14.4W/M
Color	RGBWW
PCB Width(mm)	12mm
PCB Base	White PCB
CCT	2600-3200K, 4000-6500K, 9000-11000K
LED Chip Brand	Sanan, Samsug, Osram, Epistar optional
LED Supplier	Honglitronic
View Angle	120°
Cutting Unit	6leds/cut
Length(m)	5m(16.4ft)/roll, accept customized length
IP Rate	IP20/IP65/IP67/IP68

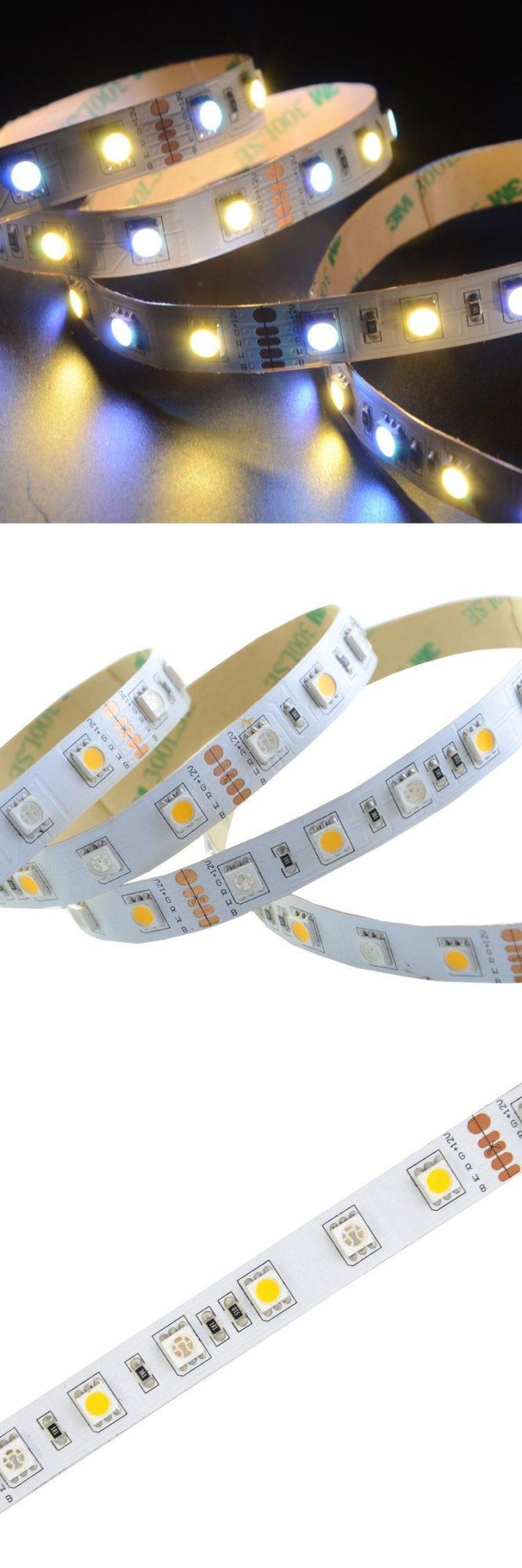

Details Images

Product Features:

1, No UV/IR radiation and light source long life-span(>5000 hours).

2, Energy saving and environmental conservation,ECO-friendly,NO mercury

3, Superior color rendering.CRI>80,90,96

4. The color and width of PCB board could be choosed.

5. PCB thickness can be 2oz, 3oz.

6. The voltage can be 5-24V or your requirement.Low voltage ,safety,stability.

7. The LED quantity can be choosed, from 30leds/m to 480leds/m.

8, From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.

9, Reliable SMD Source, super brightness, high CRI,low decay.

10,Easy installation using 3M tape or plastic clip to fix it

11,Strips Can be bent,can be cuttable,can be arbitrarily fixed in the concave surface.

12,Print your logo on the PCB, and do customized packages are acceptable.

Our Services

1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.





Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. 50Rolls led strip in 1 Box
6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.





Recommend Products




Company Profile




Our Advantages

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Eergy saving and environmental conservation, long lifespan.
