SMD2835 36LEDs, 24V, environmental conservation LED STRIPS.
Leomay Technology Co., Ltd.- Certification：FCC, LVD, UL, EMC, RoHS, CE
- Power：7.2W,M
- Emitting Color：White
- Voltage：24V
- IP Rating：IP20
- LED Qty/m：36LEDs,m 2835
Base Info
- Model NO.：LM2835-WN36-24V-HL-10MM
- LEDs Suppliers：Honglitronic,Osram,Samsung
- LEDs material：packaged by 99.99% pure gold wire
- LED BINs：3-Step,5-Step, same BIN for each order
- LED Chip Brand：Sanan(Epistar optional)
- PCB Width：10mm
- PCB material：Double-sided coated pure copper
- PCB thickness：2Oz (front 35um,back 35um)
- Adhesive Tape：9495 3000LSE 3M tape
- IP Grade：IP20,IP60,IP65,IP68
- Transport Package：5m,Roll
- Specification：CE, RoHs, FCC
- Trademark：Leomay
- Origin：China
- HS Code：940540900
- Production Capacity：50000meter,Month
Description
Basic Info.
Model NO. LM2835-WN36-24V-HL-10MM LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll Specification CE, RoHs, FCC Trademark Leomay Origin China HS Code 940540900 Production Capacity 50000meter/MonthProduct Description

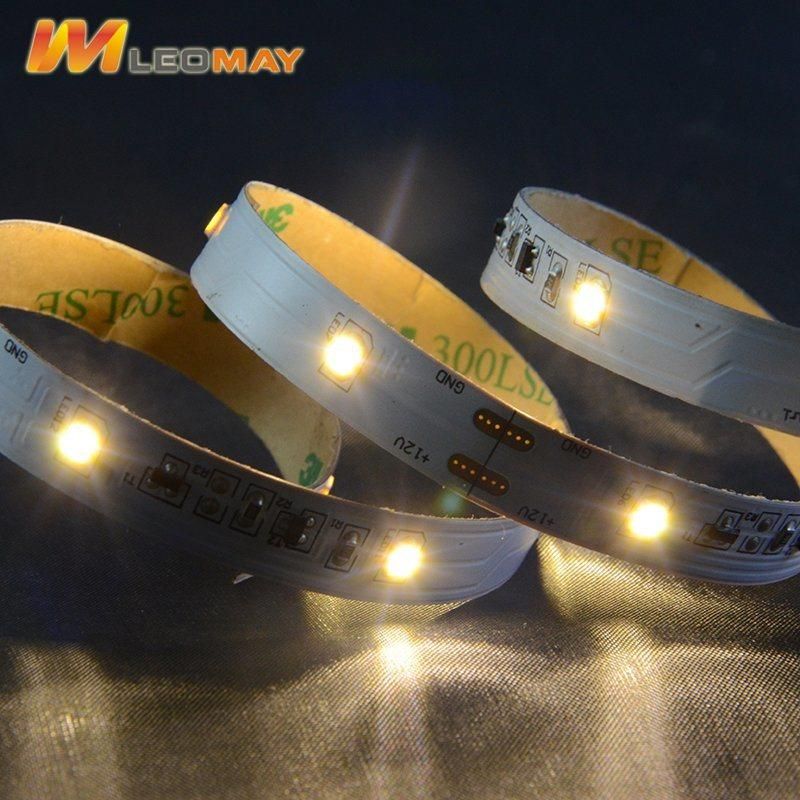

SMD2835 36LEDs, 24V, environmental conservation LED STRIPS
2835LED Constant Current Light Bar with RoHS Mark
Model NO | LM2835-WN36-HL-24V-10MM |
Product Name | SMD2835 36LEDS/M Constant Current LED strips |
PCB Width | 10MM |
LED Qty/m | 36leds/m 2835 |
PCB Materials | 2Oz Double-sided coated pure copper(can print your logo on PCB) |
Voltage(V) | 24V DC |
Rated Power(W) | 7.2W/M,36W/5M |
Luminous(lm/m) | 972lm/m |
LED Chip Brand | Sanan(Epistar optional) |
LEDs material | packaged by 99.99% pure gold wire |
LED BINs | 3-Step/5-Step, same BIN for each order |
LEDs Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |
IP Rate | IP20 (IP54/IP67/IP68 optional) |
View Angle | 120 |
Product Size(mm) | 10*5000mm |
Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL,CE,Rohs,FCC. |
Warranty | 3 Years |
