• Voltage：12V
• IP Rating：IP33
• Type：LED Light Bar
• Guarantee：3 Years
• Light Source：SMD 3030
• Luminous Flux：90-100lm
• Lead Time：5-7days 10000PCS
• Transport Package：Carton Box
• Specification：300pcs 110*21*21mm 500pcs110*25*26mm
• Trademark：MSS LED,OEM,ODM
• Origin：Shenzhen, China
• HS Code：9405990000
• Production Capacity：1, 000, 000PCS,Month
• Package size per unit product：1.00cm * 1.00cm * 1.00cm
• Gross weight per unit product：1.000kg

Basic Info.

Voltage 12V IP Rating IP33 Type LED Light Bar Guarantee 3 Years Light Source SMD 3030 Luminous Flux 90-100lm Lead Time 5-7days 10000PCS Transport Package Carton Box Specification 300pcs 110*21*21mm 500pcs110*25*26mm Trademark MSS LED/OEM/ODM Origin Shenzhen, China HS Code 9405990000 Production Capacity 1, 000, 000PCS/Month

Packaging & Delivery

Package size per unit product 1.00cm * 1.00cm * 1.00cm Gross weight per unit product 1.000kg

Product Description

175 Optical lens diffusion LED bar strip 12W 14W 12LEDS Rigid LED Strip for Advertising Light Box

Features
1.Cuttable 1Leds per unit, cut along cut-edge,And easy to connect by relevant connectors

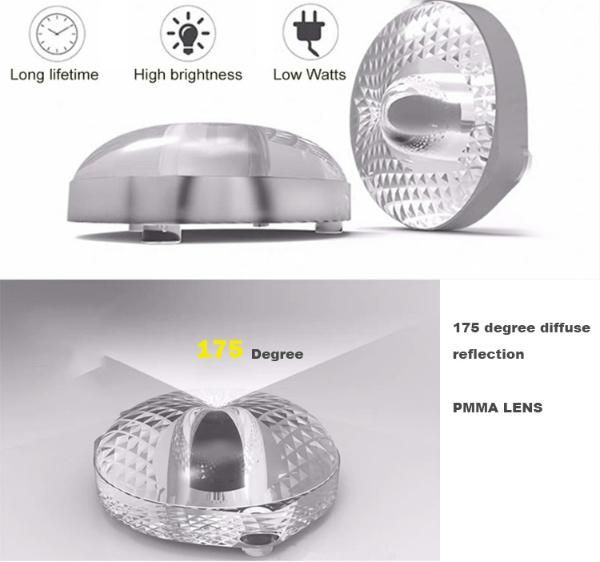

2. Optical lens 175degree, Same distance between every two leds, keeping the light even
3. Dimmable Brightness and changeable color as you like
4. 5-10cm cable between led strips, long cable to power supply on the end per roll
5. Small size, easy to used in narrow place
6. Indoor and ourdoor light
7.Safe application at DC12V/DC24V
8.Long life span of 5000hours
9.Average light distribution,No flickering,No humming



Specification

Product name	170 degrees lens diffusion LED bar strip
Product type	Diffuse Reflection
IP Grade	IP20/Waterproof IP64 drop-glue with PC cover
Input Voltage(V)	DC 12V
Warranty(Year)	3-Year
Type	LED Modules
Support Dimmer	NO
Lighting solutions service	Lighting and circuitry design, Project Installation
Luminous Efficacy(lm/w)	90-100
Lifespan (hours)	50000
Working Time (hours)	30000
Chip Material	AlGaInP
Emitting Color	Natural White/Warm white/Cold white
Power	12W
Viewing Angle(°)	170°
CRI	80
Color Temperature	6500-15000K
Bar distance	10-20cm
Place of Origin	China
Province	Guangdong
Brand Name	MSS
Certification	CE, RoHS
LED type	3030
LED QTY	12LED/M
Material	Aluminum
Size	950*17*1.0mm 20pcs one roll

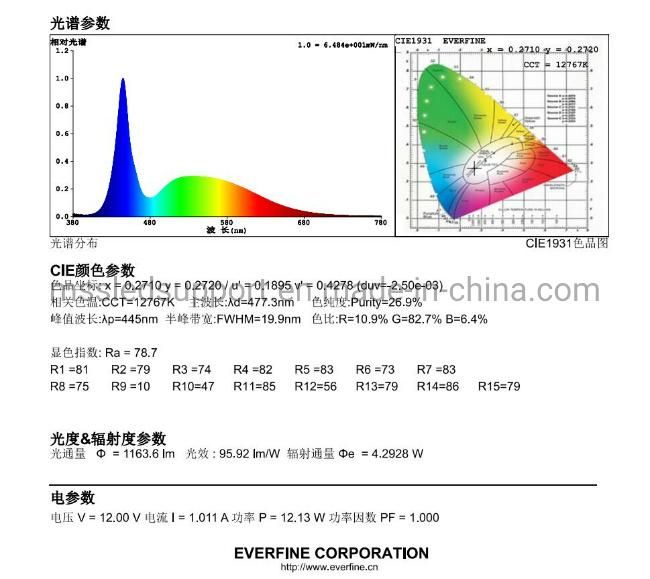

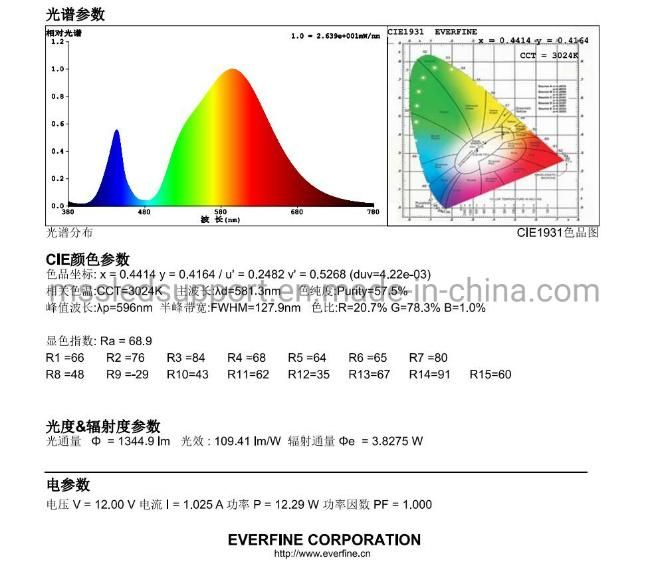

LUMINAIRE PHOTOMETRIC TEST REPORT:

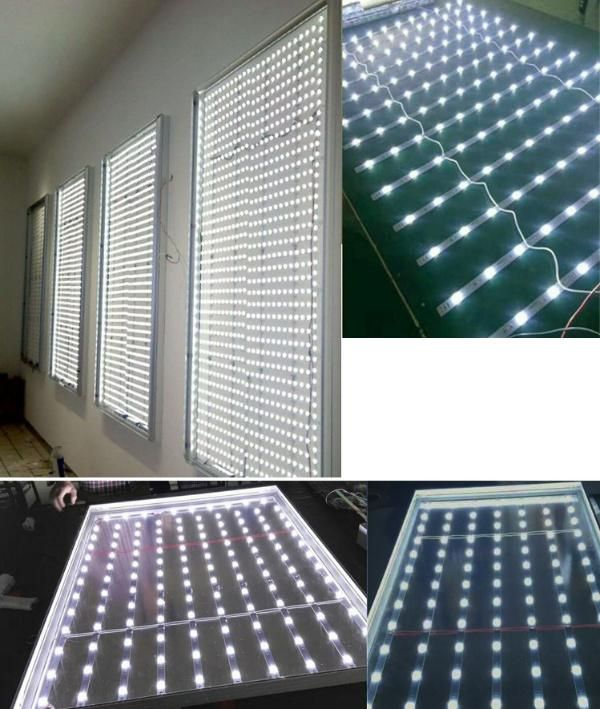

Application:
Advertising light box etc.
