• Model NO.：LM5050-WN30-RGB-2811-12V
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Statie-Resistant Bag
• Specification：5000*10mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM5050-WN30-RGB-2811-12V LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 5000*10mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

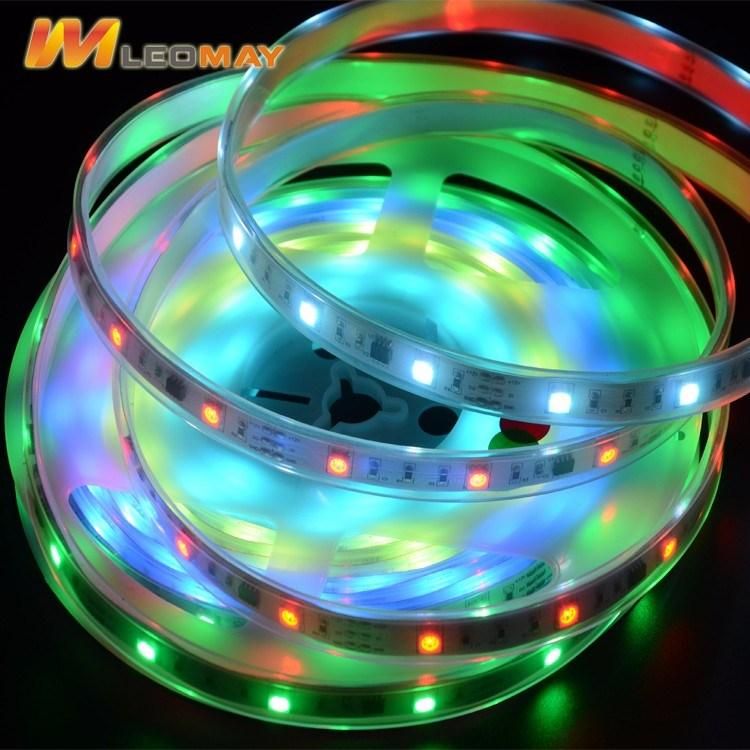

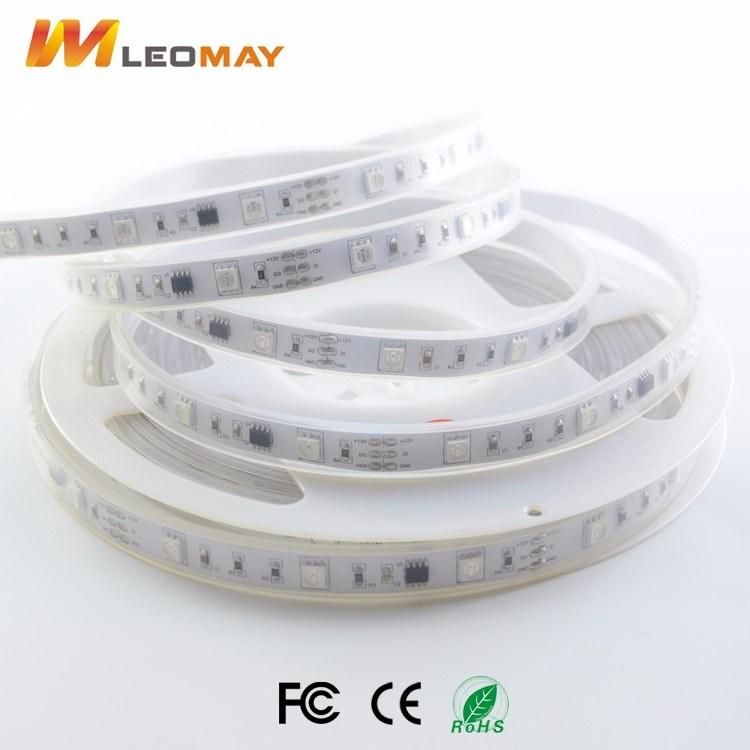

WS2811 Magic Color 30/48/60leds/m DC12V Digital RGB Addressable Led Strip with CE ROHS FCC Certification


Product Specification:

Model NO	LM5050-WN30-2811-12V-10MM
Product Name	SMD5050 30LEDS/M MagicLED strips
PCB Width	10MM
LED Qty/m	30leds/m 5050
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	7.2W/M,36W/5M
Luminous(lm/m)	/
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	RGBY
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features

a. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.

b. Reliable SMD Source, Epistar. SMD 3528, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.

c. Operating low voltage (DC12V, DC24V) for human safety.

d. Energy saving and environmental conservation, long lifespan.



Our services

We can help All our Customer in Instaling, Design, and Accessory Free.

Our all customer know: our Connector, Install Cips, Wires, is free with Orders.

Any questions when using , we always fast replys with the professional methods.

the Shipping from us, very fast, because when we know the Normal prodcuts you often ordered.

we will do stock produce.

We are Very Honest and Careful factory direct sell the products.

So All products is tested very good and Packing very strong.

We are will be Your Most professional And cheapest, Fastest Suppier
      Cetrifications




  Company Information

About Leomay

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting

products.

Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are

certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.


 FAQ

Q1: What is the Warranty for the LED strip?

A1: For the led strips, we have 2 years warranty. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.


Q2: What is colour temperature?

A2: Perfect-LED's LED Lighting offer LED strips in warm, natural, pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is, the warmer the

light given by the LED:

Warm white = 2700K-3000K

Natural white = 4000K-4500K

Pure white = 6000K-6500K

Cool white = 9000K-17000K


Q3: What is CRI?

A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost. For LED strips ,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers

write a high data to attract clients,please note.


Q4: What is the DC Voltage tolerance for our LED strips?

A4: The DC voltage tolerance is +/- 10%.


Q5: Do your LED strips emit UV light?

A5: No. But you should never point an LED light into your eyes. The light is very bright and could cause damage.


Q6:Is there cheap shipping cost to import to our country?

A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?

A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
