30LEDs/M DC24V 12V Silicone Waterproof IP68 Strip Light Single Color LED Flexible Strip
TOPLEDVISION PHOTONICS CO LIMITED- Certification：FCC, RoHS, CE, TUV,En62471
- Power：7.2watt,M
- Emitting Color：Ww,Nw,Cw,R,G,B,Y,P
- Voltage：12V,24V DC
- IP Rating：IP20,IP65,IP67,IP68
- Type：Flexible LED Strip
Base Info
- Model NO.：TLV-FS5050Q30W
- LED Source：High Quality SMD5050
- LED：3chips SMD5050 18-20lm,20-22lm
- Model：Tlv-Fs5050q30W-7.2W
- PCB：Electrolytic Copper Double-Sided Circuit Board
- LED Quantity：30LEDs,M
- Watt：7.2W,M
- Lumen：500-600lm,M
- Color：3000K,4000K,6000K
- Size：5000*10mm
- Working Life：30000h
- Certifications：TUV,CE,FCC,IEC,En62471,Lm-80
- Warranty：2years
- Packing：5mts,Reel, Gift Box Packing or Anti-Static Bag

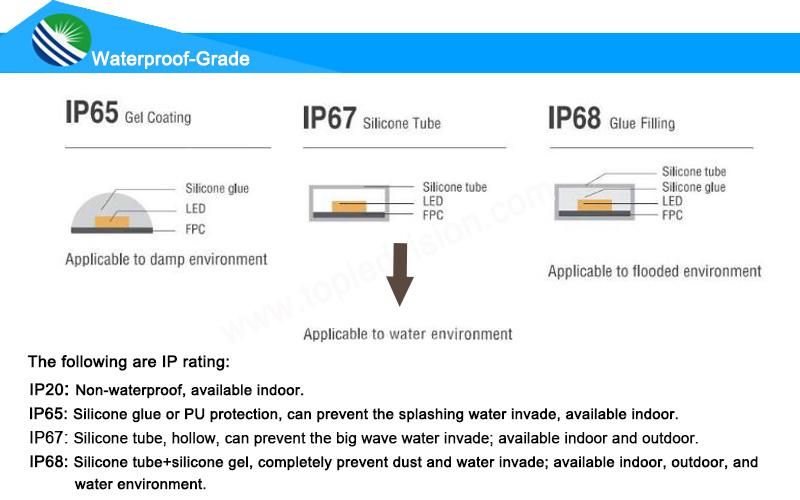

- Protect Grade：IP20, IP65(Glue Protection , Nano Coating), IP68
- Transport Package：5mts,Reel 100reel,Carton
- Specification：5000x10x 1.8mm
- Trademark：topledvision
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
Certifications: TUV CE, FCC, IEC/EN62471Brand SMD LED and PCB:
-SMD LED Strip were compliant with TUV CE.-The Color Tolerance Adjustment is less than 6, in line with the EU standard Color Tolerance Adjustment.
-SMD LED are stored in a constant temperature and humidity storage cabinet.
-A stable material supplier, the color temperature of each batch is consistent.
-Short delivery time.
High bright, low power consumption, and 3chips led
a, Use quality 3chips smd5050 led as light source with 20-22lm/led and low lumen decline.
b, white, red, green, blue, orange, yellow, purple, RGB color option, CRI>75Ra.
c, 100-120lm/w luminous efficiency is 2time at least than the traditional neon light.
Good reliability, flexible, strip length can be cut
a, Every 6leds of 24V 5050 strip as min unit design, each unit work separately with high reliability.
b, White color flexible printed circuit board made by rolled copper material which is flexible and not easy to break.
c, Led strip can be cut or connected by 3leds min unit.
Support dimming
Different color led strip be controlled by diferent controller, normally, 5050 white color led strip be dimmable by dimmer.
Cost-effective and easy installation
a, Led strip is large mechanized production, it is economical and affordable.
b, Easy installing way

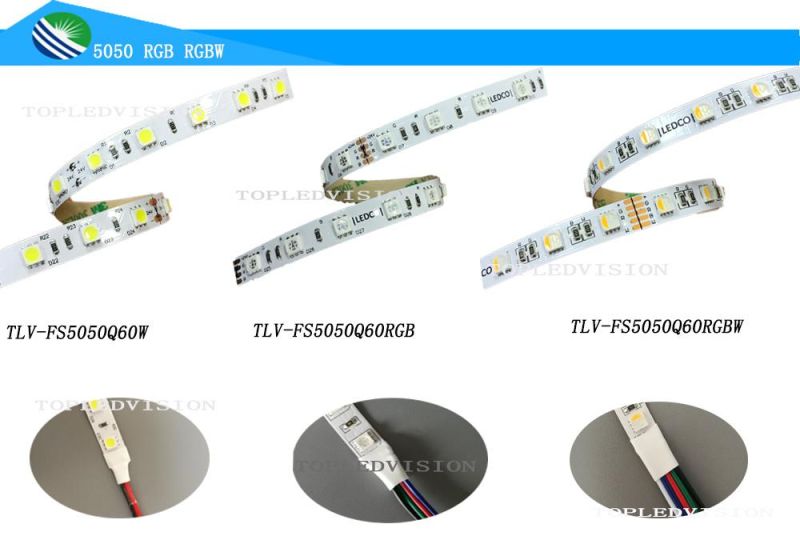

| Model | Led quantity | Output | Power | PCB Width |
| TLV-FS5050Q60W | 60leds/m | 12/24V DC | 14.4W | 10mm |
| TLV-FS5050Q60RGB | 60leds/m | 12/24V DC | 14.4W | 10mm |
| TLV-FS5050Q60RGBW | 60leds/m | 12/24V DC | 14.4W | 10mm |

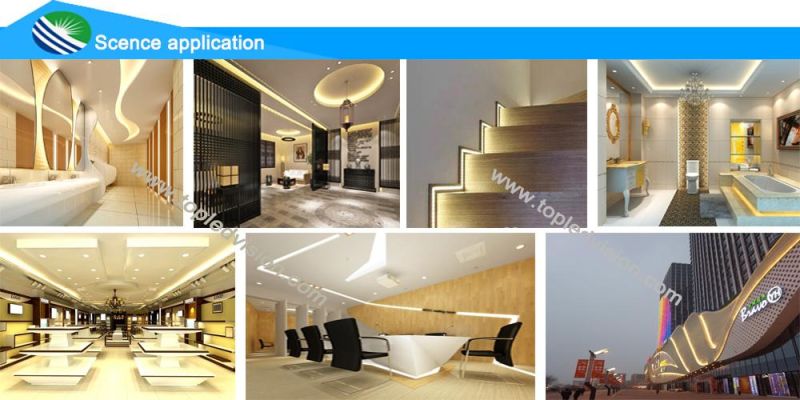

Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Packaging and shipping :
1. Packaging: 5m/roll, box packing (132x132x15mm), 100 reels per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
