LED Lighting Decoration

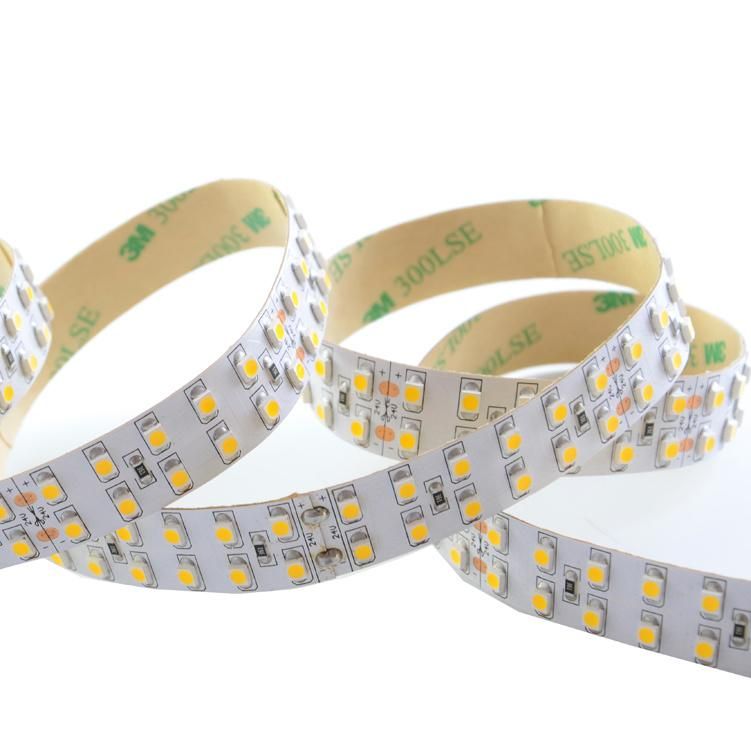

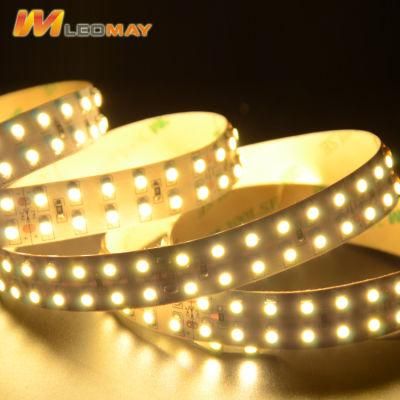

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS

Leomay Technology Co., Ltd.
  • Certification:FCC, UL, RoHS, CE
  • Power:16-20W
  • Emitting Color:Warm White
  • Voltage:24V
  • IP Rating:IP20
  • LED Qty/m:240LEDs,m 3528

Base Info

  • Model NO.:LM3528-WN240-24V
  • LEDs Suppliers:Honglitronic,Osram,Samsung
  • LEDs material:Packaged by 99.99% pure gold wire
  • LED BINs:3-Step,5-Step, same BIN for each order
  • LED Chip Brand:Sanan(Epistar optional)
  • PCB Width:15mm
  • PCB material:Double-sided coated pure copper
  • PCB thickness:2Oz (front 35um,back 35um)
  • Adhesive Tape:9495 3000LSE 3M tape
  • IP Grade:IP20,IP65
  • Transport Package:Static-Resistant Bag
  • Specification:5meters,Roll
  • Trademark:Leomay
  • Origin:Shenzhen, China
  • HS Code:9405409000
  • Production Capacity:10000meters,Day

Description

Basic Info.

Model NO. LM3528-WN240-24V LEDs Suppliers Honglitronic/Osram/Samsung LEDs material Packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 15mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP65 Transport Package Static-Resistant Bag Specification 5meters/Roll Trademark Leomay Origin Shenzhen, China HS Code 9405409000 Production Capacity 10000meters/Day

Product Description

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHSIP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS




Product Parameter


Model No.LM3528-WN240-W-24V
LED Qty240leds/m 3528
Rated Power(W)19.2W/M, 96W/5M
Voltage(V)24V DC
PCB Width15MM
PCB materials2Oz Double-sided coated pure copper
Luminous(lm/m)1500lm/m
LED Chip BrandSanan(Epistar optional)
LED's materialPackaged by 99.99% pure gold wire
LED Bins3-Step/5-Step, same BIN for each order
LED SupplierHonglitronic (Osram/Samsung optional)
CRI(RA>)CRI80(CRI90 CRI95 optional)
ColorW/WW/CW/R/G/B/Y/O/UV/Pink
Color Temperature2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K
IP RateIP20 (IP54/IP67/IP68 optional)
View Angle120°
Product Size(mm)15*5000mm
Package(m/roll)5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)-20-60
Cutting Unit12 LEDs
Adhesive Tape9495 3000LSE 3M tape
DimmableYes
CertificateUL, CE, RoHs, FCC
Warranty3 Years



Details Images


IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS


Application

This product can be used for :

1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, large scale backlight
5.Indoor and outdoor lighting and for festival decoration

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS


Our Services

1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS


Packing & Delivery

Packing

  1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
  2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
  3. Size:46CM*35CM*25CM
  4. 50Rolls led strip in 1 Box
  5. weight: 10.5±0.5KG/BOX


Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS
IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS


Recommend Products

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS


Company Profile

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS


Our Advantages

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. Super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.

IP20/IP67 warm white CRI80+ 24V flexible LED strip light with CE&RoHS
