• Model NO.：LM3528-WN120-12V
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LEDs material：Packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5meters,Roll
• Specification：5meters,Roll
• Trademark：Leomay
• Origin：Shenzhen, China
• HS Code：94054090
• Production Capacity：10000meters,Day

Basic Info.

Model NO. LM3528-WN120-12V LEDs Suppliers Honglitronic/Osram/Samsung LEDs material Packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5meters/Roll Specification 5meters/Roll Trademark Leomay Origin Shenzhen, China HS Code 94054090 Production Capacity 10000meters/Day

Product Description

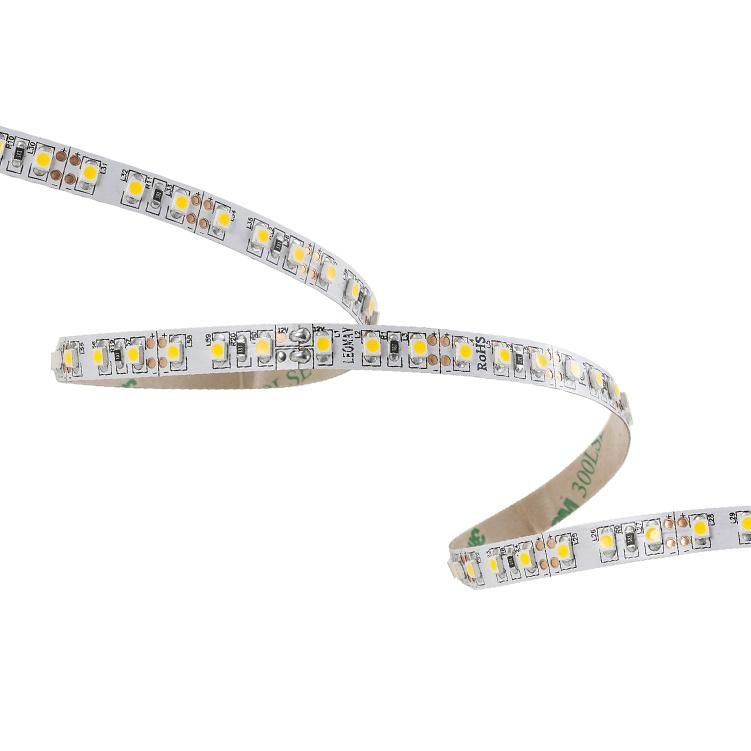

warm white 3000K 3528 120ld/m 12V flexible LED strip light



Product Parameter


Model No.	LM3528-WN120-W-12V
LED Qty	120leds/m 3528
Rated Power(W)	9.6W/M, 48W/5M
Voltage(V)	12V DC
PCB Width	8MM
PCB materials	2Oz Double-sided coated pure copper
Luminous(lm/m)	750lm/m
LED Chip Brand	Sanan(Epistar optional)
LED's material	Packaged by 99.99% pure gold wire
LED Bins	3-Step/5-Step, same BIN for each order
LED Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI90 CRI95 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Temperature	2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	8*5000mm
Package(m/roll)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHs, FCC
Warranty	3 Years

Details Images

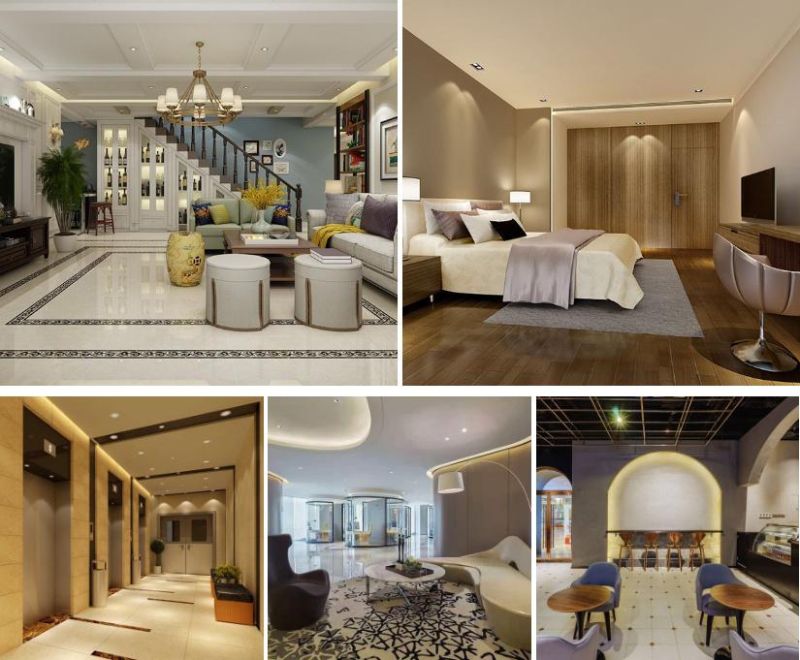

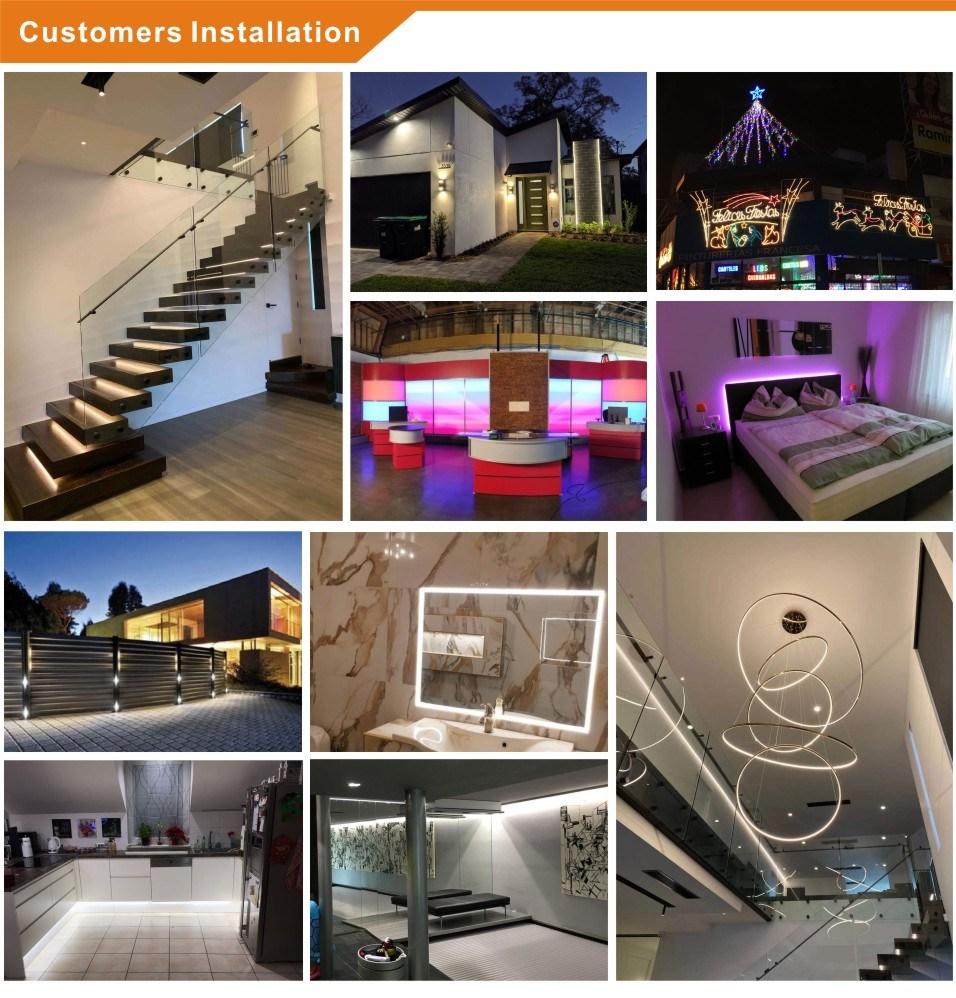

Application

This product can be used for :

1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, large scale backlight
5.Indoor and outdoor lighting and for festival decoration




Our Services

1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.




Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. Size:46CM*35CM*25CM
4. 50Rolls led strip in 1 Box
5. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.

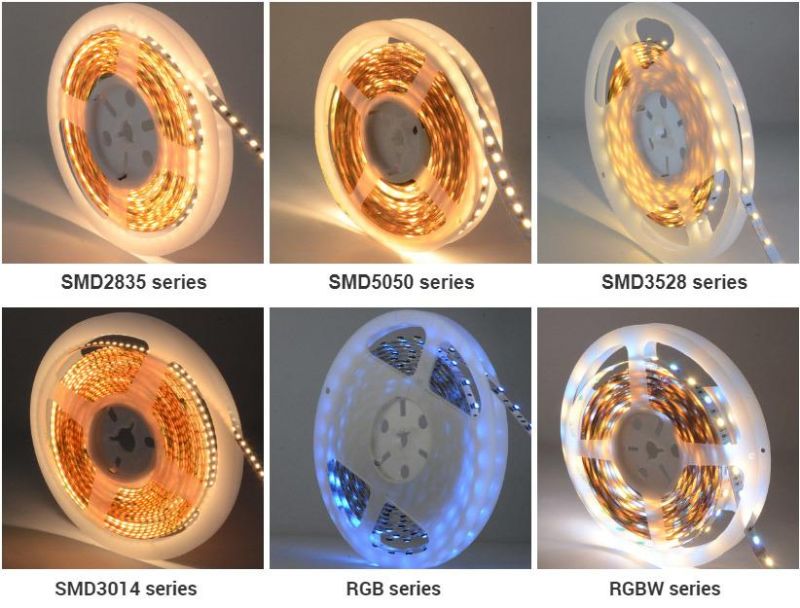

Recommend Products




Company Profile




Our Advantages

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. Super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
