• Model NO.：LM5050-WN60-PG660450470
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• Wave Length：Red 625-660nm, Blue: 450-470nm
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Statie-Resistant Bag
• Specification：10*5000mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM5050-WN60-PG660450470 LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order Wave Length Red 625-660nm, Blue: 450-470nm LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 10*5000mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

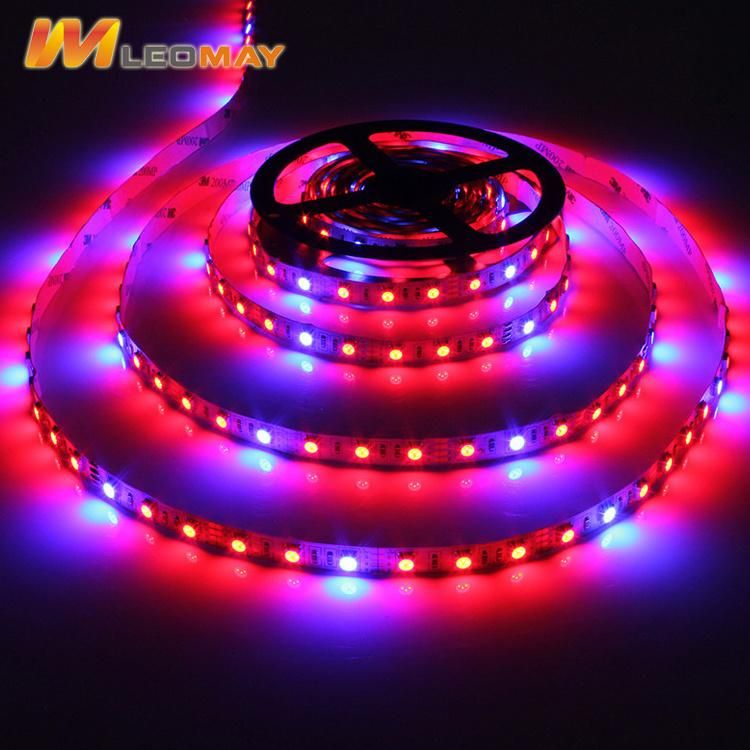

Plant grow smd5050 660nm/450nm/470nm led strip light/led tape

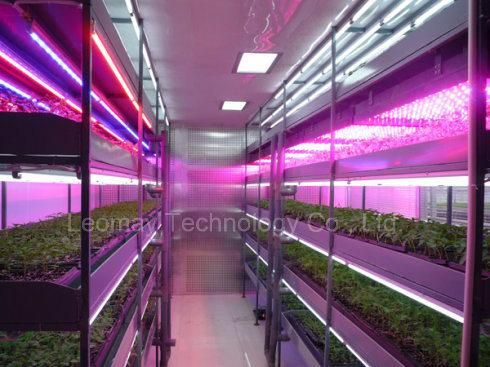

Plant growth light environment is an important and indispensable factor in the physical environment , through the light quality regulation,control plant morphogenesis is an important area of cultivation techniques.





Product Parameter


Model No.	LM5050-WN60-PG660450470
LED Qty	60leds/m 5050
Rated Power(W)	14.4W/M, 72W/5M
Voltage(V)	12V/24V DC
Wave Length	660nm/45nm/470nm
PCB Width	10MM
PCB materials	2Oz Double-sided coated pure copper
LED Chip Brand	Sanan(Epistar optional)
LED's material	Packaged by 99.99% pure gold wire
LED Bins	3-Step/5-Step, same BIN for each order
LED Supplier	Honglitronic (Osram/Samsung optional)
Color	R/B
Color Rate	2 Red: 1 Blue / 5 Red: 1 Blue
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/roll)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3/6 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes

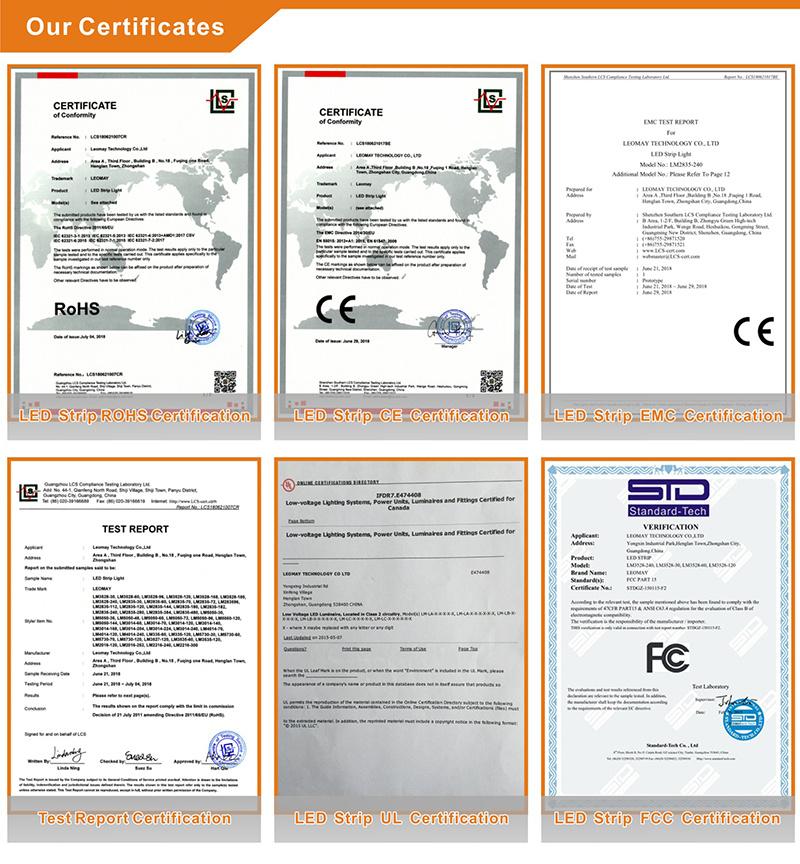

Certificate	UL, CE, RoHs, FCC
Warranty	3 Years

Features
a.Superbright 5050 SMD LED, high intensity and reliability.

b.60 SMD LEDs per meter, total 300 LEDs for 5 meters.

c.Self-adhesive back with double side adhesive tape, Maintenance free, easy installation.

d.Every 3/6-LEDs cuttable without damaging the rest strip.

e.Flexible ribbon for curving around bends, ultra-bright but running at low temperature.

f.Size: W1cm x T0.25cm

g.Wave length: Red 625-660nm; Blue: 450-470nm

h.5Red and 1Blue leds per unit, any led proportion can be coustmised.


Our Services

1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.




Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. Size:46CM*35CM*25CM
4. 50Rolls led strip in 1 Box
5. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.





Recommend Products




Company Profile




Our Advantages

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. Super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
