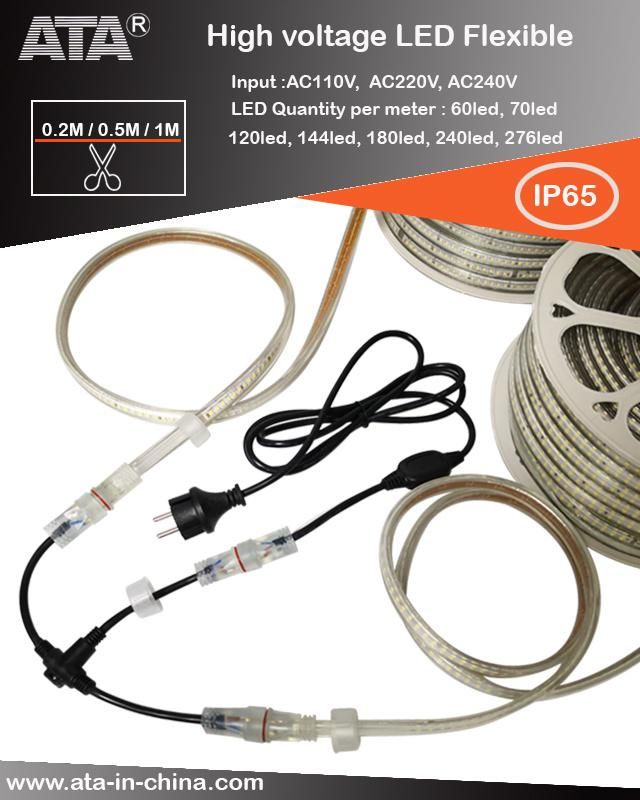

Male and Female Connection AC110V 127V 220V 230V 260V SMD 2835 144LEDs/M IP67 Waterproof Outdoor Application LED Strip Light
Shenzhen ATA Technology Co., Ltd.- Certification：FDA, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
- Power：6-10W
- Emitting Color：White
- Voltage：220V
- IP Rating：IP65
- LED Type：2835, 5050, 5630, 5730 SMD
Base Info
- Model NO.：ATA-XX28-144
- Viewing Angle：120 Degrees, 360 Degrees
- Color：White, Warm White, Natural White, Red, Green, Blue
- PCB Width：8mm, 10mm, 12mm, 13mm, 15mm, 16mm, 20mm
- LED Quantity Per Meter：60LED, 180LED, 60LED, 72LED, 84LED, 96LED, 120LED,
- Cuttable Unit：0.2m, 0.5m, 1m
- Working Voltage：AC110V, AC220V, AC230V, AC240V
- CRI：Ra80
- Lumen：24-26lm,LED
- Meter Per Reel：5m,Reel, 10m,Reel, 25m,Reel, 50m,Reel, 100m,Reel,
- Waterproof Method：Silicone Pipe, PVC Pipe
- IP Grade：IP65
- Applications：Construction Sites, Tunnel, Road Maintenance, Tree
- Working Temperature：-20~+60 Celsius Degree
- Warranty：2 Years
- Transport Package：K=K Carton
- Specification：13*7mm, 15*7mm, 17*7mm, 20*8mm
- Trademark：ATA
- Origin：Made in China
- HS Code：9405409000
- Production Capacity：500, 000,Meters,Month
Description

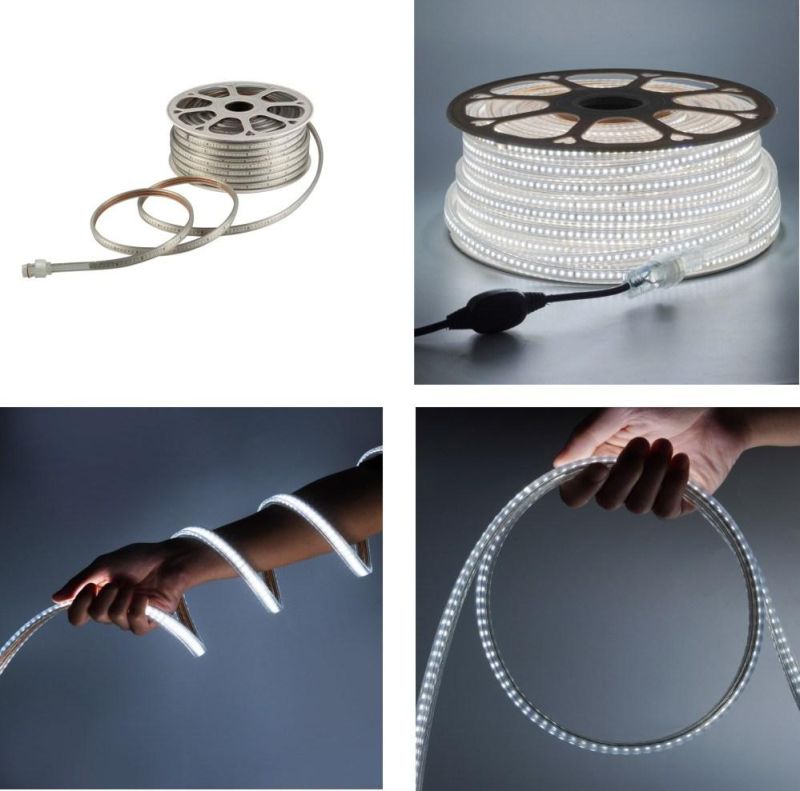

5m/reel, 10m/reel, 25m/reel, 50m/reel, 100m/reel, 200m/reel
Safety Information
The SMD light ribbon itself and all its components may not be mechanically stressed. Assembly must not damage or destroy conducting paths on

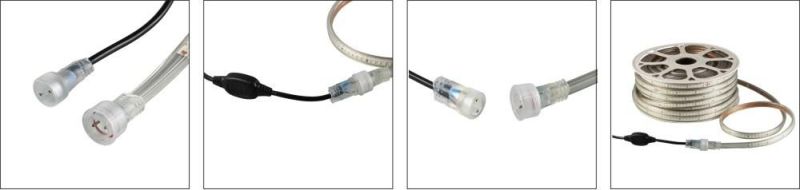

Each strip has plug and rectifier bridge pile, only need insert the plug into the power socket. Please specify the power of the product
before use to ensure that the power supply line is not overloaded and the circuit has circuit protector, If the power outlet with a fuse or
connected to the leakage switch, Please refer to the product technology and photoelectric parameters to ensure the operation within
the range of ±5% voltage parameters

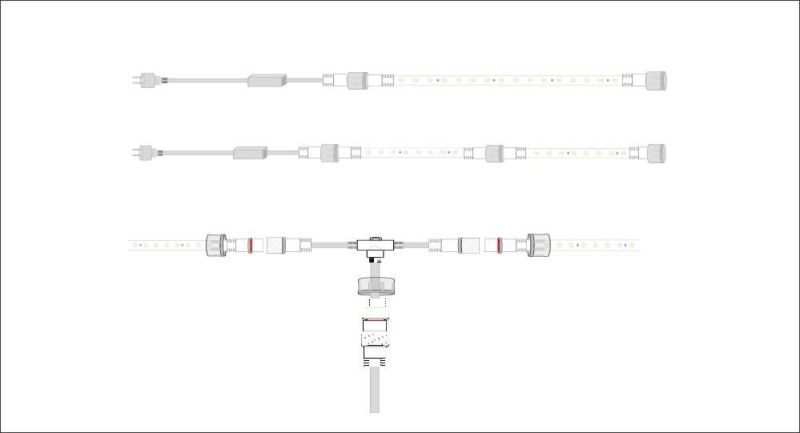

If customized length is needed, it should be cut at the welding position of 0.5/1 meter unit group, not less than the minimum unit length
or cut within the unit group. After shearing, it should be noted that the incision should be sealed with waterproof insulating glue to avoid
burning the product or safety accidents (the product supplier is not responsible for the loss caused thereby). Our company does not
recommend customers to cut the length by themselves. If you need non-standard length products, please contact our marketing staff
Do not make continuous distortion of the lamp belt. Repeated distortion may easily cause fatigue damage to the internal power line.
The distortion angle shall not be less than 45 degrees, and don't bend below 60mm in diameter. Soft light belt in outdoor, indoor use
should do safety precautions, so as not to reduce fire, electric shock and personal injury
For the steady work of the product, please use the product in some places with good ventilation. It's forbidden to light the whole roll
of light strips together
Make sure life-span of led strip, we recommend not pulling power line hard during using, no impact and press surface of light source.
Fixing led strip must be solid, no losening and flying phenomenon, or it'll lead to breakage of cable and damage led strip
The end side of led strip must be sealed by end-cap, when use outdoor, connector must be solid, no hidden danger of short circuit.
Installed at outdoor, each connector must be sealed with glass glue or other sealing methods to seal seams, making sure each
connector waterproof
Install and fix, do not use iron wire metal maerial to tighten led strip to prevent iron wire drop into led strip, lead to short circuit and
electric leakage, burn led strip, etc.
Once discovering led strip worn, cut damaned unit at once, stop using any more to avoid danger
This prodcut is not kids toys, easy to arouse children's interest, pls install out of reach of children Or use under adult supervision.
Strictly forbidding using this product directly in some swimming pools, river,place where people are crwoded to prevent accidents
Applications
Indoor and outdoor decoration lightings.
Idea for in advertisement and cabaret, large scale backlight, cabinet, furniture, landscape outlines
Edge-lighting of transparent or diffused materials, to couple light into transparent or diffused glass
Bridge edge lighting
Window display lighting
Tree, garden lighting
Car and motorcycle decorative lighting
Path & Building contour decorative lighting
Emergency hallway lighting / rescue signs / advertising signs / light boxes
Architectural decorative lighting, villa, restaurant, hotel, meeting room, show room, shop, counter, etc
Festival lighting, General lighting, Task lighting, Household appliances, Architectural lighting, Decorative / pathway lighting, Street lighting
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin
Mobile:0086-158 1858 6160
Please feel free to send us your inquiry, We are at your service any time!
