• Model NO.：LM335-WN120-WW-24V
• LED Supplier：Honglitronic,Osram,Samsung
• LED BINs：3-Step,5-Step, same BIN for each order
• LEDs material：packaged by 99.99% pure gold wire.
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Statie-Resistant Bag
• Specification：8*5000mm
• Trademark：Leomay
• Origin：China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM335-WN120-WW-24V LED Supplier Honglitronic/Osram/Samsung LED BINs 3-Step/5-Step, same BIN for each order LEDs material packaged by 99.99% pure gold wire. LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 8*5000mm Trademark Leomay Origin China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

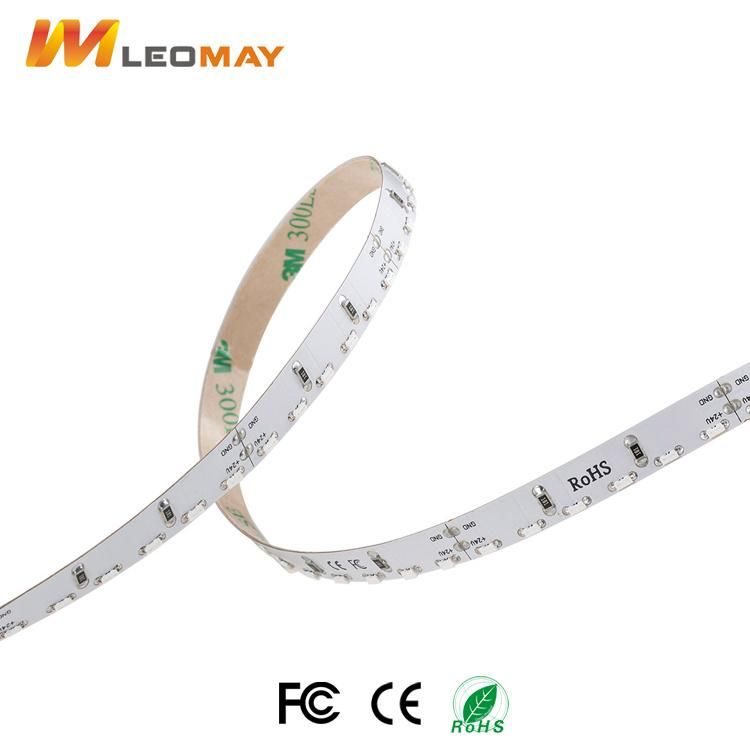

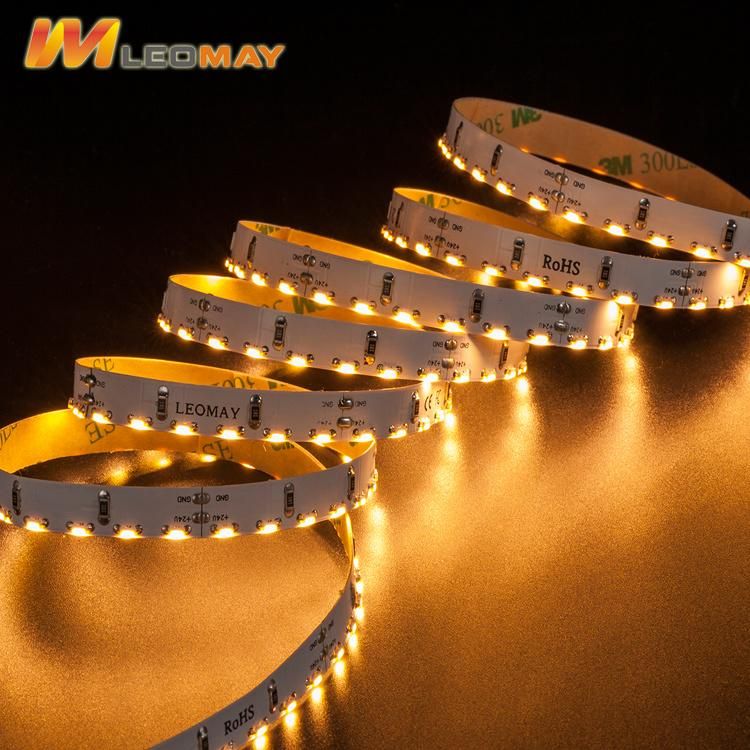

 CE RoHS SMD335 120led/m 9.6W/M 12V Side Viewing Cuttable LED Strip Light



Product Specification:


Model NO	LM335-WN120-24V-8MM
Product Name	SMD335  120LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	120leds/m 335
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	9.6W/M,48W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features





a. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.

b. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.

c. Operating low voltage (DC12V, DC24V) for human safety.

d. Energy saving and environmental conservation, long lifespan.


Our services

We can help All our Customer in Installing, Design, and Accessory Free.

Our all customer know: our Connector, Install Clips, Wires, is free with Orders.

Any questions when using , we always fast reply with the professional methods.

the Shipping from us, very fast, because when we know the Normal products you often ordered.

we will do stock produce.

We will be honest and careful while offering our products.

All products will be tested and Packed strong.

We are will be Your Most professional, Fastest Supplier



Certifications



Company Information

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.

Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.




FAQ

Q1. What are the best selling products in Leomay?

A: - LED Strip

- Aluminum LED Profiles

- Controllers&Remote

- Power Supply

- Connector


Q2. What about the lead time for  led strip light?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks, if led strip light design needed, 3 weeks


Q3. Do you have any MOQ limit for led strip light order?

A: No MOQ, 1pc for sample checking is available


Q4. How do you ship the led strips and how long does it take to arrive?

A: We usually ship the led strip lights by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit.
Fourthly We arrange the production.


Q6. Is it OK to print my logo on led strip light product?

A: Yes. Please inform us formally before our production and confirm the design first.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system.
Secondly, during the guarantee period, we will send new led strip lights with new order for small quantity.
