New arrival LED strip light CCT 2835 156LED/M 5mm flexible LED strip
Leomay Technology Co., Ltd.- Certification:FCC, UL, RoHS, CE
- Power:8W,M
- Emitting Color:W+WW
- Voltage:12V
- IP Rating:IP20,IP65
- LED Quantity:156LEDs,m 2835
Base Info
- Model NO.:LM2835-WN156-CCT-12V-5MM
- LED Supplier:Honglitronic,Osram,Samsung
- LEDs material:packaged by 99.99% pure gold wire
- LED BINs:3-Step,5-Step, same BIN for each order
- LED Chip Brand:Sanan(Epistar optional)
- PCB Width:5mm
- PCB materials:Double-sided coated pure copper
- PCB thickness:2Oz(front 35um, back 35um)
- Adhesive Tape:9495 3000LSE 3M tape
- IP Grade:IP20,IP60,IP65,IP68
- Transport Package:Neutral Packing, OEM Packing Are Available
- Specification:UL, CE, RoHS, FCC, ERP
- Trademark:LEOMAY
- Origin:Guangdong, China
- HS Code:9405409000
- Production Capacity:10000 Meter,Day
Description
Basic Info.
Model NO. LM2835-WN156-CCT-12V-5MM LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 5mm PCB materials Double-sided coated pure copper PCB thickness 2Oz(front 35um, back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification UL, CE, RoHS, FCC, ERP Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/DayProduct Description
New arrival LED strip light CCT 2835 156LED/M 5mm flexible LED stripProduct Parameter
Model No. | LM2835-WN156-CCT-12V-5mm |
LED Qty | 156leds/m |
Rated Power(W) | 8W/M, 40W/5M |
Voltage(V) | 12V DC |
PCB Width | 5MM |
PCB materials | 2Oz Double-sided coated pure copper |
LED Chip Brand | Sanan(Epistar optional) |
LED's material | Packaged by 99.99% pure gold wire |
LED Bins | 3-Step/5-Step, same BIN for each order |
LED Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | W/WW/CW/R/G/B/Y/O/UV/Pink/RGB/RGBW |
Color Temperature | 2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K |
IP Rate | IP20 (IP54/IP67/IP65 |
View Angle | 120° |
Product Size(mm) | 5*5000mm |
Package(m/roll) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL, CE, RoHs, FCC |
Warranty | 3 Years |

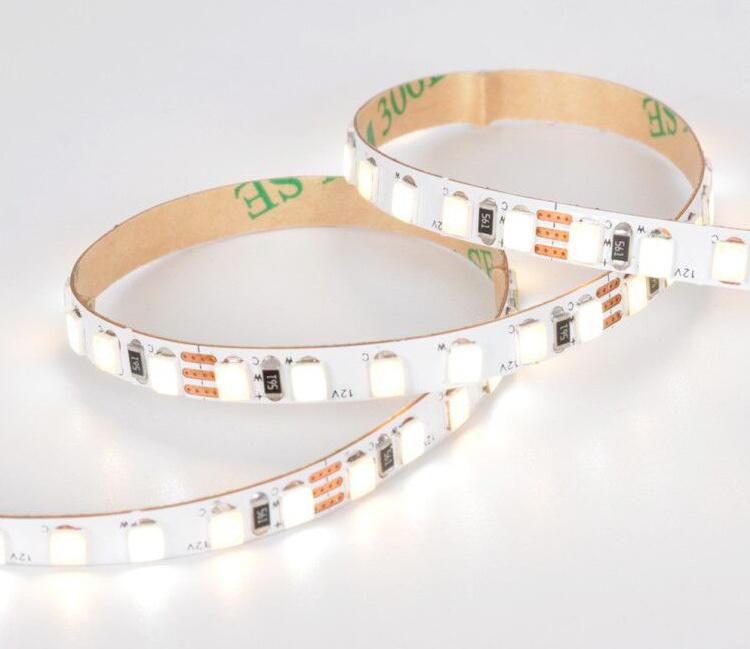

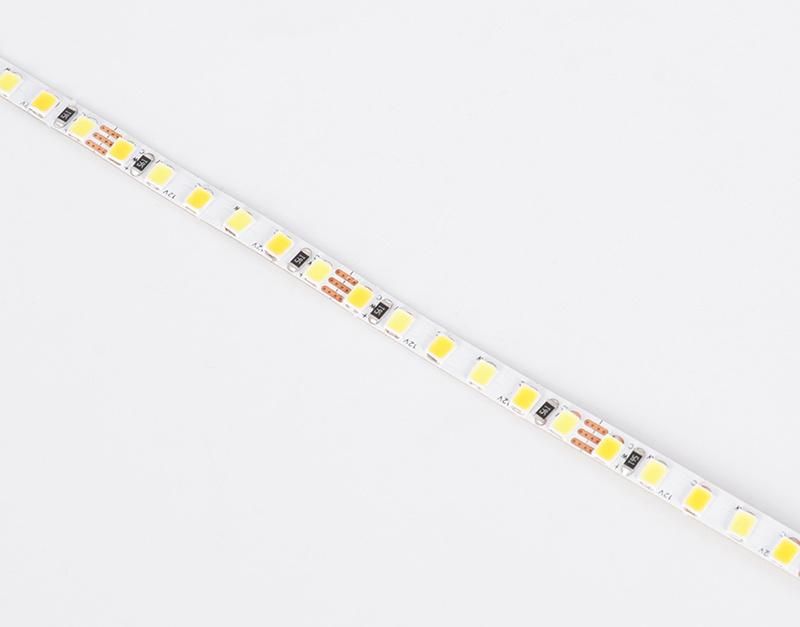

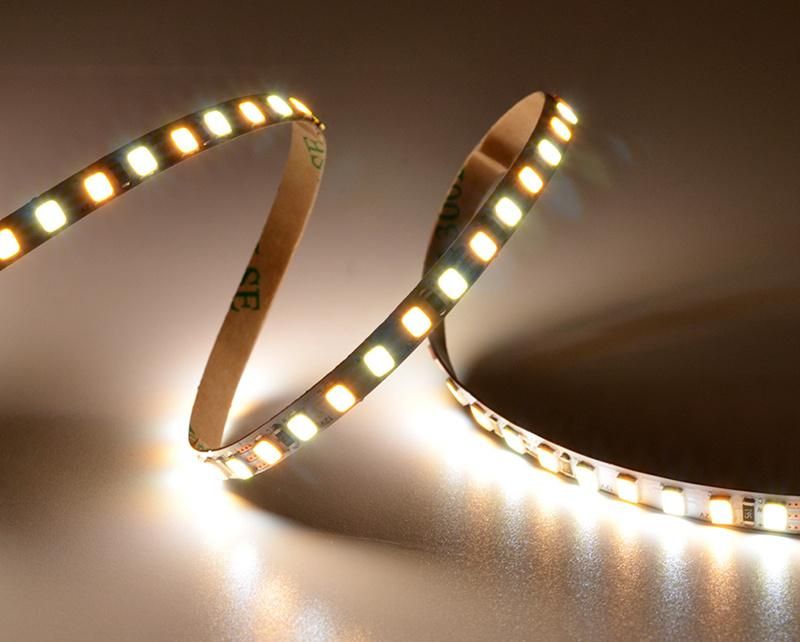

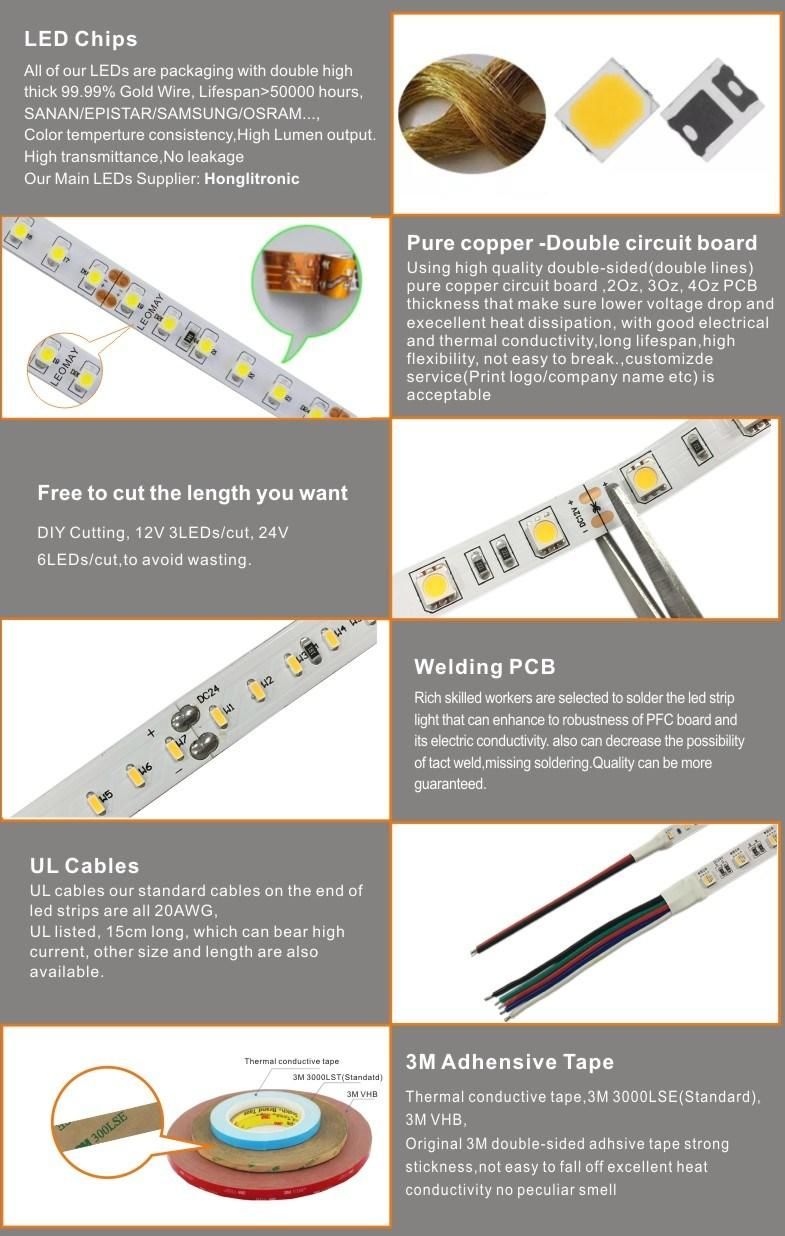

Details Images

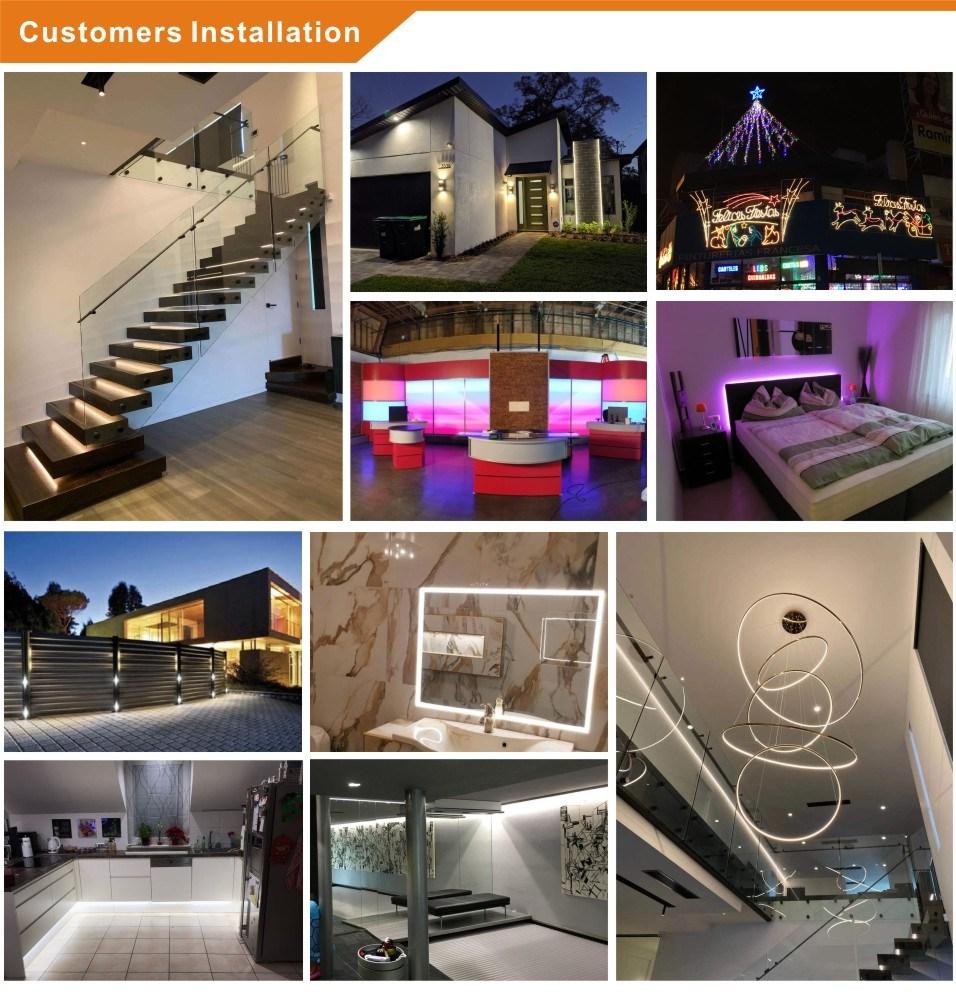

Application
This product can be used for :
1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, large scale backlight
5.Indoor and outdoor lighting and for festival decoration
Our Services
1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.
Packing & Delivery
Packing
- LED Strip Normal Length: 5meters/roll, in a anti-static bag.
- Our Box Size for 80rolls 10MM width Led strip and 12MM width
- Size:46CM*35CM*25CM
- 50Rolls led strip in 1 Box
- weight: 10.5±0.5KG/BOX
Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.

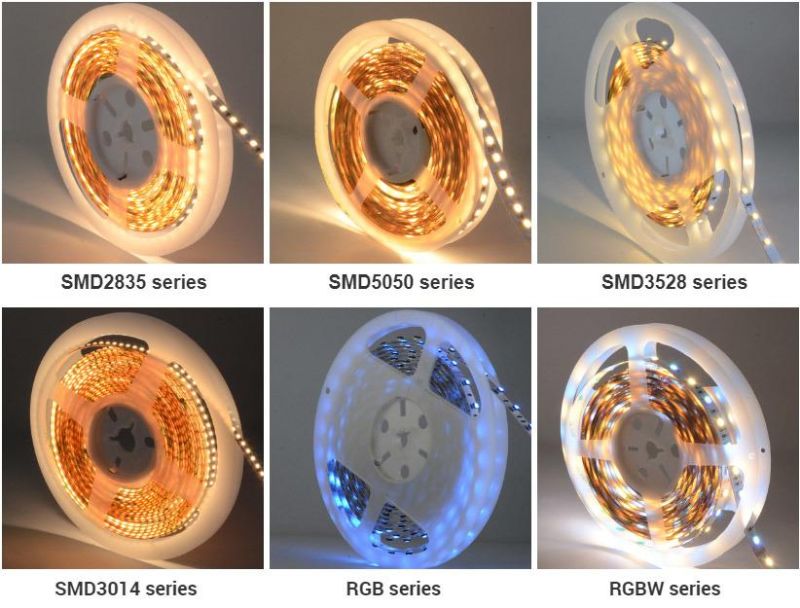

Recommend Products

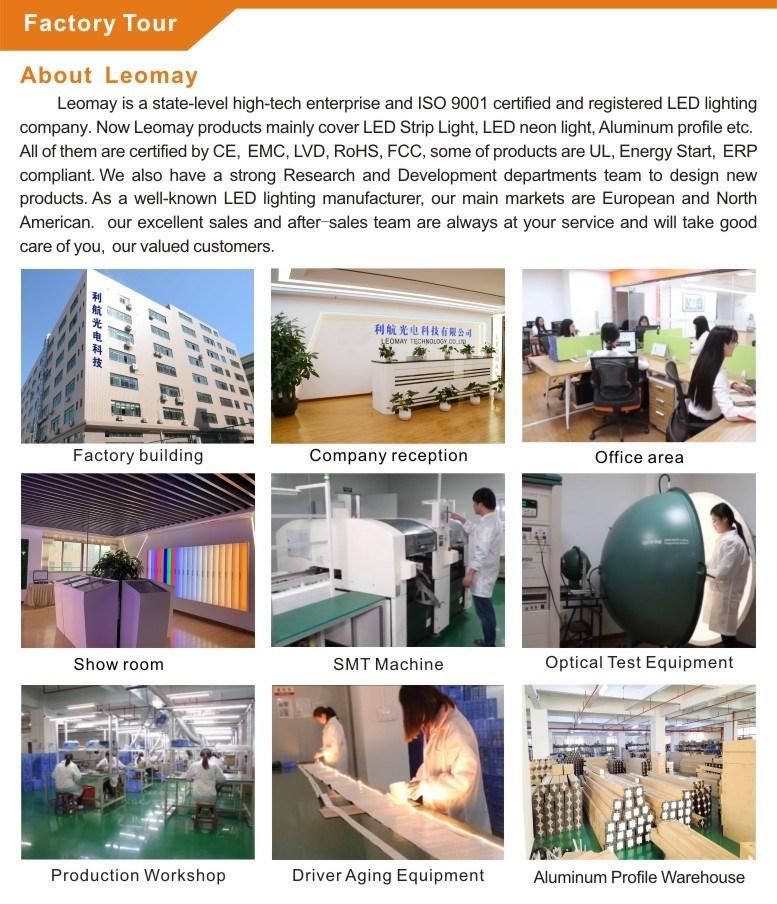

Company Profile
Our Advantages
1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. Super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
