• Model NO.：ATA-XF50-60DIC
• Lamp Body Material：Copper
• Lamp Luminous Efficiency：18-22
• Lifespan (Hours)：50000
• Working Temperature(ºC)：-40 - 60
• Lighting Solutions Service：Lighting and Circuitry Design, Project Installati
• Product Weight(Kg)：0.38
• Key Feature1：Changeable LED Strip
• Key Feature2：Programmable LED Strip
• Key Feature3：Use SD Controller,Artnet,Arduino
• Color：RGB Multi Color Changing
• Switch Mode：Bluetooth, Remote Control, WiFi
• Transport Package：Antistatic Bag and K=K Carton
• Specification：5000mm*10mm*2.4mm
• Trademark：ATA
• Origin：China
• HS Code：9405409000
• Production Capacity：300, 000,Pieces,Month

Basic Info.

Model NO. ATA-XF50-60DIC Lamp Body Material Copper Lamp Luminous Efficiency 18-22 Lifespan (Hours) 50000 Working Temperature(ºC) -40 - 60 Lighting Solutions Service Lighting and Circuitry Design, Project Installati Product Weight(Kg) 0.38 Key Feature1 Changeable LED Strip Key Feature2 Programmable LED Strip Key Feature3 Use SD Controller,Artnet,Arduino Color RGB Multi Color Changing Switch Mode Bluetooth, Remote Control, WiFi Transport Package Antistatic Bag and K=K Carton Specification 5000mm*10mm*2.4mm Trademark ATA Origin China HS Code 9405409000 Production Capacity 300, 000/Pieces/Month

Product Description

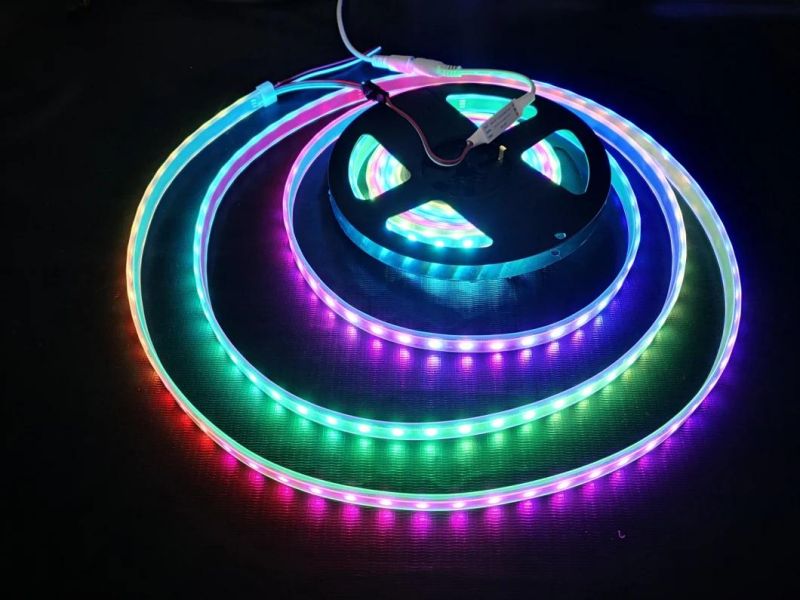

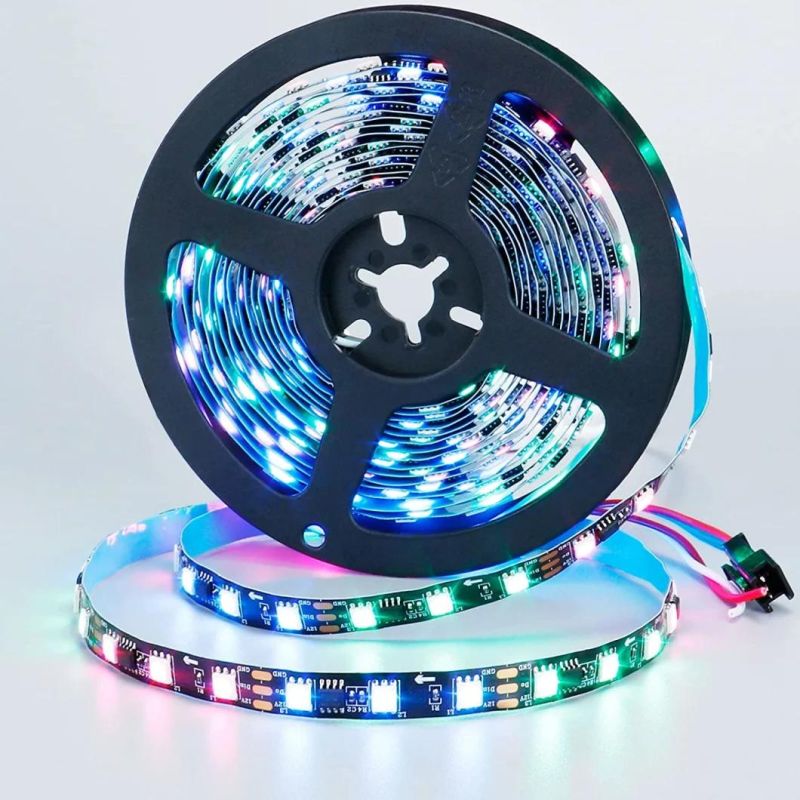

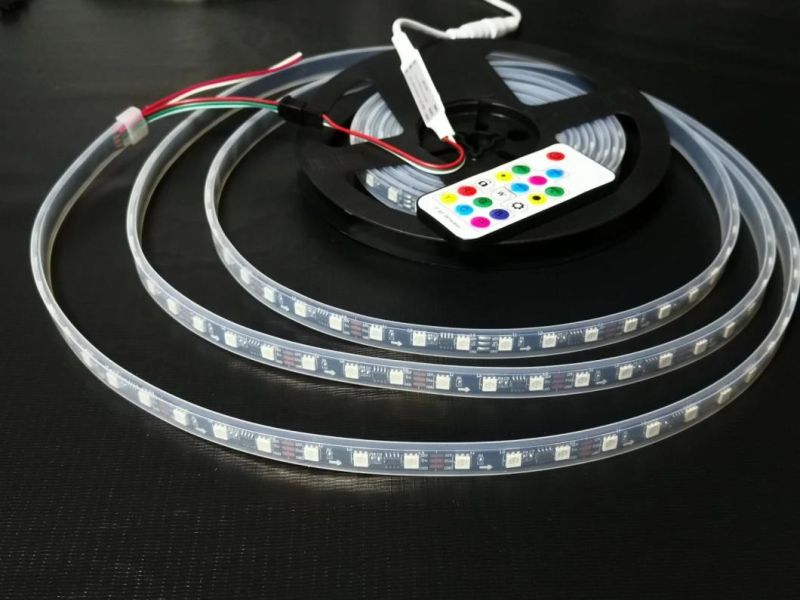

12V Ws2811 5m 30/60/144LEDs Per Meter Addressable Programmable Digital RGB LED Strip

Product parameter:

(1) Working Voltage: DC 12V
(2) Voltage drop from start to end of 5M +/- 2v.
(3) LED Source: SMD 5050 RGB, LED Chip: Epistar
(4) LED QTY: 30/60/144 LED/M, IC QTY: 10/20/48 Pcs/M
(5) Flexible PCB: White/black color, PCB width 10mm
(6) Power: 9/18/43.2 W/M
(7) Grey Scale: 256 / Color
(8) Cutability: 3 led / cutting ( External 2811 ic, 1 ic control 3 LED )
(9) Beam Angle: 120 °
(10) Color Mode: 133Pattern & 100 Speeds
(11) Dimension: 5000mm x 10mm x 2.4mm
(12) Packaging: 5m/roll 12v ws2811 rgb strip + 3 pin connector
(13) Warranty: 3years

Model	Voltage	Meter	Led quantity	IP Grade	PCB Color
HD107S	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
APA102	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
APA107	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
SK9822	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
WS2812B	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
WS2813	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
SK6812RGBW	DC5V	5m	30/60/72/144leds/m	IP20/65/67/68	White/Black
WS2811	DC12V	5m	30/48/60/96/144leds/m	IP20/65/67/68	White/Black
WS2815	DC12V	5m	30/60/144leds/m	IP20/65/67/68	White/Black
5050RGBW	DC12V	5m	60leds/m	IP20/65/67/68	White/Black
RGBW5 IN 1	DC12V	5m	60leds/m	IP20/65/67/68	White/Black
RGBW4 IN 1	DC12/24V	5m	60leds/m	IP20/65/67/68	White/Black
FCOB Strip	DC12/24V	5m	336/480/528leds/m	IP30	White

Features:
(1) Flexible PCB  ( IP20,IP65)  With 3M adhesive tape on the back for easy installation.
(2) Energy saving and environment protection.
(3) High brightness 5050 SMD LED light strip.
(4) Solid-state, high shock or vibration resistance.
(5) Low power consumption, high intensity.
(6) Match the RGB controller and power supplier system.
(7) Wide viewing angle.
(8) Available in various single and RGB colors.

Easy installation, Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bendin

Dream color lighting, Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,

you can also edit animation effect by Coreldraw/Flash/LedEdit software. the city lighting project, entertainment and leisure places lighting.
