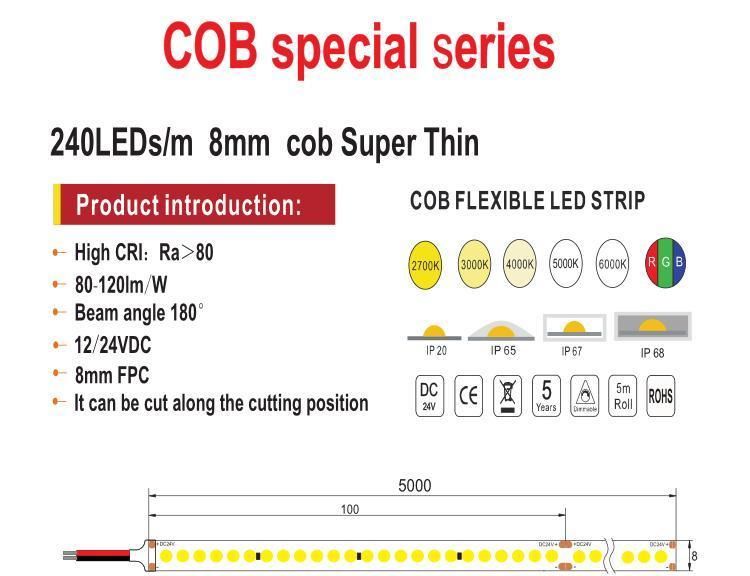

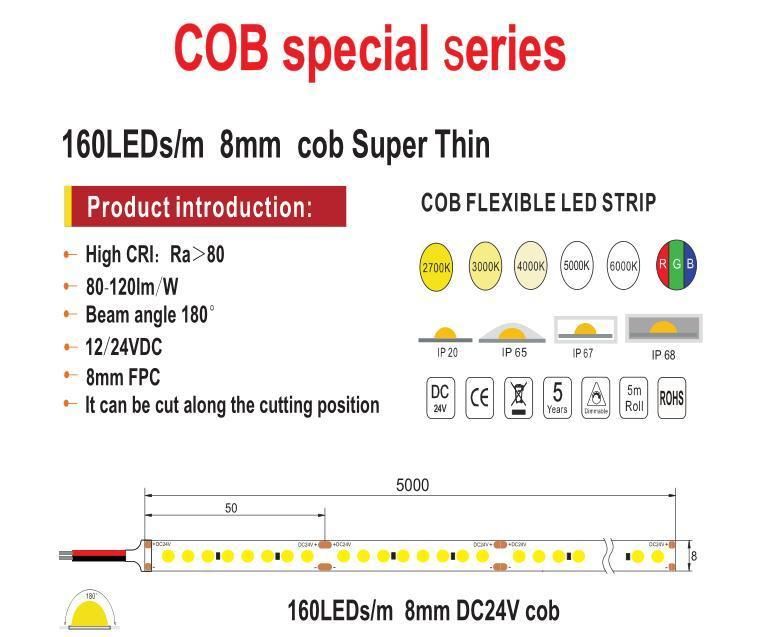

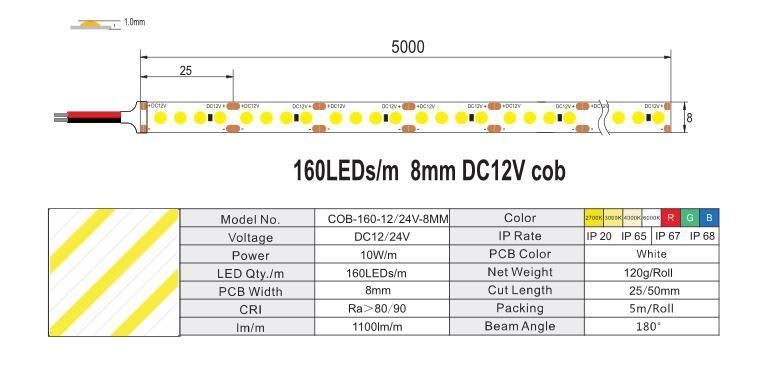

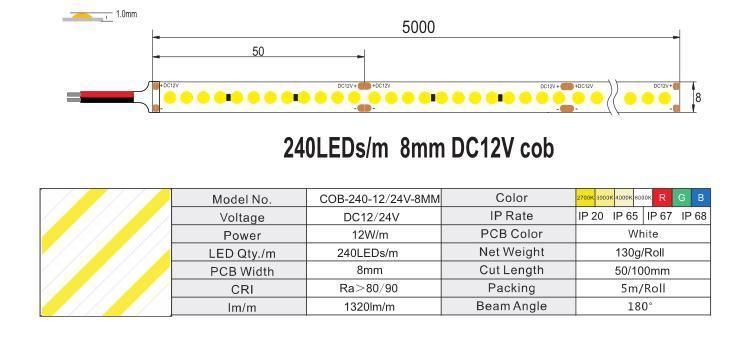

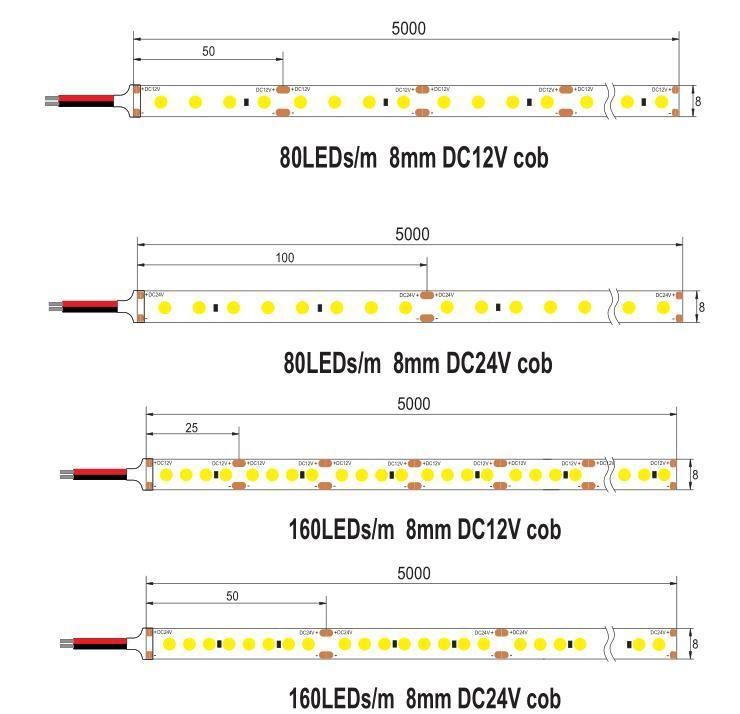

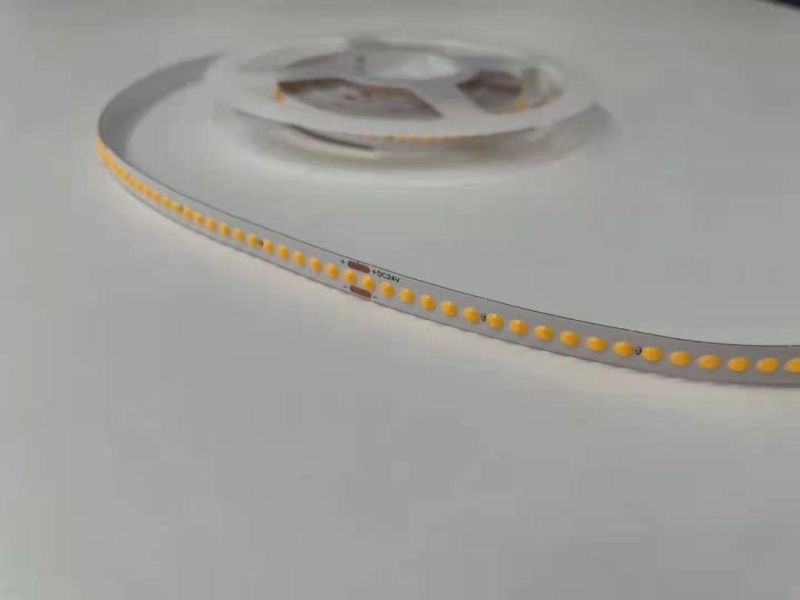

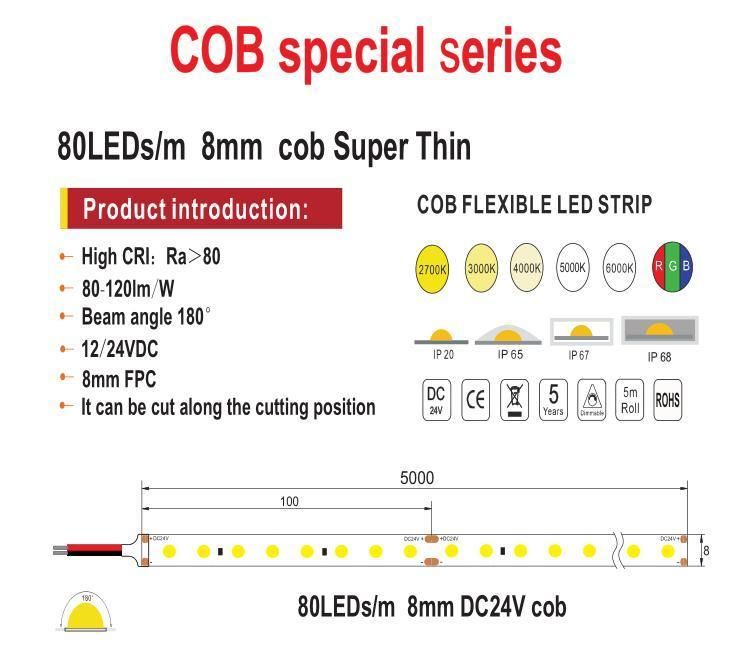

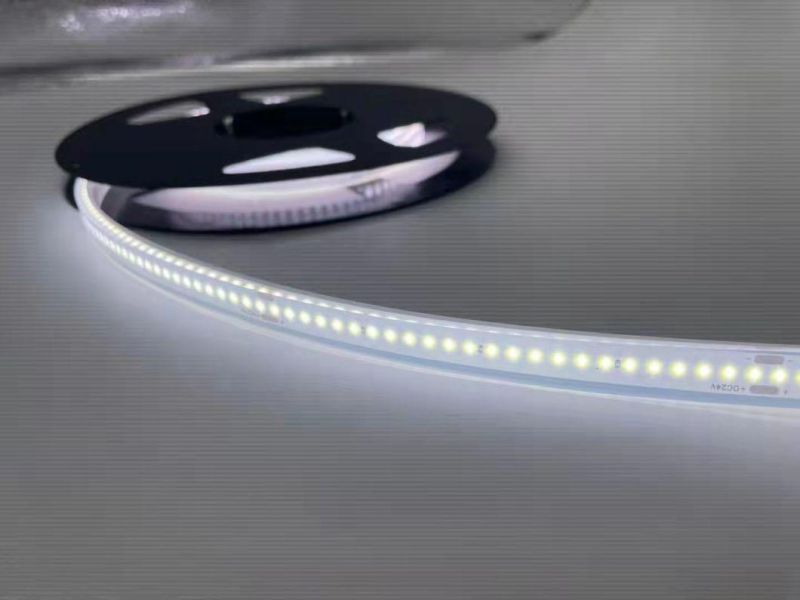

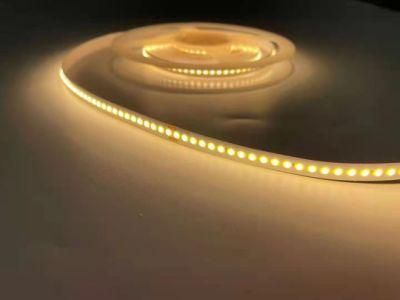

5m DC24V COB LED Strip 80 160 240LEDs High Density Flexible COB LED Lights CRI 80 CCT LED Tape LED Strip
Tianjin Zhongyijian Technology Co., Ltd.- Power：11-15W
- Emitting Color：White
- Voltage：12V
- IP Rating：IP33
- Type：Flexible LED Strip
- LED Type：COB
Base Info
- Model NO.：NEW COB
- LED Numbers/M：80PCS,M
- Color：White
- Life(H)：25000
- Board：White,Yellow
- Transport Package：Natural Packing
- Specification：CE ROHS
- Trademark：JIAN TECHNOLOGY
- Origin：China
- Production Capacity：1000000000000000000000000
Description
Overview
Product DescriptionDetailed Photos
1. Ultra-thin, the height of the finished product is only 1.2mm
2. Large-angle 180-degree light-emitting angle, this is a new product: dot matrix COB. It has the following characteristics: 1. Ultra-thin, the height of the finished product is only 1.2mm
2. Large-angle 180-degree light-emitting angle, no light spots on the mounting profile

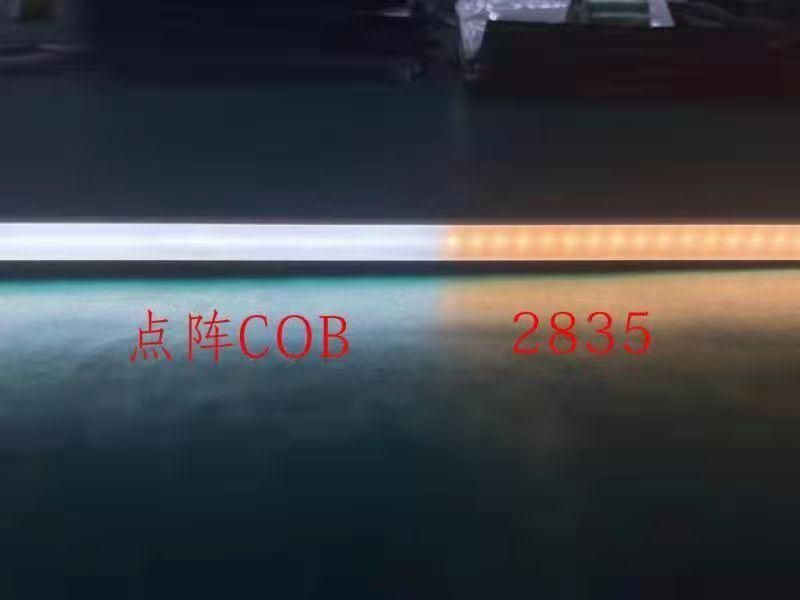

3. The light-emitting surface is low, because the new flip-chip product is used, which is 1mm lower than the conventional 2835 and 2216 light-emitting surface, which is especially suitable for ultra-thin profiles or neon tubes.
4. Long life, good stability, using the 150mA process flip chip specification, the actual use current does not exceed 20mA, the temperature rise of the chip itself is very low
5. Inheriting the advantages of conventional COB, the chip is directly packaged on the circuit board, and the heat dissipation effect is better. Moreover, because the traditional SMD lamp beads have a bracket, the thermal conductivity of the bracket is very low, which causes the heat to be inside the lamp beads and cannot be dissipated in time. out
6. No glare, soft light, which solves the glare problem of traditional patches
7. Stability. Compared with SMD lamp beads, the product has higher stability, because the chip is small, has no bracket, no gold wire, and the bottom of the design has a protective pad, and the design has no light spots.
1. Ultra-thin, the height of the finished product is only 1.2mm
2. Large-angle 180-degree light-emitting angle, this is a new product: dot matrix COB. It has the following characteristics: 1. Ultra-thin, the height of the finished product is only 1.2mm
2. Large-angle 180-degree light-emitting angle, no light spots on the mounting profile
3. The light-emitting surface is low, because the new flip-chip product is used, which is 1mm lower than the conventional 2835 and 2216 light-emitting surface, which is especially suitable for ultra-thin profiles or neon tubes.
4. Long life, good stability, using the 150mA process flip chip specification, the actual use current does not exceed 20mA, the temperature rise of the chip itself is very low
5. Inheriting the advantages of conventional COB, the chip is directly packaged on the circuit board, and the heat dissipation effect is better. Moreover, because the traditional SMD lamp beads have a bracket, the thermal conductivity of the bracket is very low, which causes the heat to be inside the lamp beads and cannot be dissipated in time. out
6. No glare, soft light, which solves the glare problem of traditional patches
7. Stability. Compared with SMD lamp beads, the product has higher stability, because the chip is small, has no bracket, no gold wire, and the bottom of the design has a protective pad, and the design has no light spots.
