Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V
TOPLEDVISION PHOTONICS CO LIMITED- Certification:FCC, RoHS, CE, TUV Ce, IEC,En62471, Lm-80
- Power:4.8W,M
- Emitting Color:Warm White,Nature White,Cool White, R,G,B,O,Y,P
- Voltage:12V,24V DC
- IP Rating:IP20, IP65, IP67, IP68 Optional
- Size ( L*W*D ):5000*8*1.8mm
Base Info
- Model NO.:TLV-FSWQ60-3528-4.8W
- Type:Flexible LED Stripe LED Rope Light Waterproof
- LED Source:Quality SMD3528
- LED:with Good Heat Dissipation
- PCB:Double-Sided FPC
- Color:Warm White,Nature White,Cool White, R,G,B,O,Y,P
- Working Voltage:12V,24V DC
- Power Consumption:4.8W,M
- LED Luminous:7-8lm,LED
- LED Testing:IEC,En62471
- Usage:House,Commercial,Landscape,Decorative,Kitchen...
- Working Life:>30,000hours
- Warranty:2 Years
- Packing:5mts,Roll, Color Box Packing or Anti-Static Bag
- Certificates:TUV Ce, FCC, RoHS, IEC,En62471, Lm-80
- Transport Package:Inner Box and Carton, 100reels,CTN
- Specification:SMD3528 60LEDs,m
- Trademark:Topledvision
- Origin:Shenzhen, China
- HS Code:9405409000
- Production Capacity:50000m,Month
Description
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/4c/1e/0f/9e/cb03086a7417b3c2b13b1a89b49e1b65.jpg)

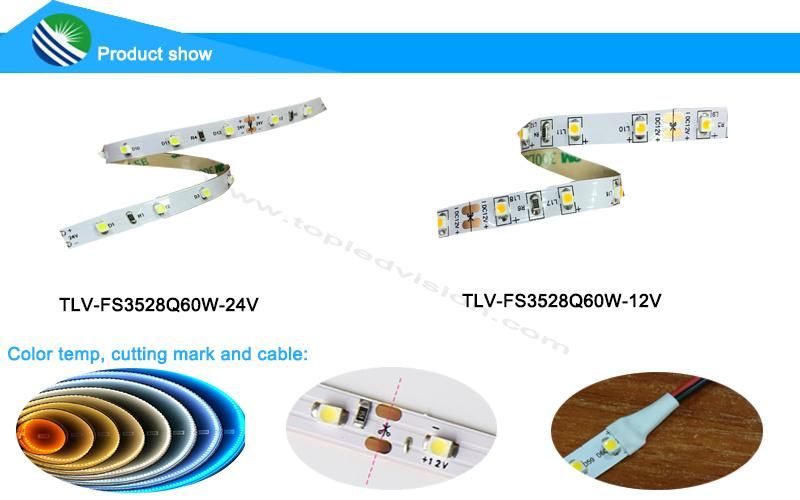

TLV-FS3528Q60W
Red/Green/Blue/Yellow/Orange/Amber...
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/a0/84/c6/39/e7c6807e4776038f8f1f1e2719eac838.jpg)
Features as follow:
1. LED source: 7-8lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our LED flexible strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/91/51/5c/ef/a2ef479aa90eaf24329b6923ec841c2d.jpg)

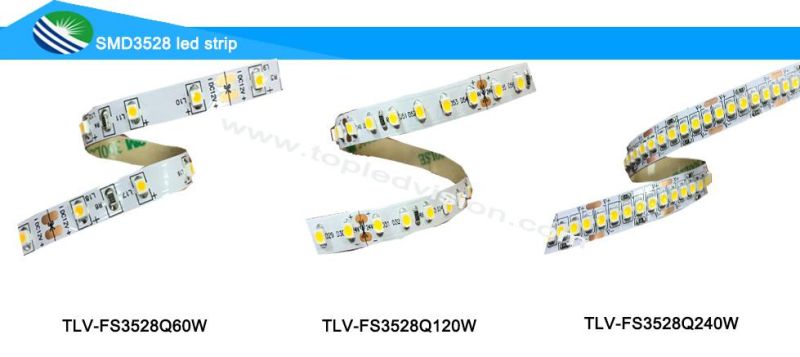

Model | LED quantity | Output | Power | PCB Width |
TLV-FS3528Q60W | 60LEDs/m | 12/24V DC | 4.8W | 8mm |
TLV-FS2835Q120W | 120LEDs/m | 12/24V DC | 9.6W | 8mm |
TLV-FS3528Q240W | 240LEDs/m | 12/24V DC | 19.2W | 10mm |
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/fe/3b/26/9d/27cd54929517928d6653d2aeeadcd8bb.jpg)

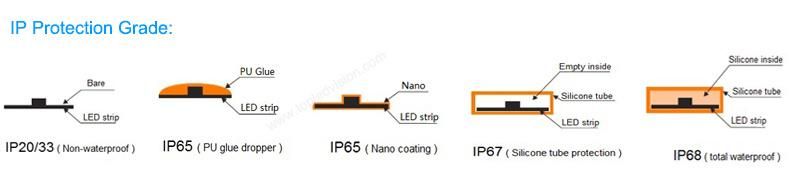

IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( PU glue dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/b3/81/5c/43/a1142416bc7c7ff8dc3a8f5b4109bc7c.jpg)

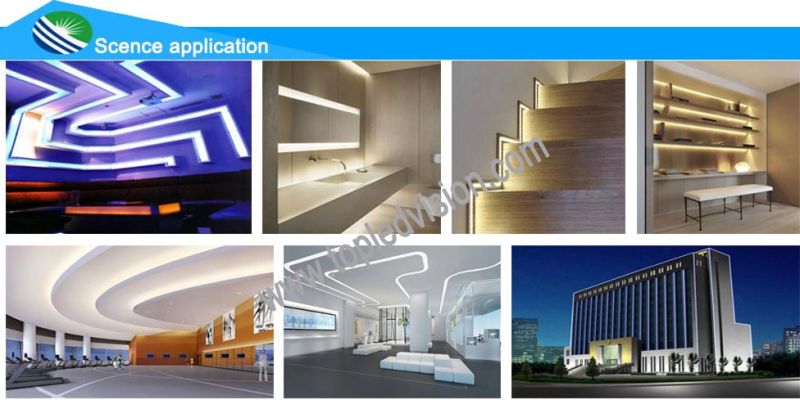

Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/f0/be/60/5f/0214fc82b0daaf2f0c9ac246bb975219.jpg)
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/ee/7f/b7/e7/d521adf4c85b702a47e87f0ecc765b74.jpg)
Packaging and shipping :
1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/80/88/33/af/587b406ccc2a5e062d73704614b238d9.jpg)
![Decorative Light 60LEDs/M 4.8W/M 3528 LED Strip Lighting DC12V 24V](http://www.112990.com/uploads/image/2021/92/fb/51/99/498532c310440c208a0e873eade49ee0.jpg)
Q1: Do you have free sample? A1: Yes, we can offer you free samples, excluding shipping cost. |
Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail. |
Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity. |
Q4: What's your delivery ways as usual? A4: Normally, we help you send the products by Express, Air or Sea transportation. |
Q5: What's the payment term? A5: We accept T/T, PayPal or Western Union, Cash. |
Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you. |

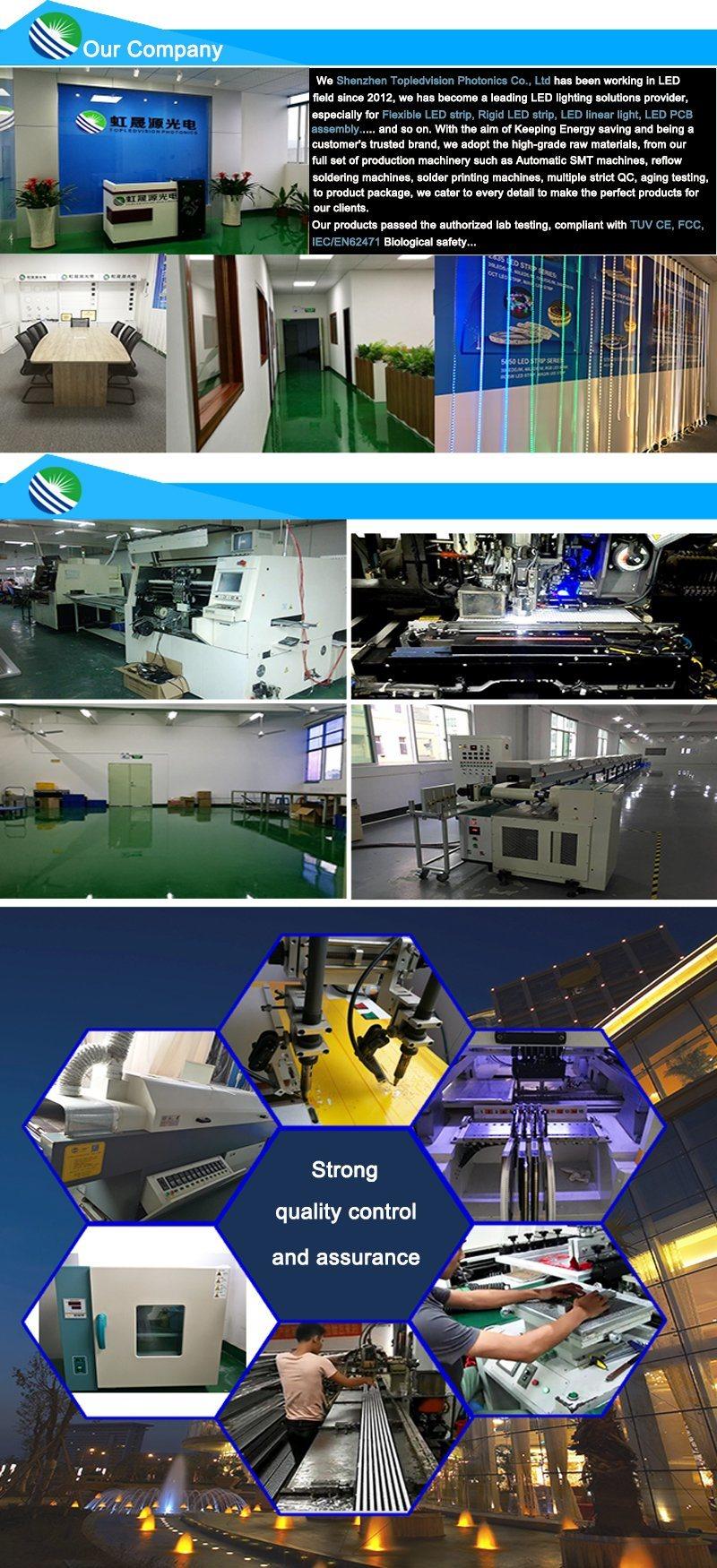

We give you a warm welcome to visit our factory at anytime.
