• Model NO.：RB0Z0WW08B-E-3
• FPC Width：8mm
• Lumens：790lm,Meter
• Min. Cut：50mm for DC12V, 100mm for DC24V
• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,OEM,ODM,Neutral
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. RB0Z0WW08B-E-3 FPC Width 8mm Lumens 790lm/Meter Min. Cut 50mm for DC12V, 100mm for DC24V Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/OEM/ODM/Neutral Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Dot free DC24V 320 chips/meter IP20 flexible COB LED strip lighting

Application
Suitable for interior lighting, office lighting, supermarket lighting, showroom lighting, automotive ship interior, etc.

Main features
Linear light emitting,no dark area, hot spot free;
Overall coating phosphor,good color consistency;
New COB production processing;
Longer soldering pad, stronger connections;
Pure copper FPC,good heat dissipation;
Products passed CE, RoHS, UL,TUV certification etc;

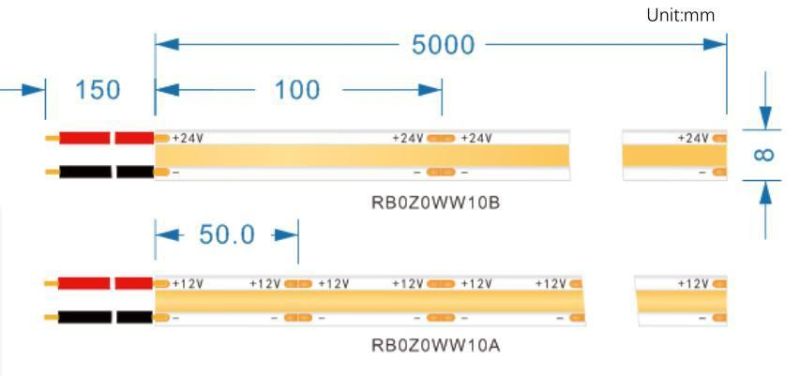

Main ParametersProduct Size:5000*8*1.5mm
Cutting Unit:DC24V:100mm(DC12V:50mm)
Chips Pitch:3.13mm
Chips Quantity:320 Pcs/m
Min. Bend Diameter:20mm
Mounting:3M
Operating Ambient:-25ºC~45ºC
Storage Environment:-25ºC~60ºC / 60% RH

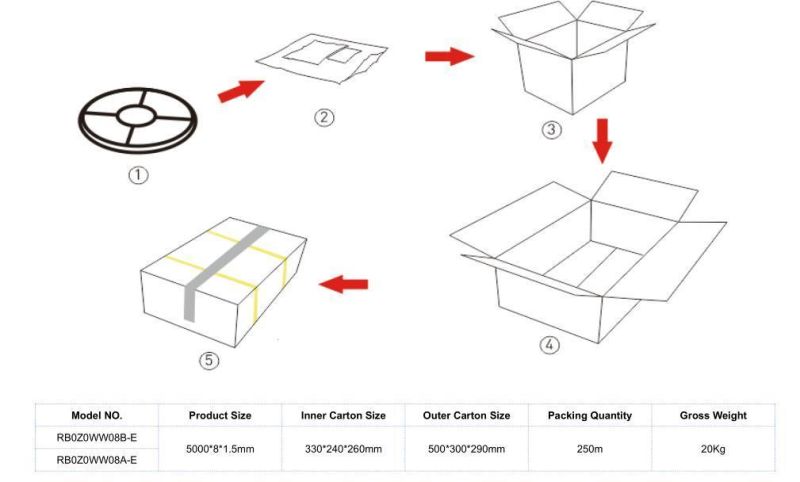

Package


Instructions
Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.;
Please do not bend the strip into an arc with a diameter less than 20mm and the twist angle per meter is less than 1080º to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid
damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: --25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
