• Model NO.：R0E0KW04B
• FPC Width：4mm
• Lumens：1056lm,M
• Min. Cut：50mm
• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. R0E0KW04B FPC Width 4mm Lumens 1056lm/M Min. Cut 50mm Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Dot free high brightness DC 24V 9.6W 2216 warm white 4mm 8mm FPC flexible LED tape LED strip light
Application
1.Covelight,backlight or edge light for signage.
2.Decorative lights,path contour light.
3.Ceiling integration.

Main features
1.Signle bin for producetion good color consistency.
2.High brightness SMD led CRI 90.
3.Dimmable by using dimmer controller.
4.Best cost performance,high color consistence.
5.Energy saving,environment-friendly,
6.Great design freedom thinks to min 25mm cuttability of producetion.
7.Toolless connection with the optional connect system.

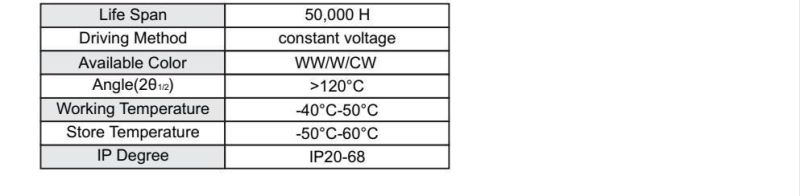

Environmental and Application Conditions

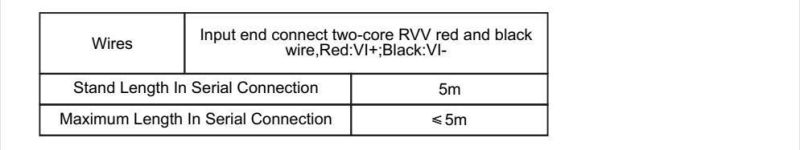

Wires & Series Connection Length

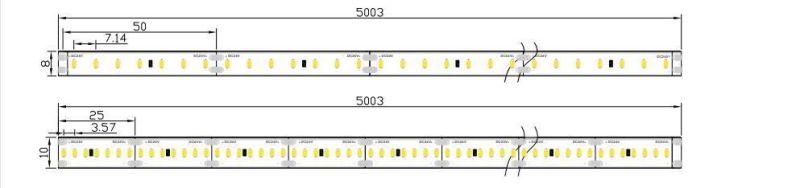

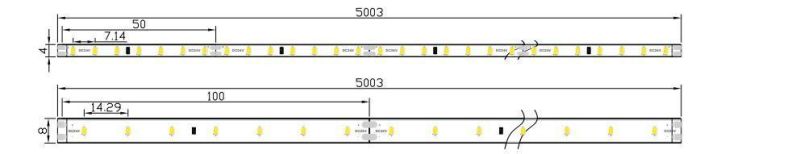

Dimension(Unit:mm):

Connection Diagram(Unit:mm):

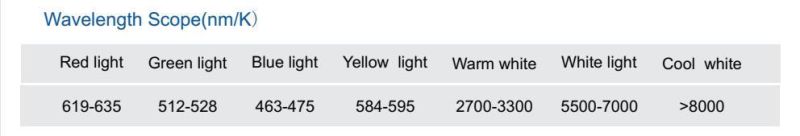

Wavelength Scope(nm/K)

Connection type
Packaging information


Notes
37*34*34cm
1.The thickness of the wires shall be adopted based on the possible current,products power,
length of the wire extention(5meter at maximum as recommended) and the loss in the wires
transit at low voltage.
2.The both ends of extention shall be dealed with as waterproof.
3.Don't work under the situations of touching in static-electronics environments or light on.
4.The modules can be connected to 5m at maximum and no exceed.
5.Suggest choosing high-qualited switch power( have shortelectronics ,overvoltage and
overloading protection function etc).
