• Model NO.：JA-BW5050RGB26
• LED Type：SMD 5050
• Color：Multi-Color
• Life(H)：25000
• Board：White
• Transport Package：Natural Packing
• Specification：CE ROHS
• Trademark：JIAN TECHNOLOGY
• Origin：China

Basic Info.

Model NO. JA-BW5050RGB26 LED Type SMD 5050 Color Multi-Color Life(H) 25000 Board White Transport Package Natural Packing Specification CE ROHS Trademark JIAN TECHNOLOGY Origin China

Product Description



Description:

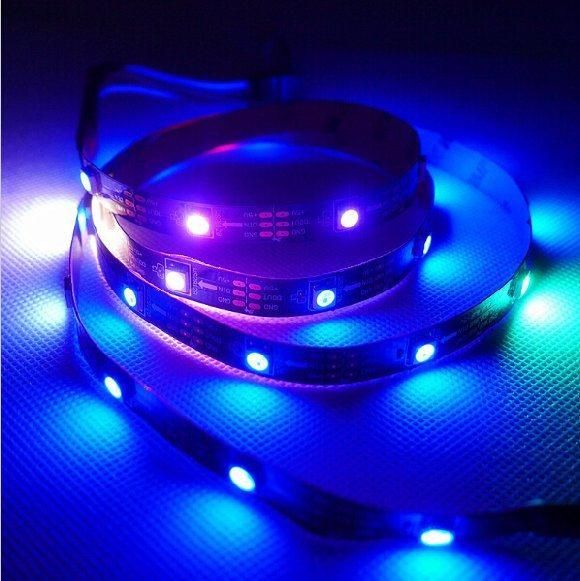

• 1.LED Type: 5050SMD with IC WS2812

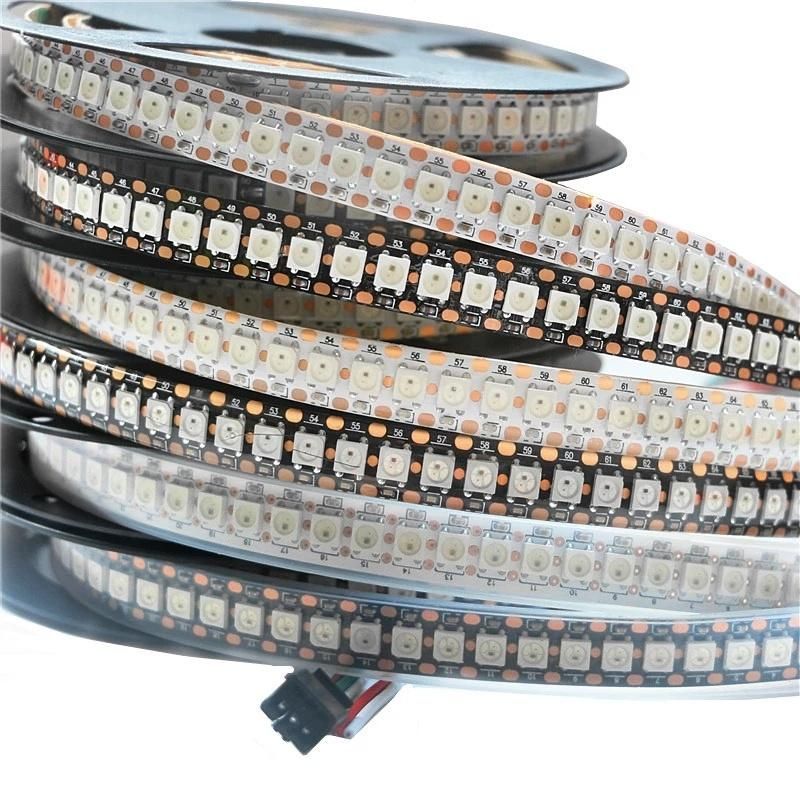

• 2.PCB color:White PCB / Black PCB

• 3.LED numbers:144LEDs/m

• Strip Length:0.5m/1m

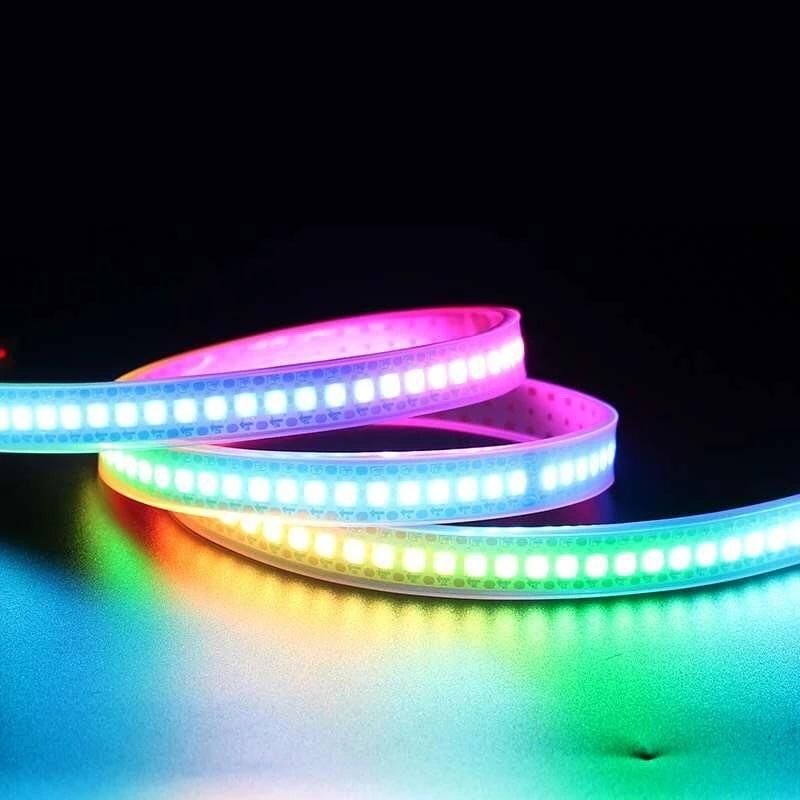

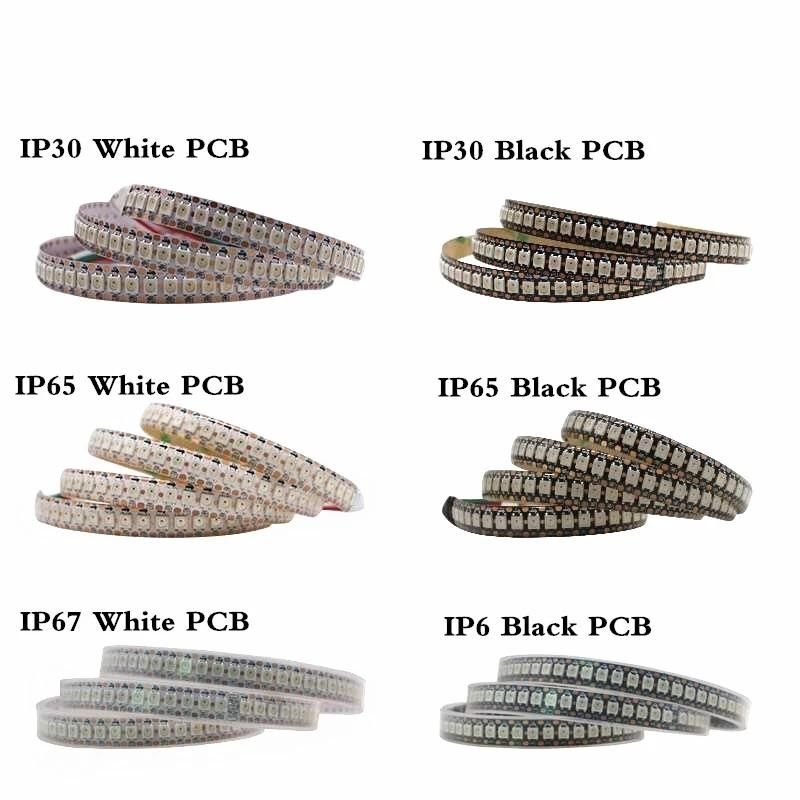

• 4.Waterproof Protection class :IP30 No Waterproof                                                                                                                                                                          IP65 Waterproof in Silicon Coating                                                                                                                                                    IP67 Waterproof in Silicone Tube

• 5.PCB Width:144leds/m strip ----12mm

• 6.LED resource: WS2812B led(5050 SMD RGB LED with built-in improved version of ws2812 ic)                                                                LED:each LED is separately controlled
  IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)                                                                                               of IC: (1 IC drives 1 led chip)

• 7.Operating voltage:DC 5V

• 8. Operating temperature: -20 to 50 °

• 9.Viewing Angle: 120 °

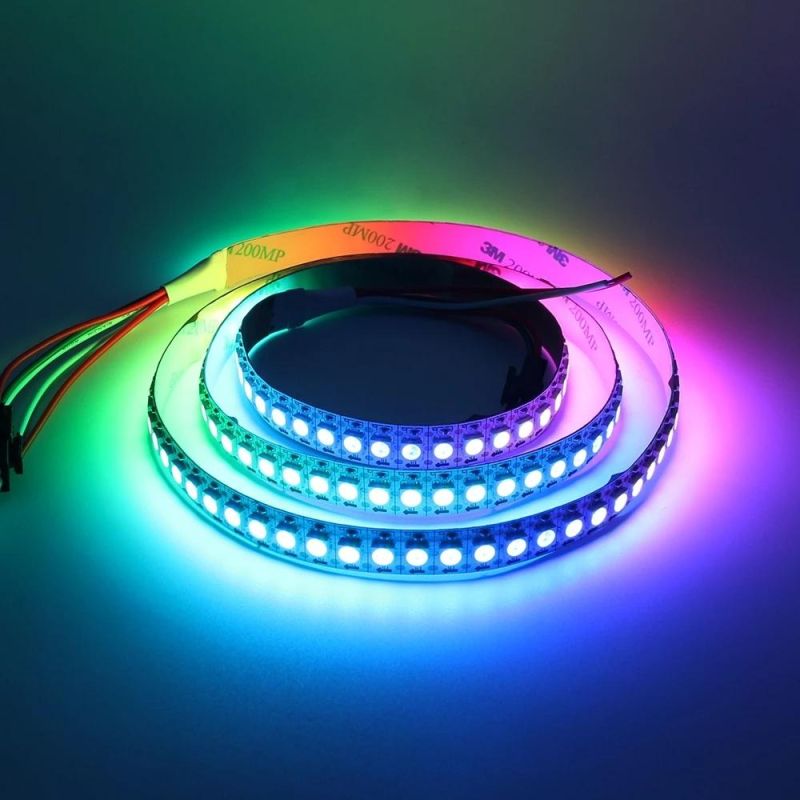

• 10.IP30/IP65 Strip Have Double side Adhesive Tape On The Back  ,                                                                                                          Ip67 Strip has not Double Adhesive on the Back , Installation Surface Must Be Smooth, Clean And Dry.

• 11.Cuttable:every LED is cuttable

• 12.Colors:Full color RGB, dream color changing



Application:

• Making led screen, led wall, advertising board, apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.



Package Include:

• 1pcs led strip (not include any controller or adapter,need to order separately)



Connection:

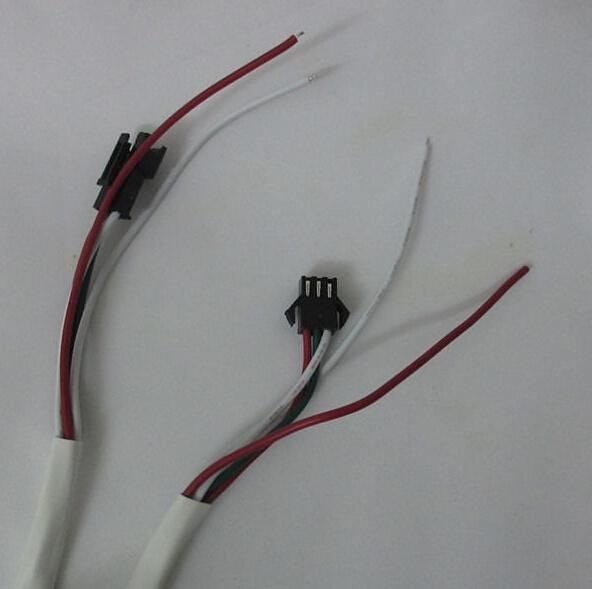

1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support ws2811; When use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

How to Order



1. Select the product, contact with us by email, whatsapp, skype, or online message in the website, your inquiry will be replied asap within 0-12 hours in working days. How to Order

2. Confirm the price of the product with us.

3. Confirm the product by sample

4. Place the official order , confirm all business terms.

5. The order will be performed exactly as request and confirmed sample by our production dept.

6. When the production is finished, after the performance of QC and transportation packing, we delivery the products according to terms of order

7. OEM & ODM order, customner's inspection are all welcome

8. We exactly follow the requested time of order for the delivery.



Warranty:

12 months
