12V 24V LED Light Rigid Strip for Light Boxes
MSS LED Lighting Co., Ltd.- Certification：Ce
- Shape：T - Profile
- Grade：IP63
- Application：Bar, Lighting, Advertising, Car, Furniture, LED Li
- Length：Customized Length Available
- LED Light：Waterproof LED Light
Base Info
- Model NO.：SLB3X3535-790B210
- Type：LED Light Bar
- LED Brand：CREE
- Guarantee：5 Years
- Light Source：SMD 3535
- Luminous Flux：78lm,W
- Transport Package：Carton Box
- Specification：210*25mm, 350*25mm, 420*25mm
- Trademark：MSS LED,OEM,ODM
- Origin：Shenzhen, China
- HS Code：9405990000
- Production Capacity：30000 PCS,Month
Description
Beam angleMin. CCT or wavelength Typ. CCT or wavelength Max. CCT or wavelength Min. Lumen Max. Lumen SLB3X3535-790B210 6000 K 7000 K 8000 K 510 lm 620 lm 12°X56°

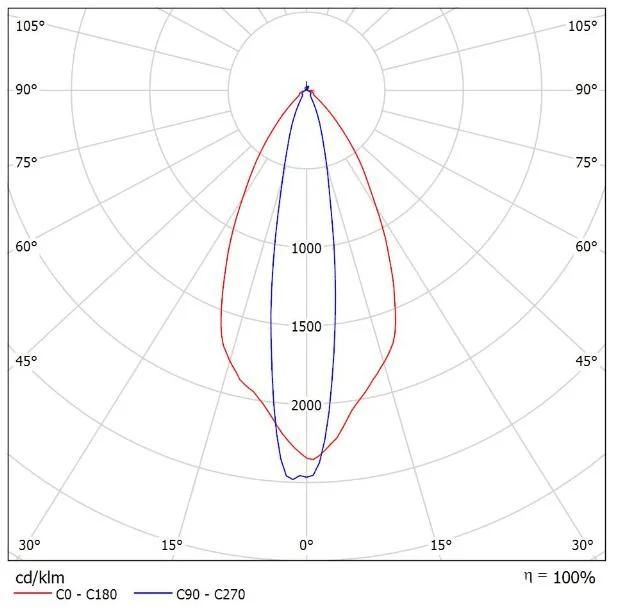

LED module light distribution graph
Attention1. Max. number of modules of one chain is 10pcs from power supplier to single end.2. The given illuminance parameters ensure illuminance on the surface. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.More brightness is obtained if distances between LED modules are reduced.3. The LED module itself and all its components may not be mechanical stressed.4. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.5. The design of the housing should be according to the IP standards in the application.If surge protection structure not within power supplier, a lightening protector should be needed additionally.

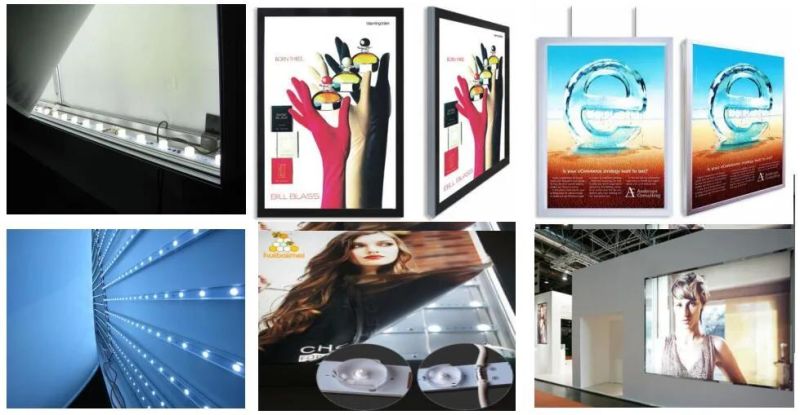

Applications
1. Commercial standing lighting2. Light box lighting3. Logo lighting4. Line/shape lighting
Package
1. Outal carton:51.5x29.5x24cm, Inside the carton:250x27x20mm,
2. 1pc per chain,20pcs chain in one layer . (20pcs in one layer).
3. 10 layers in one outal carton . ( 200 pcs in one outal carton).
