• Model NO.：TLV-FS2835Q120CCT
• Type：CCT Flexible LED Strip Light
• LED Suppliers：Xuyu,Honglitronic,Osram,Samsung
• LED Chip Brand：Sanan ( Epistar , Samsung Optional )
• LED Material：Packaged by 99.99% Pure Gold Wire, Red Copper Pad
• LED Bins：2-Step,3-Step,6-Step, Same Bin for Each Order
• LED Luminous：24-26lm, 26-28lm, 30-32lm,LED
• PCB Material：Double-Sided Pure Copper Circuit Board
• PCB Width：8mm ( 10mm Optional )
• PCB Thickness：2oz ( 3oz Optional )
• LED Testing：IEC,En62471, Lm-80
• Adhesive Tape：Original 3000lse 3m Tape
• Packing：5m,Roll, Color Box , Anti-Static Bag
• Warranty：3 Years
• Certificates：TUV CE, FCC, RoHS, IEC,En62471
• Transport Package：Inner Box and Carton, 100reels,CTN
• Specification：5000*8(10)*1.3mm
• Trademark：Topledvision
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：100000PCS,Month

Product Description

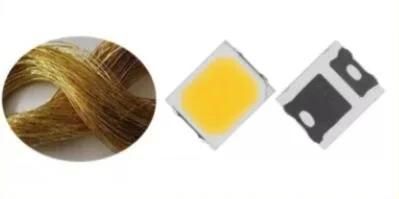

Detailed PhotosLED CHIP:

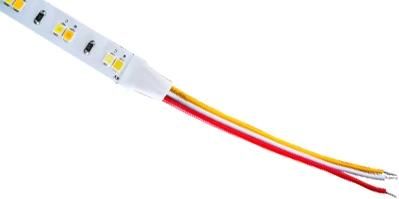

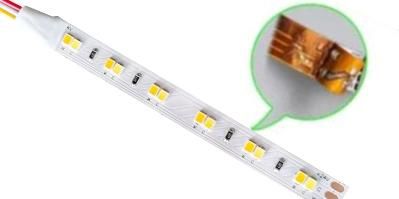

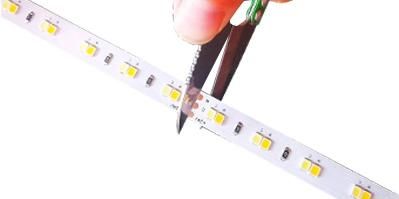

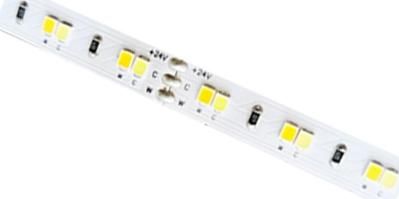

Our SMD LED use 99.99% gold wire which provide very good heat dissipation, long life span and low light decline. All our LEDs meet LM-80 testing standard, less than 3% decline after 5000 hours working.Our flexible PCB are all high quality Electrolytic copper double layers FPC at least 2 ounces, or 3 ounces in particular models. So there is low voltage drop and very good heat dissipation too.Free to cut the length you want, DIY cutting, 24V 12leds as a min unit by cut, to avoid wasting.Welding PCB:Rich skilled works are selected to solder the led strip light that can enhance to robustness of PFC board and its electric conductivity. Also can decrease the possibility of tact weld,missing soldering quality can be more guaranteed.Cables: 20AWG
