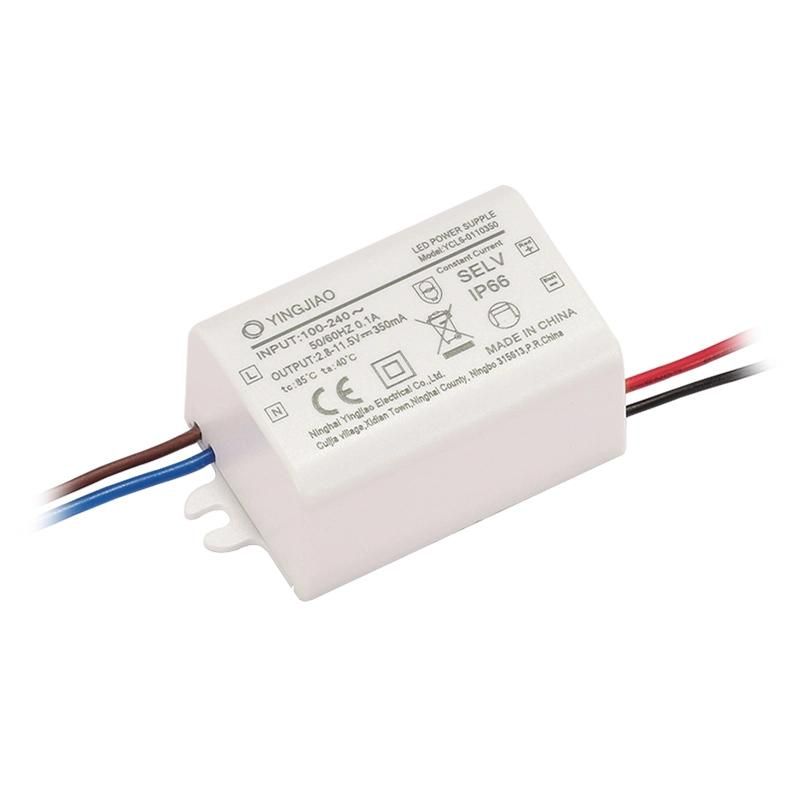

• Model NO.：YCL6
• Output Frequency：50,60Hz
• Transport Package：1pcpe Bag+White Box, , 100PCS,CTN
• Trademark：Yingjiao
• Origin：Zhejiang, China

Model:YCL6Power:6W max.Input:100-240VAC 50/60HzOutput Voltage:12-24VOutput Current:250MA-500MAInrush Current:65 Amps max. at 230VAC/50Hz,full loadLeakage Current:2.5mA Max. at 264VAC inputNo Load Power Consumption :<0.5WProtections:Short Circuit /Over Current /Over Voltage/over temperature protectionShort Circuit Protection (SCP):Protection to Zero VoltageOver Voltage Protection (OVP):≤Vout*150%Over Current Protection (OCP):110%-180%Working TEMP.:-20°C-50°CWorking Humidity:5%-90% RH non-condensingStorage TEMP.,Humidity and altitude:-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. Certificates and approvals:CE,EMC,RoHS,REACHEMI EMISSION:

Conducted disturbance at mains terminals:EN 55015                        Radiation

Test&Conduction Test: EN 55015                                            Magnetic Emission:EN55015:2013
Harmonic Test : EN 61000-3-2
Voltage fluctuation and Flicker Test : EN 61000-3-3

EMS IMMUNITY:

ESD  Test:IEC 61000-4-2
RS    Test:IEC 61000-4-3
EFT/B Immunity   Test:IEC61000-4-4
Surge Immunity :IEC61000-4-5
Conduted RF Immunity:  IEC 61000-4-6
Power frequency

magnetic field:IEC 61000-4-11

Voltage dips and interruptions,100% reduction: IEC 61000-4-11   Voltage dips and interruptions,30% reduction: IEC 61000-4-11

MTBF:100000 hours minimum at full load at 25 ambientLife:3-5 years alternativeDimension:55*29.5*24mmWeight:60gPacking:100PCS/CTN, CAN BE CUSTOM

1 second max./40 MS max.

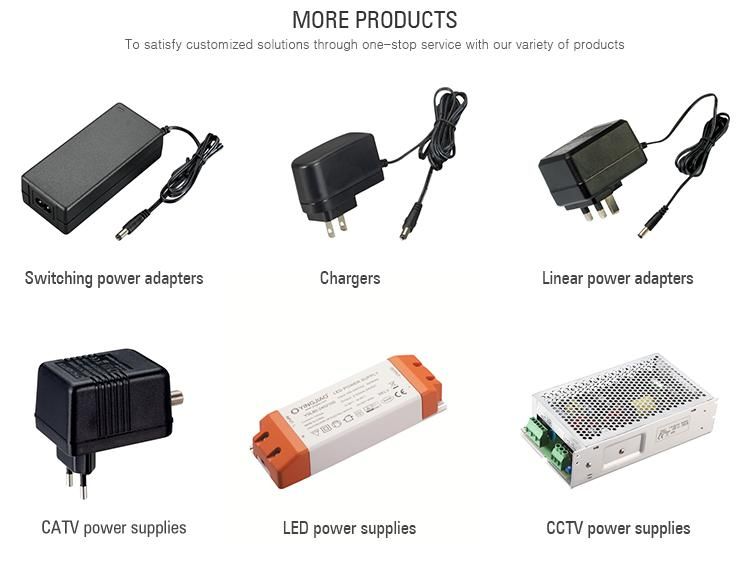

MORE PRODUCTS





ABOUT YINGJIAO

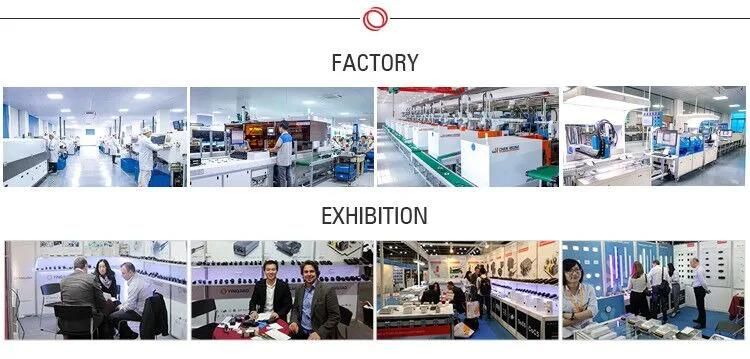

FACTORY&EXHIBITION

CERTIFICATE

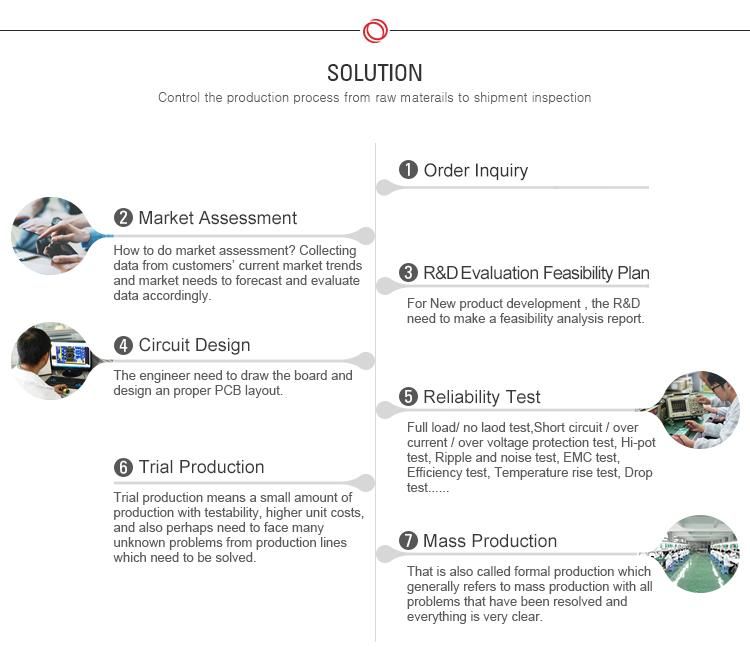

SOLUTION
