• Model NO.：L112GW18B-0.5,L112GW18B-1.0,L112GW18B-1.2,1.5
• Lifetime：50000 Hours
• Tc Temperature：80 Centigrade Degrees
• Dimming Mode：Dimmable
• Transport Package：Carton Packaging
• Specification：0.5M,1.0M,1.2M,1.5M,pc
• Trademark：OEM,ODM,MYNICE,Neutral
• Origin：China
• HS Code：9405409000
• Production Capacity：500, 000PC,Month

Basic Info.

Model NO. L112GW18B-0.5/L112GW18B-1.0/L112GW18B-1.2/1.5 Lifetime 50000 Hours Tc Temperature 80 Centigrade Degrees Dimming Mode Dimmable Transport Package Carton Packaging Specification 0.5M/1.0M/1.2M/1.5M/pc Trademark OEM/ODM/MYNICE/Neutral Origin China HS Code 9405409000 Production Capacity 500, 000PC/Month

Product Description

 Magic back to back led rigid light strip for double side light boxes or single side light boxes

Application
- Single & double side light box,
- Best for 80mm to 300mm depth (3inch to 12inch).

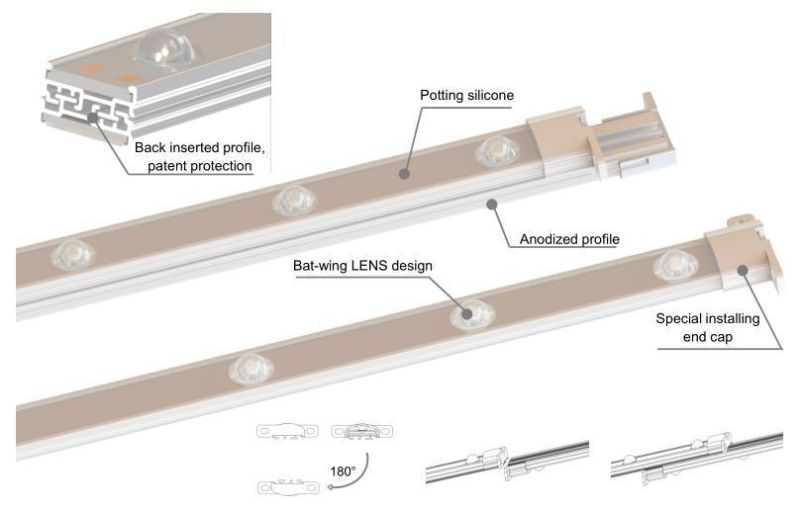

Main features
- Back inserted extruded aluminum design, patent protection,
applied to single side and double side light box.
- Special end cover design, can be installed in single side and
double side light box.
- Anodized aluminum profile, strong corrosion resistance.
- High quality potting silicone,  Strong resistance to yellowing.
- Good optical performance due to bat-wing lens design.
- 5 Years warranty.
- 7W/pc(0.5M), 13.5W/pc(1M), 16W/pc(1.2M), 20W/pc(1.5M)
- IP66.

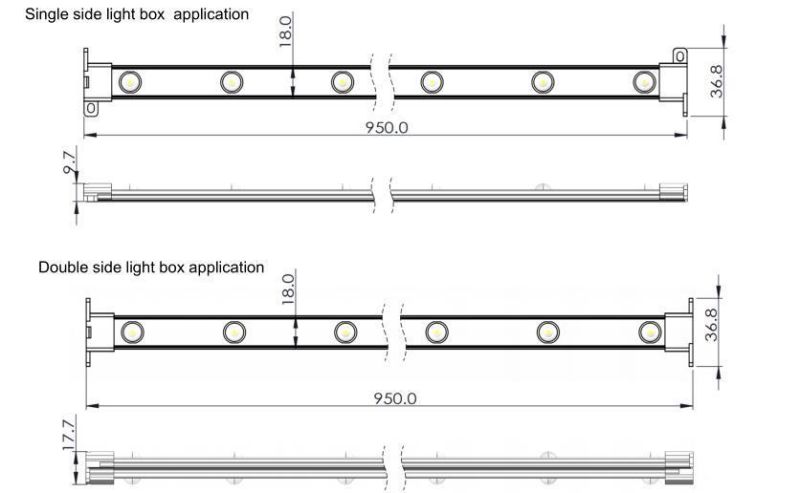

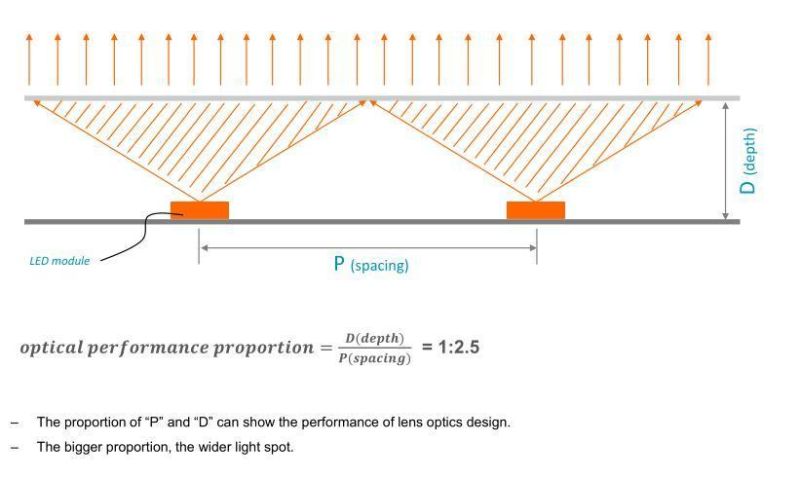

Optics Technology

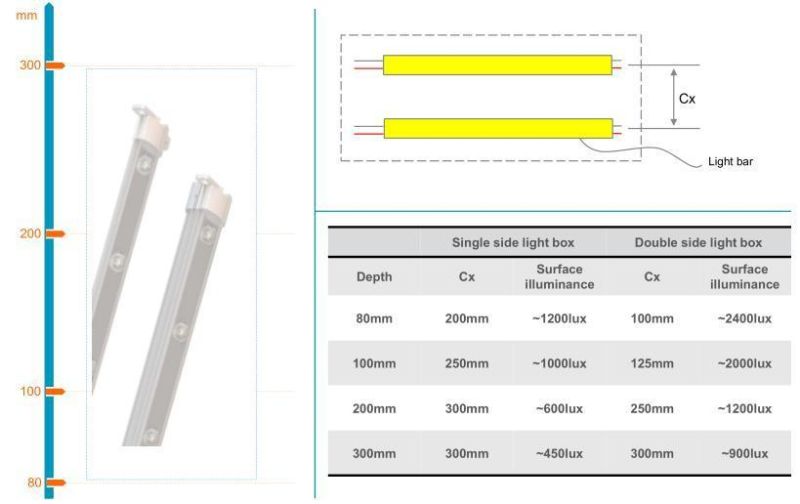

Best applicable light box(Application recommendation)

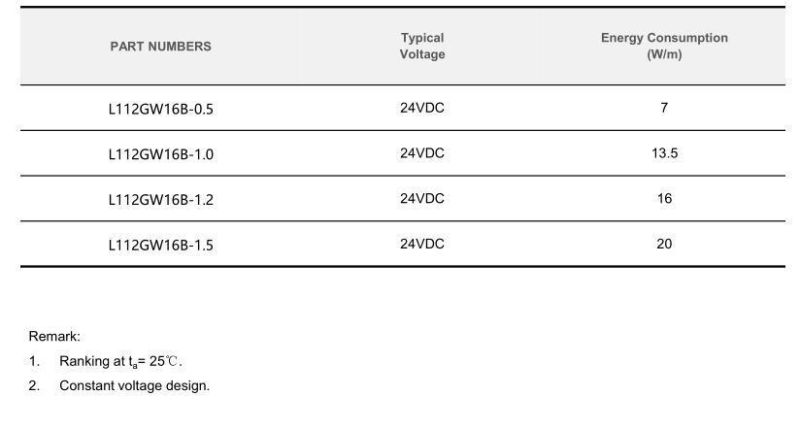

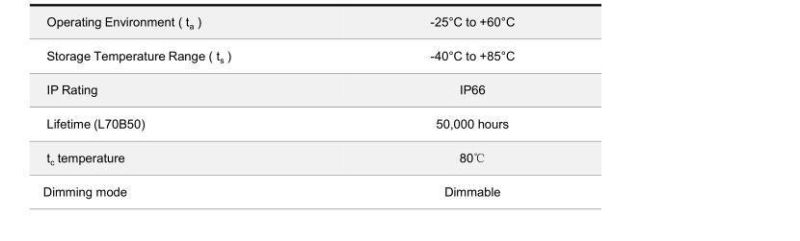

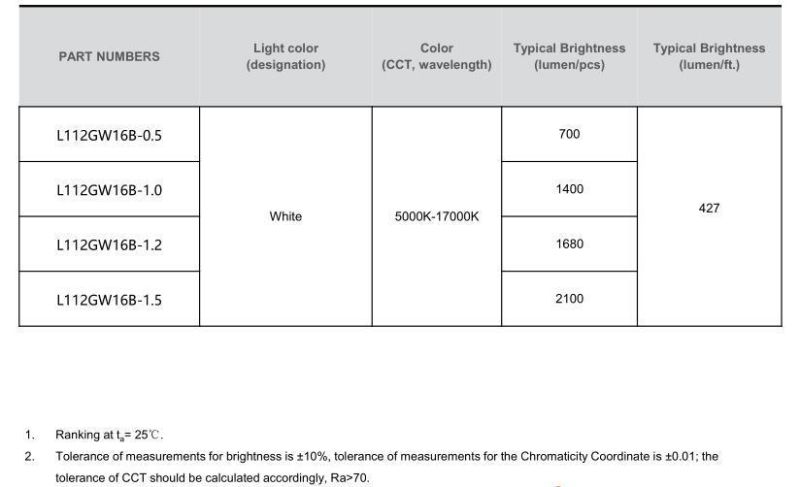

Main Parameters

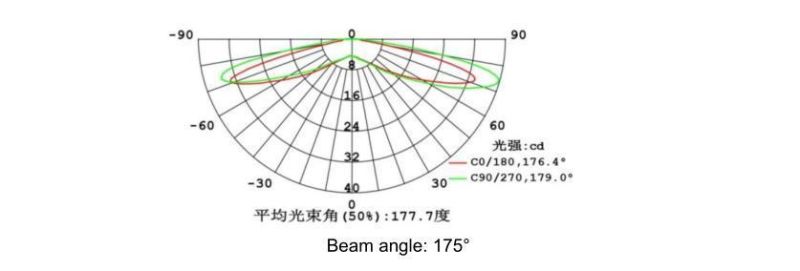

Light distribution

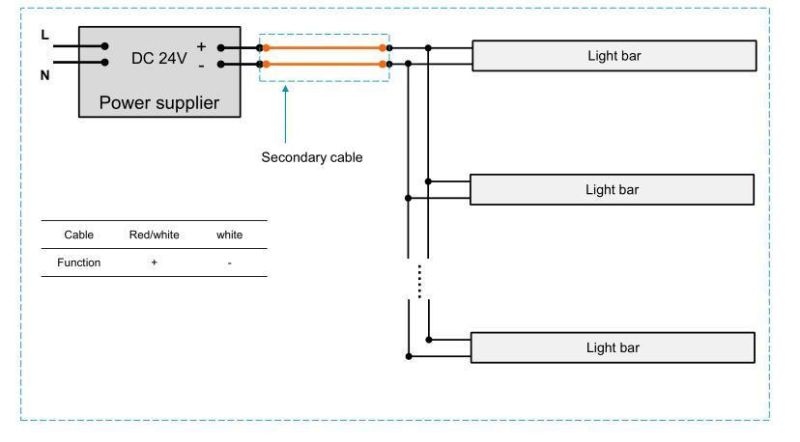

Product wiring diagram

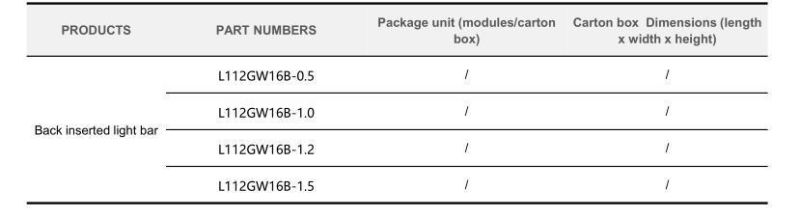

Package




Instructions
 Installation of LED light bars (with power supplies) needs to be made under consideration of all valid regulations and
norms.
- Installation by qualified electrician only.
- Parallel connection is mandatory for safe electrical operation. Serial connection of LED light bar is discouraged.
Unbalanced voltage drop in serial connection can cause hazardous overload
- Electrical contact is achieved with the contact cables or the terminals of the light bars. Please refer to the technical data
for maximum number of LED light bars that can be operated on one control gear.
- To avoid mechanical damage, the LED light bars have to be attached securely to the intended mounting surface. It is
recommended to avoid heavy vibration.
- LED light bars are dimmable by means of PWM (pulse width modulation)
