• Model NO.：DV-FL-60S2835-W-12
• CRI：80
• Cutting：5cm; Every 3LEDs Cuttable
• Transport Package：Carton
• Specification：31*31*13cm
• Trademark：Devry
• Origin：China
• Production Capacity：100000

Basic Info.

Model NO. DV-FL-60S2835-W-12 CRI 80 Cutting 5cm; Every 3LEDs Cuttable Transport Package Carton Specification 31*31*13cm Trademark Devry Origin China Production Capacity 100000

Product Description

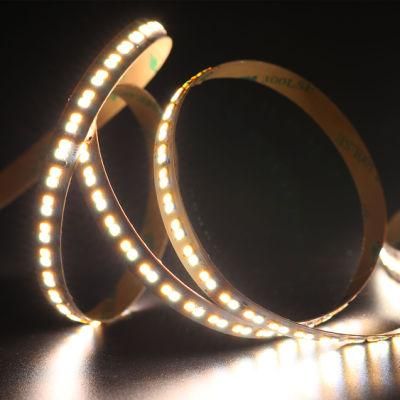

2835 LED Strip
Item no: DV-FL-60S2835-W-12


Description
2835SMD Flexible Strip Light is widely used in the indoor and outdoor lighting projects, no matter commercial lighting or home lighting. We have 60leds/M, 120leds/M, 240leds/M for your selection. Width of PCB is 5mm and 8mm. It is a free design decoration lighting. Application is mostly in  Signage, light box, architecture, bridge, roof, garden, indoor shop fitting, cabinet, furniture, background, hotel etc. Strip is flexible and easy to be installed, free cut, free bend, free connect. Varity color are available.

Advantage and Features
*Long Lifespan is more than 30,000hours.
* White, Color temperature as 3000K, 6500K, 10000K. Red, Yellow, Blue, Green, Amber. Pink. Purple.
* Low voltage, safe LED strip. DC12V.
* Width of the PCB is 5mm/8mm/10mm.
* led quantity, 60leds/m; 120leds/m; 240leds/m
* Protect degree: Indoor IP20, Outdoor IP65.
* ERP Spectroscopy.
* Light instantly without warm-up.
* Decade is 5meters.
* Bent freely.
* Easy to install and preserve; with 3M self adhesive tape.
* All of materials are accord with RoHS standards.
* Application: Letter signage, channel letter, 3D letter, Light box, decoration lighting, shop fitting, cabinet;
* Packing: 5meters/roll.

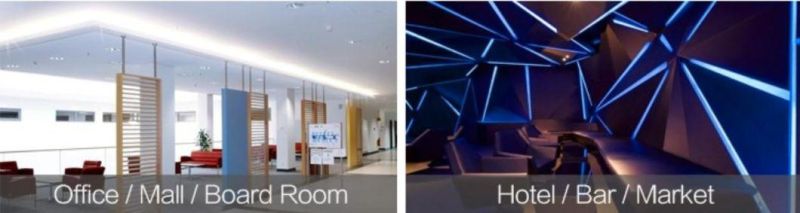

Application

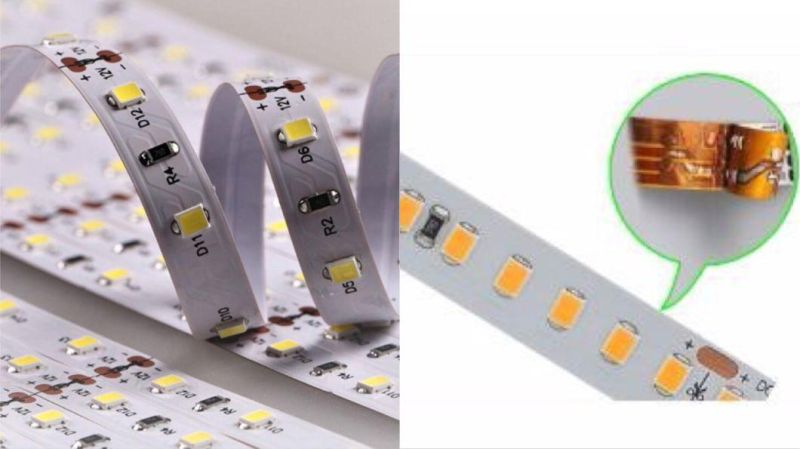

Details
Installation Instruction


1. Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully

  loaded to ensure that the power supply works at the correct and stable voltage.

1. We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the

  case, length can be made over 5 meters/roll.
3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .
5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).



Attention
1. Pay attention to handling with care;
2. Don't install the product in corrosion, flammable and explosive places;
3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required;
4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and       moving;
5. Ensure correct and reliable connection of all joints;
6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
7.The LED strip and accessories can't be squeezed or folded;
8. PCB conductive parts can't be damaged when installation;
9. Installation must conform to electrical safety standard. The LED strip can only be installed by
    Professionals;10. Ensure power supply transform operating load with transformer;11. When install on metal or conductor surface, insulation protection need to be provided to the contact area;12. Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip;13. When installation, please prevent static electricity;14. If you have any questions about this product, please consult our salesman.

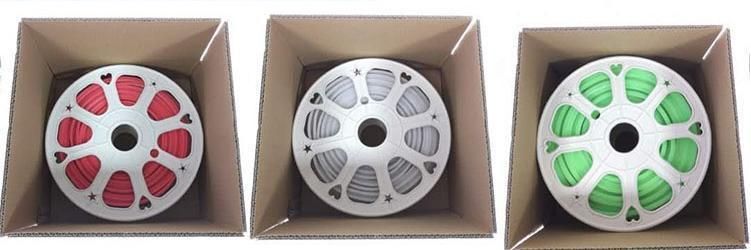

PackingQA&QC
