• Model NO.：FLW5050-24060-RGBWW
• Beam Angle：120degree
• SMD：5050(5chip in 1 LED)
• CRI：Ra >80
• Working Hour：50000hours
• Warranty：3years
• Transport Package：Reel to Antistatic Bag, Then in Paper Box
• Specification：5meter per reel, 10meter per reel
• Trademark：Easing Home
• Origin：China
• HS Code：9405409000
• Production Capacity：10000meter Per Day

Basi Parameter:LED Qty60LED per meterSMD Type5050  ( 5 chips in 1 LED)PCB Width12mmPCB Material2Ounce FPCPCB Color:white, Black, BrownWarranty3years
Specification ParametersLuminous Flux(lm)RGB: 360-385lm
WW+PW: 595-625lm
RGB+WW: 620-645lm
RGB+PW: 685-715lm
RGB+WW+PW: 930-965lmInput VoltageDC12V / 24VCRIRa >80ColorRed+ Blue + Green+ white + warm white ( 5chips in 1)Power16.8W per meterCurrent/LED70mABeam angle120degreeWorking temperature-20ºC~+45ºCMinim cuttable length100mm (6LEDs 24V)
50mm (3LEDs 12V)
AcceessoriesEnd cap, mounting clips, 300P 3M tape

Adviced Aluminum Channel:
Any aluminum profile that suitable for 12mm PCB LED strip. we have over 300 types LED profiles. if you
have special request, pls contact us for more details on our profile catalogues. thanks.




About our production of LED strips:

We have been devoted in manufacturing LED strips since 2009, and we pack the LEDs and do the SMT ourselves to save the cost and guarantee our qualities and save lead time. Our advantages are as following:
1) Wide selection of color:  from static white, R,G,B, tunable white, RGB+W  to RGB+TW, or any special color on customer's request.
2) We pack LEDs with pure gold wires and use 2 ounce PCB to ensure good quality and performance of our products.
3) No  MOQ requirements on strips.
4) Our production capacity is 10,000m/ day,  urgent orders of IP20 tapes commonly could be finished within 2-4 days.
5) We have our own Bin Code system, each color has it's special Bin Code to allow us guarantee the the color consistence in different orders.



Products features and our services:

1. Low power consumption, energy efficient and environment-friendly;
2. Easy and low cost maintenance;
3. Wide range of color and application;
4. Flexible, waterproof and stylish design;
5. Max.20meters per reel;
6. Cutting according your actual demand and reduce waste;
7.OEM/ODM available: we could print your logo on PCB, make strips per your special requirements on color, lightness,  length, packing and service lift, etc.
8. Long life span with 3 years warranty.

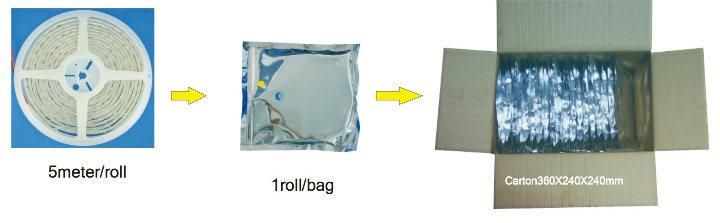

Package:

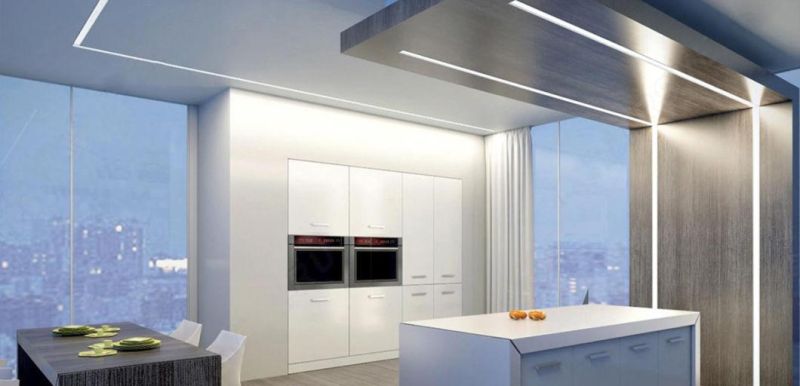

Application:

The product apply advertising signs,hotel,KTV,computer machine box,mechanical equipment,car




FAQ

Q1:Are you manufacturer?
A: Yes, We are manufacture since from 2008, is a well-known company with good reputation in China.

Q2:If I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.

Q3:What's your MOQ?
A: 1 metric ton for each model.

Q4:How do you charge the mold fee?
A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.

Q5:What is the difference between theoretical weight and actual weight?
A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.

Q6: How do you quote price, per ton or per meter?
A: We provide more than two pricing modes

Q7:How can you ensure high quality?
    1) We have our own material production workshop and die factory for 10 years.
    2) 300 workers, and workers should be well trained before go to work.
    3) 100% QC on line and final inspection, no any defective products can be out from our factory.
    4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate,  etc.

Q8:What's your payment term?
A: 30% T/T deposit + 70% T/T before loading the container .
