8mm 90LEDs/M 12V High Brightness SMD 3014 LED Light Strip

Mynice Optoelectronics Co., Ltd.
  • Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
  • Power：9W
  • Emitting Color：Changeable
  • Voltage：12,24V
  • IP Rating：IP68
  • LEDs/M：90

Base Info

  • Model NO.：R090EW08A
  • Lumens/M：848-990
  • FPC Width：8mm
  • Transport Package：DHL
  • Specification：37*34*34cm
  • Origin：Shenzhen
  • HS Code：9405409000
  • Production Capacity：5000000

Description

ModelLED TypeLeds/mWatt/mVoltageLumens/mFPC WidthR096EW05A3014969.612V910-10565mmR0C0EW05A30141201212V1131-13205mmR0G8EW06B301416813.424V1580-18486mmR060EW08A/B3014607.212/24V514-6008mmR090EW08A301490912V848-9908mmR0C0EW08A/B30141201212/24V1131-13208mmR0C0EW10A/B30141201212/24V1131-132010mmR0X0EW08B301424019.224V2056-24008mm
Environmental and Application Conditions:Life Span50000HDriving Methodconstant voltageAvailable ColorR/G/B/Y/WW/W/CWAngle>120ºCWorking Temperature-40ºC-50ºCStore Temperature-50ºC-60ºCIP DegreeIP20-68
Wires & Series Connection Length:WiresInput end connect two-core RVV red and black wire , Red : VI+;Black : VI-Stand Length in Serial Connection5mMaximum Length in Serial Connection≤5m

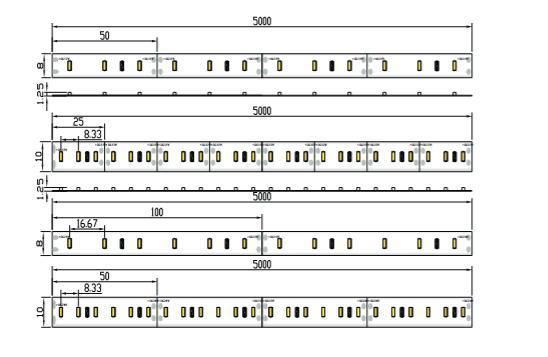

Dimension(Unit:mm):

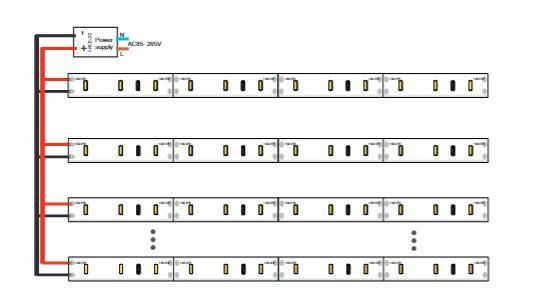

8mm 90LEDs/M 12V High Brightness SMD 3014 LED Light StripConnection Diagram(Unit:mm):
8mm 90LEDs/M 12V High Brightness SMD 3014 LED Light StripWavelength Scope(nm/K):Red lightGreen lightBlue lightYellow lightWarm whiteWhite lightCool white619-635512-528463-475584-5952700-33005500-7000>8000

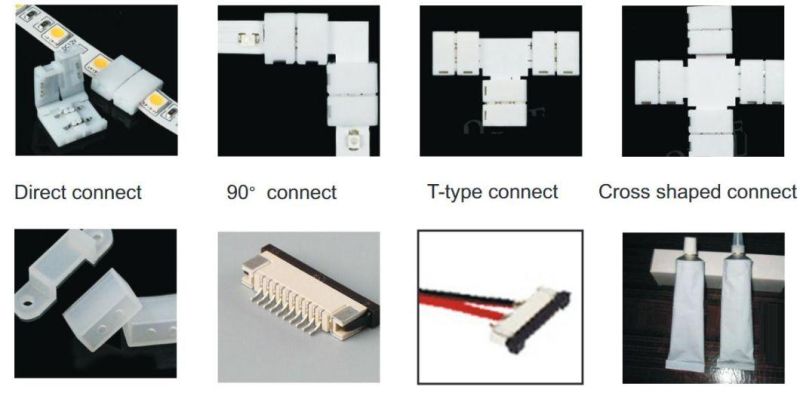

Connection type
Standard:2PIN-8mm,2PIN10MM,4PIN10MM
8mm 90LEDs/M 12V High Brightness SMD 3014 LED Light Strip
Packaging information:
8mm 90LEDs/M 12V High Brightness SMD 3014 LED Light Strip
Notes:

1.The thickness of the wires shall be adopted based on the possible current,products power,length of the wire extention(5meter at maximum as recommended) and the loss in the wirestransit at low voltage.

2.The both ends of extention shall be dealed with as waterproof.

3.Don't work under the situations of touching in static-electronics environments or light on.

4.The modules can be connected to 5m at maximum and no exceed.

5.Suggest choosing high-qualited switch power( have shortelectronics ,overvoltage andoverloading protection function etc).
