• LED Luminous：7-8lm,LED
• Size ( L*W*H )：5000 X 8X 1.8mm
• LED Qty/M：120LEDs,M
• CRI：70-85ra (90ra)
• Lifespan：>50000hours
• Warranty：2 Years
• Packing：5(10)Mts,Reel
• Packing Qty：100reel,Carton
• Color Temp：3000k, 4000k, 6000k
• Transport Package：Anti-Static Package
• Trademark：TLV
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：100000mts,Month

Basic Info.

LED Luminous 7-8lm/LED Size ( L*W*H ) 5000 X 8X 1.8mm LED Qty/M 120LEDs/M CRI 70-85ra (90ra) Lifespan >50000hours Warranty 2 Years Packing 5(10)Mts/Reel Packing Qty 100reel/Carton Color Temp 3000k, 4000k, 6000k Transport Package Anti-Static Package Trademark TLV Origin Shenzhen HS Code 9405409000 Production Capacity 100000mts/Month

Product Description

As a LED strip professional manufacturer, most of our LED strips supply to Amercian and Europe in lighting project, and we have a strict control and testing in quality.
LED strip are used for decoration lighting widely, we develop many models for all kind of installing conditions, Strips have good color consistency and reliable quality for each batch.


SMD3528 LED strip light performance as follow:
1. New silicon processing and stronger silicon protection could be made IP65 and IP68 waterproof.
2. Silicon is more flat and equal on the surface of whole strip and no different color.
3. Fast production and not easily turn yellow.

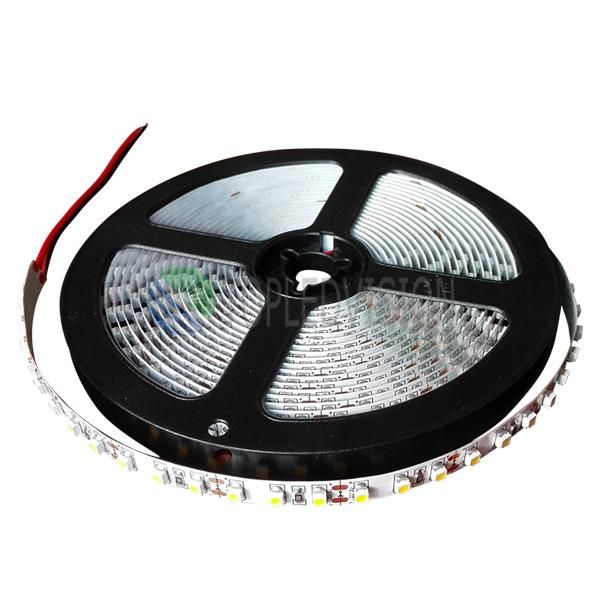

High Brightness SMD3528 LED Strip Light 120Leds/M ( CE, RoHS Approved)


features as follow:
1. LED source: 6-7lm/LED high brightness and Less than 3% low decline after 3000hours working.
2. Modular design:every 3leds or 6leds as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely.
5. FPC size:10mm width FPC and smaller components, LED strip is more flexible.
6. Support customized size: you can cut the LED strip into the size you want.
7. Dimming support: by manual or IR, be able to adjust the LED strip brightness.
8. Lifespan: More than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of led strip and maintenance free.
10.IP rating: Non-waterproof(IP20), Silicon/PU(IP65), and total waterproof(IP68) processing, be able to install in    any indoor/ outdoor environments.
11. ≤ 15º C temperature rise.
12.100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. CE, RoHS, LM-80 and IEC/EN62471 photobiological safety(no ultraviolet radiation) compliant.

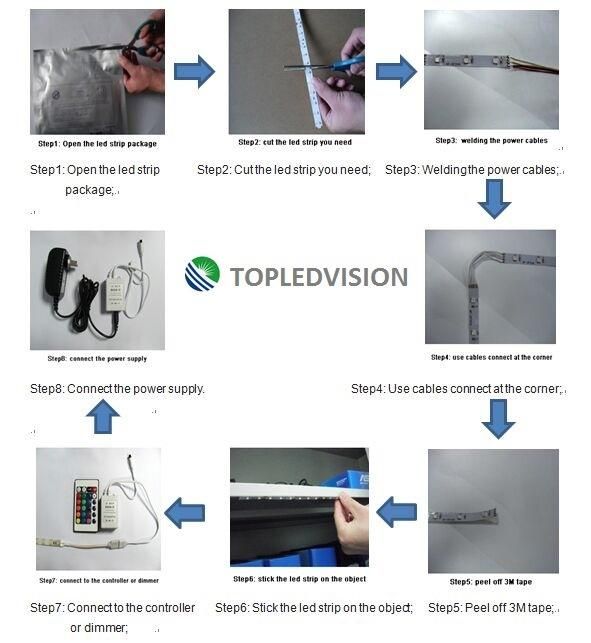

  LED Strip Installation Guide:

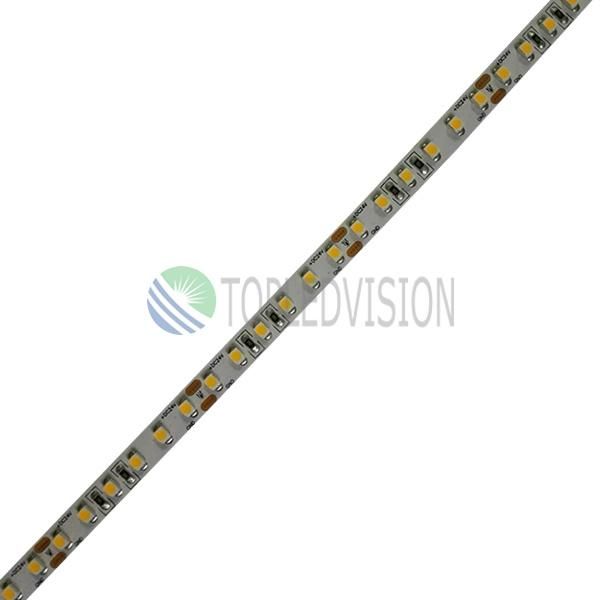

SMD3528 LED Strips Specifications:

LED Quantity	60LEDs/m        120LEDs/m
Power Consumption	4.8Watt/m        9.6Watt/m
Color	warm white 3000k,nature white 4000k, cool white 6000k,Red, Green, Blue, Yellow, Orange
LED Lumen	7-8lm
Working Voltage	12V,24V DC
CRI	70-85Ra  (90Ra)
Size(L*W*H)	5000X8(10)X1.3mm
Protect Grade	IP20,IP65,IP68
Working Lifespan	>50000Hours
Package	5Mts/Reel,10Mts/Reel,Anti-Static Bag
Warranty	2years
Certificate	CE,RoHS, IEC/EN62471/LM-80

Application:
1) Hotel,office,house decoration
2) Bar, stage, casino,KTV,supermarket
3) Store, cafe, restaurant, shopping center
4) Residential, institution buildings
5) Hospitals, museum
6) Commercial building, exhibition
7) Light box and other application



FAQ:
Q1:What's your warranty?
Mostly, our products is 2 years warranty with CE/ RoHS, we can offer 3 years warranty, but the price will be a little bit higher.
Q2: Do you offer free samples?
Yes.
Q3: What's is your shipment?
We choose it on your favor. We will research the most economical and reliable shipping company to transport the goods.
Q4:Can we make the light base on customer's design?
Yes, we welcome OEM and ODM service, we have professional engineer to design and produce according your requirement.
Q5: Can I visit your factory?
Yes, we give you a warm welcome to visit our factory. Our factory's address:2F, Block A, Chuangfu industrial pack, Shiyan, Baoan region, Shenzhen of China. If you are willing to come, just call me!

Look forward to your call, Tel:+86 15871190237
