• Model NO.：TLV-FS2835-60D
• Model：SMD2835
• LED：Gold Wire and Red Copper Pad
• LED Lumen：24-26,26-28lm
• LED Quantity：60LEDs,M
• Watt：12W,M
• CRI：>80ra
• Color：Ww,Nw,Cw,R,G,B,Y,P
• Usage：Commercial,Office,Kitchen,Bar,
• Transport Package：5mts,Reel 200reel,Carton
• Specification：5000x8x 1.3mm
• Trademark：topledvision
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：100000meters,Month

Basic Info.

Model NO. TLV-FS2835-60D Model SMD2835 LED Gold Wire and Red Copper Pad LED Lumen 24-26,26-28lm LED Quantity 60LEDs/M Watt 12W/M CRI >80ra Color Ww,Nw,Cw,R,G,B,Y,P Usage Commercial,Office,Kitchen,Bar, Transport Package 5mts/Reel 200reel/Carton Specification 5000x8x 1.3mm Trademark topledvision Origin Shenzhen China HS Code 9405409000 Production Capacity 100000meters/Month

Product Description

Supplied in lengths of up to 5 metres, this LED Strip is dimmable , each LED has a warm or cool section for superior color .Fitted with 60 LEDs per metre, The LEDs are designed to produce approximately the same amount of light (lumens) regardless of the colour chosen.


The difference of Excelent supplier and cheap supplier:

Suppliers	Ours	Cheaper
Wire	99.99% gold wire	Alloy wire
Pad	Red coppper	Yellow copper/Iron
Led lumen	24-26lm	22-24lm
Light decline rate	3-5% after 50000h	10% after 30000h
Working life	3-5years	1-2years
Packing	White gift box	Aluminum foil bag
Certification	LM-80	Unknow

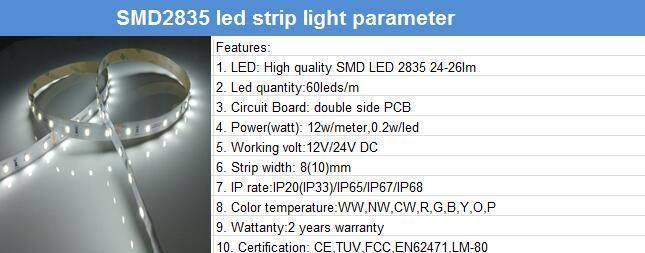

Features as follow:
1. LED source: 24-26lm/LED high brightness and low decline(Less than 3%) after 30000hours working.
2. Modular design: every 3leds or 6leds as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm/ 10mm width FPC and smaller components, LED strip is more flexible.

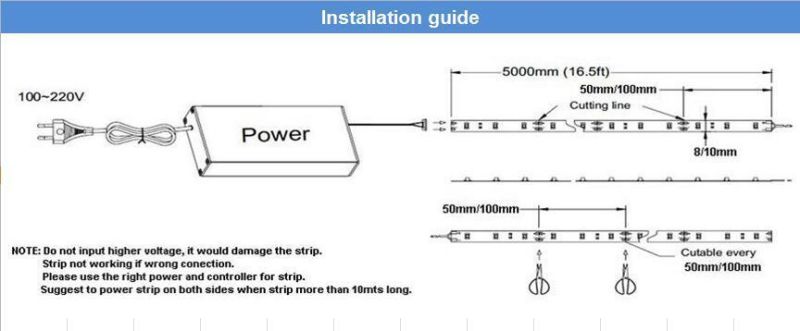

6. Support customized size: you can cut the LED strip into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED strip brightness.
8. Lifespan: More than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of led strip and maintenance free.
10. IP rating: have different IP level be able to install in any indoor/outdoor environments
11. ≤ 15º C temperature rise.
12.100% aging line test before packing minimizes the possibility of defective products out of the factory.

Tell me the model No. you need, so that I can prepare it for you :

Model	Led quantity	Volt(output)	Power	Width PCB
TLV-FS2835-30D	30leds/m	12/24V DC	6W	8mm
TLV-FS2835-60D	60leds/m	12/24V DC	12W	8mm
TLV-FS2835-120D	120leds/m	12/24V DC	16W	8mm
TLV-FS2835-168D	168leds/m	12/24V DC	18W	10mm
TLV-FS2835-240D	240leds/m	24V DC	20w	10mm
TLV-FS2835-264D	264leds/m	24V DC	22w	10mm

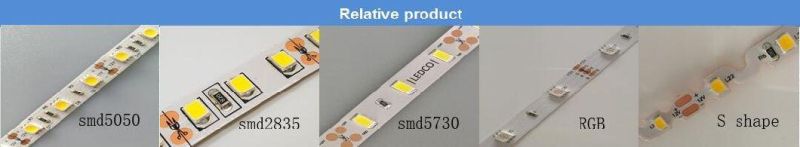

Other types of led strip for your reference:

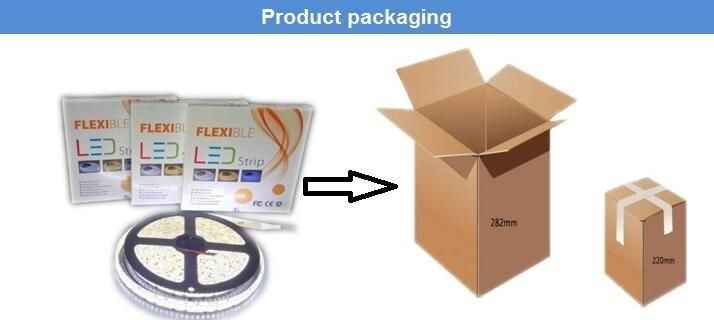

Packaging and shipping :

1.Packaging: 5 meters/roll,200 rolls/ctn for IP20.

2.Delivery Detail: Shipped in 10-12 days after payment. Delivery way by Express,Air,Sea transportations.




FAQ:
Q1: Do you have free sample?
Yes, we can offer you free samples, but you pay the shipping cost.

Q2: What is your minimum order quantity?
Usually MOQ is 50m, but we also accept small order for trail.

Q3: What's your delivery time?
Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity.

Q4. What's your delivery ways as usual?
Normally, we send the products by Express, Air or Sea transportation.

Q5. What's the payment term?
We accept  T/T, PayPal or Western Union.

Q6: Do you offer OEM customized services?
Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
