• Model NO.：SMD 5050
• Beam Angle：120degree
• SMD：5050(5chip in 1 LED)
• CRI：Ra >80
• Working Hour：50000hours
• Warranty：3years
• Transport Package：Reel to Antistatic Bag, Then in Paper Box
• Specification：5meter per reel, 10meter per reel
• Trademark：Easing Home
• Origin：China
• HS Code：9405409000
• Production Capacity：10000meter Per Day

Basi Parameter:LED Qty60LED per meterSMD Type5050  ( 5 chips in 1 LED)PCB Width12mmPCB Material2Ounce FPCPCB Color:white, Black, BrownWarranty3years
Specification ParametersLuminous Flux(lm)RGB: 360-385lm
WW+PW: 595-625lm
RGB+WW: 620-645lm
RGB+PW: 685-715lm
RGB+WW+PW: 930-965lmInput VoltageDC12V / 24VCRIRa >80ColorRed+ Blue + Green+ white + warm white ( 5chips in 1)Power16.8W per meterCurrent/LED70mABeam angle120degreeWorking temperature-20ºC~+45ºCMinim cuttable length100mm (6LEDs 24V)
50mm (3LEDs 12V)
AcceessoriesEnd cap, mounting clips, 300P 3M tape

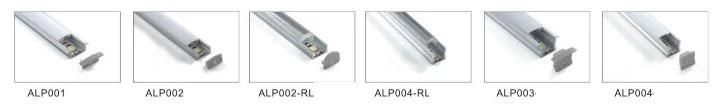

Adviced Aluminum Channel:
Any aluminum profile that suitable for 12mm PCB LED strip. we have over 300 types LED profiles. if you
have special request, pls contact us for more details on our profile catalogues. thanks.




Package:

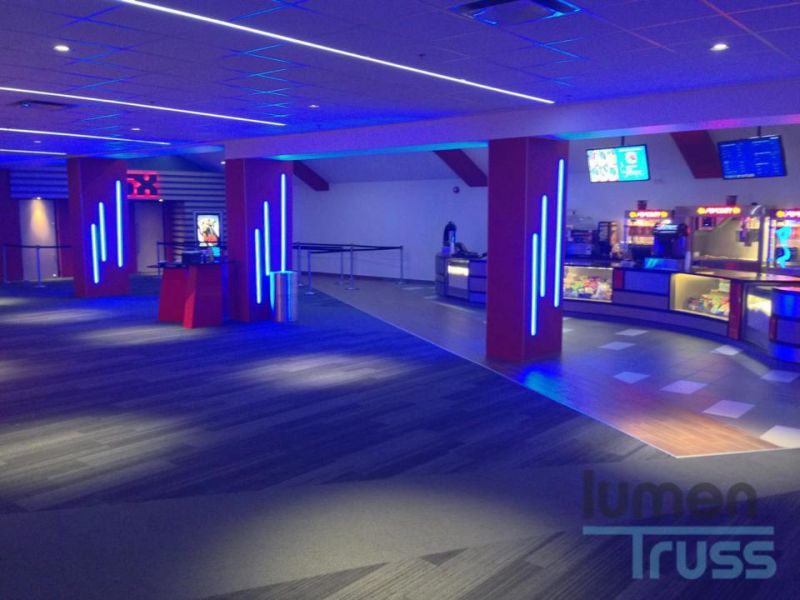

Application:
The product apply advertising signs,hotel,KTV,computer machine box,mechanical equipment,car



FAQ

Q1:Are you manufacturer?
A: Yes, We are manufacture since from 2008, is a well-known company with good reputation in China.

Q2:If I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.

Q3:What's your MOQ?
A: 1 metric ton for each model.

Q4:How do you charge the mold fee?
A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.

Q5:What is the difference between theoretical weight and actual weight?
A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.

Q6: How do you quote price, per ton or per meter?
A: We provide more than two pricing modes

Q7:How can you ensure high quality?
    1) We have our own material production workshop and die factory for 10 years.
    2) 300 workers, and workers should be well trained before go to work.
    3) 100% QC on line and final inspection, no any defective products can be out from our factory.
    4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate,  etc.

Q8:What's your payment term?
A: 30% T/T deposit + 70% T/T before loading the container .
