• Model NO.：TW1020
• Input Voltage(V)：12V,24V
• Lamp Luminous Flux(Lm)：28.8-108
• Lamp Body Material：Silicone
• Working Temperature(ºC)：-25 - 50
• LED Light Source：SMD5050
• LED Neon Strip Size：W10 X H20mm LED Neon
• Item Type：Neon Lights
• CRI (Ra>)：80
• Working Lifetime(Hour)：50000hrs
• Lamp Power：14.4W,M
• Product Name：3 Years Warranty Outdoor Silicone Waterproof Flexi
• Protection：IP65
• Lighting Mode：Side Lighting Mini Neonflex
• Application：Hotel, Foyer,Bedroom,Kitchen etc LED Sign Neon Str
• Transport Package：5m,Roll
• Specification：32cm*32cm*45cm
• Trademark：TW or OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000meters,Week

Dimensions:10X20MM LED Chip:SMD5050LED Chip Brand:EpistarLED Quantity:60LEDsVoltage:DC12VWatt:14.4Lumen:28.8-108lumenMaterail:Silicone led neon flexCut unit:2.5cm for DC12V  Packing:5/50 meter per reelMax light on:DC12V with 5 metersCertificate:UL, CE, RoHS

LED neon strip light  Features:
1. Available in full range of single-color : red, yellow, blue, green, white warm white and RGB full-color.
2. Muti-length choice: length and LED quantity can be customized.
3. Ultra-bright LED.
4. low level of heat emitted and low voltages: DC12V or 24V.
5. Easy mounting system with cricket and wire.
6. No RF interference, No hazard of mercury or lead, No danger of broken glass like traditional CFL T5 light.

Applications:
1. Light up colourful home life, DIY household lights for hallways, stairs, trails, windows
2. Light up colourful life hotels decoration use, Theaters, clubs, shopping malls, festivals and performances
3. Architectural decorative lighting, Archway, canopy and bridge edge lighting, Security lighting and Emergency
4. Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting
5. Applicable for automobile & Airplane model decoration, contour lighting or border

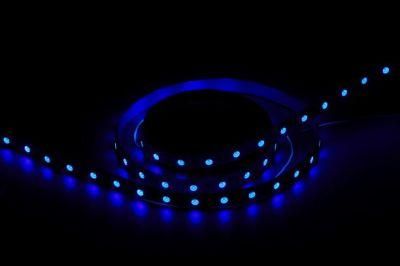

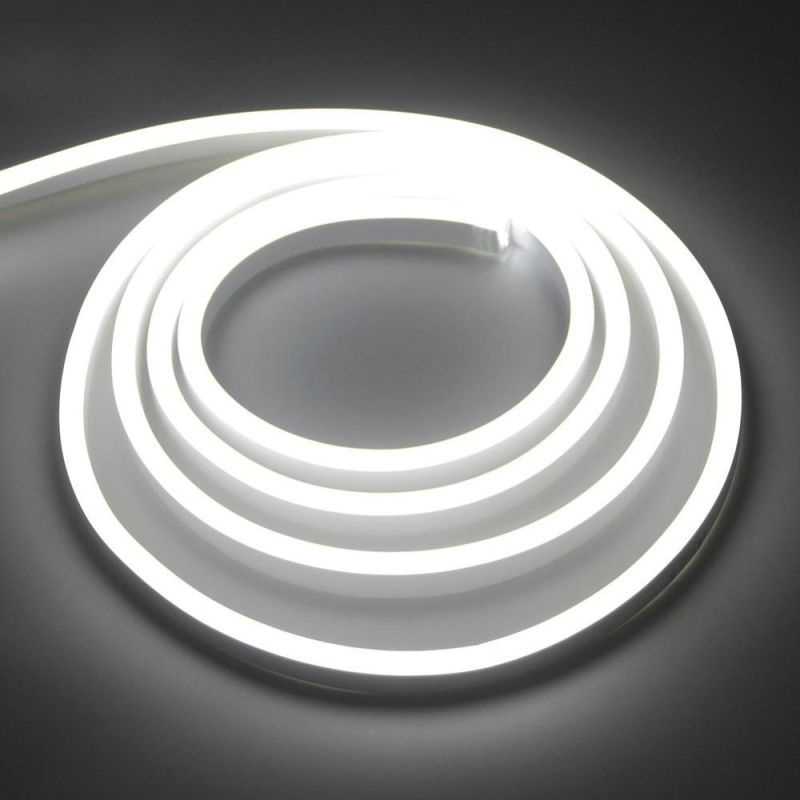

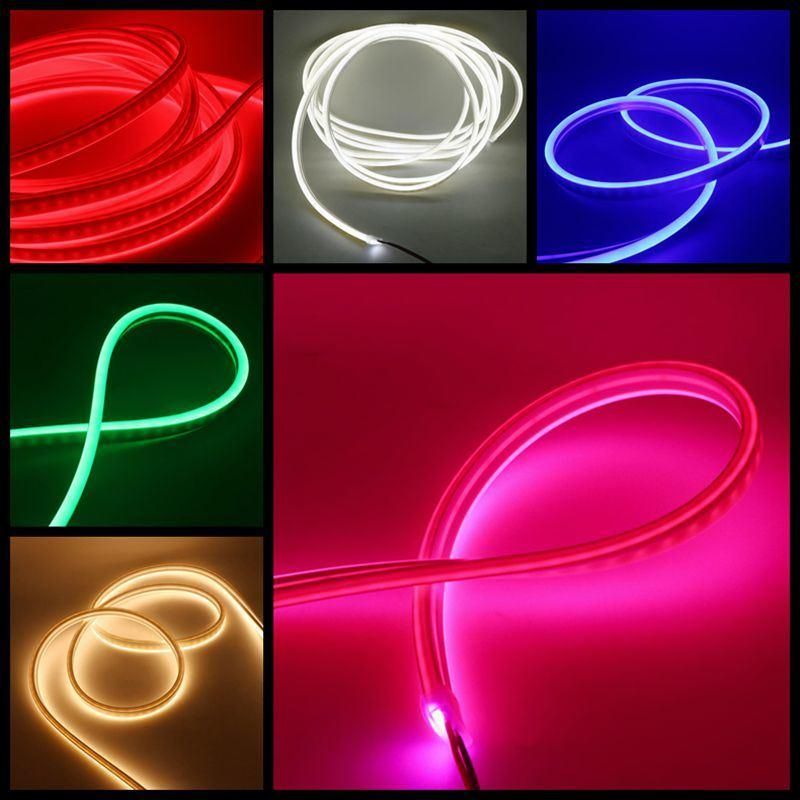

Neon Silicone LED Strips Photos:





Packing info:
Single package size: 60x40x30cm
100meters/roll  G.W: 26.0KG

Product Advantages:
1, Anit- yellowing and heat resisting silicon glue, chemical resistance acid and alkaline available for extremely terrible outdoor environment
2, Uniform and soft luminance, no light spot
3, Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, high stability, longer life span.
4, Leadless SMT technique(ROHS certificated), smooth welding joint, firm connection of led and pcb.

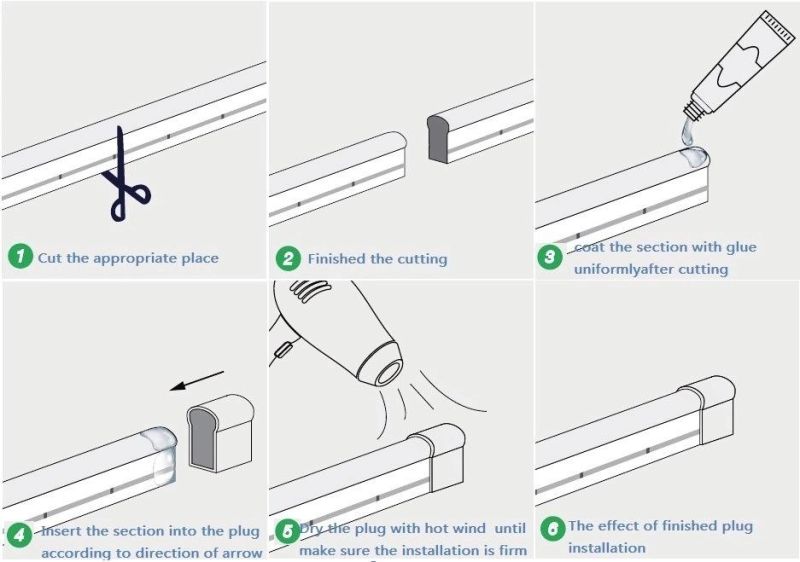

Cutting & Sealing:

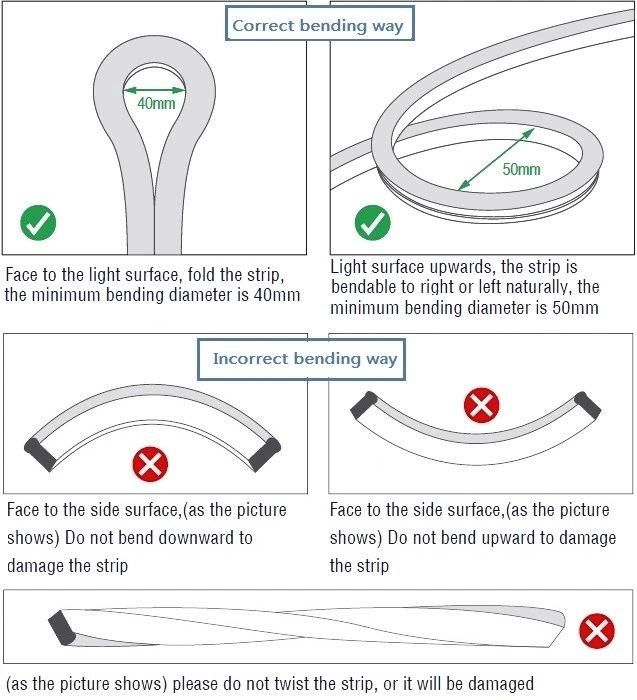

Bending Instrusion:

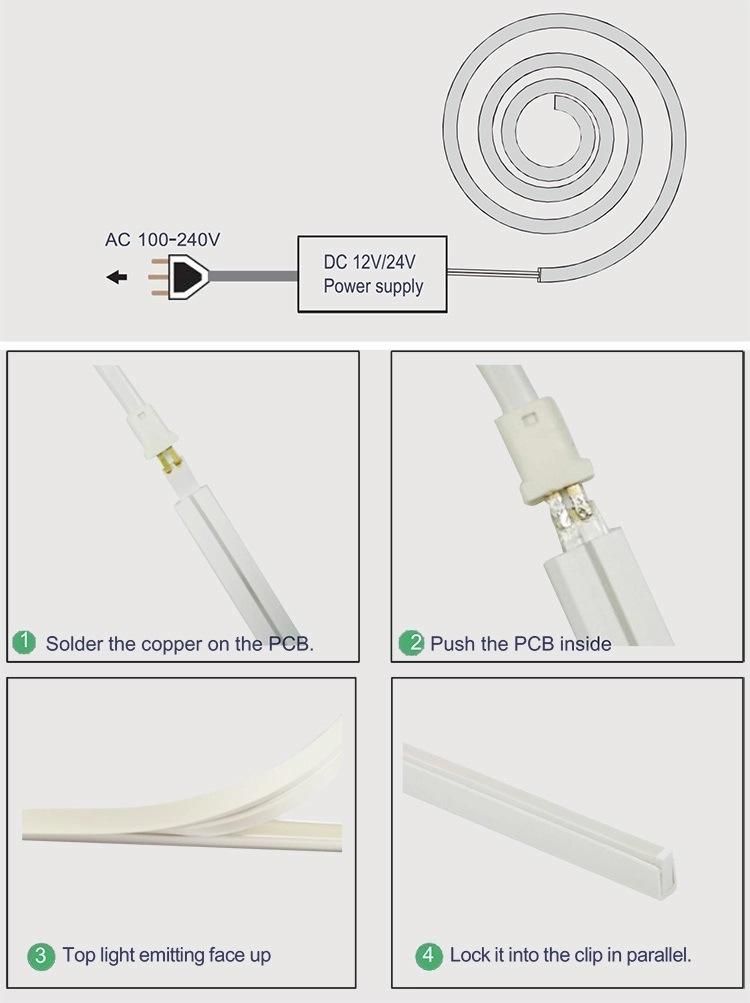

Installation Instrusion:




Certificates:

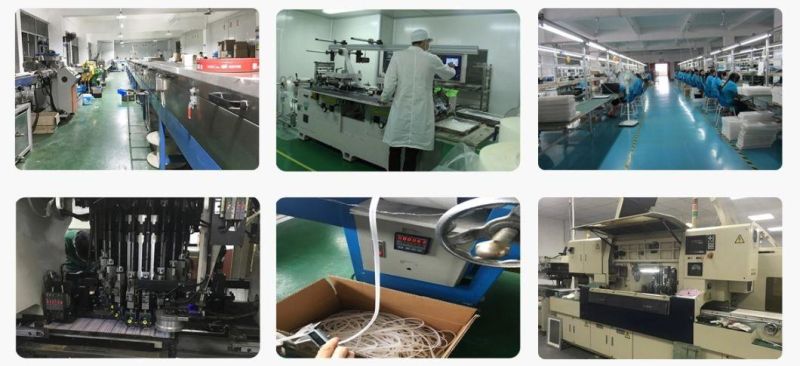

Factory Overview:
