• Model NO.：R020GW15B-TJ
• Product Size：5000*15*5.6mm
• Cuttable Unit：100mm
• LED Pitch：50mm
• Max. Cascade Length：5m
• Min. Bend Diameter：30 mm
• Mounting Solution：3m Tape
• Operating Ambient：-25 Centigrade Degrees to 45 Centigrade Degrees
• Storage Environment：-25 Centigrade Degrees to 60 Centigrade Degrees
• Transport Package：Carton Packaging
• Specification：5M,roll
• Trademark：OEM,ODM,MYNICE,Neutral
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. R020GW15B-TJ Product Size 5000*15*5.6mm Cuttable Unit 100mm LED Pitch 50mm Max. Cascade Length 5m Min. Bend Diameter 30 mm Mounting Solution 3m Tape Operating Ambient -25 Centigrade Degrees to 45 Centigrade Degrees Storage Environment -25 Centigrade Degrees to 60 Centigrade Degrees Transport Package Carton Packaging Specification 5M/roll Trademark OEM/ODM/MYNICE/Neutral Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

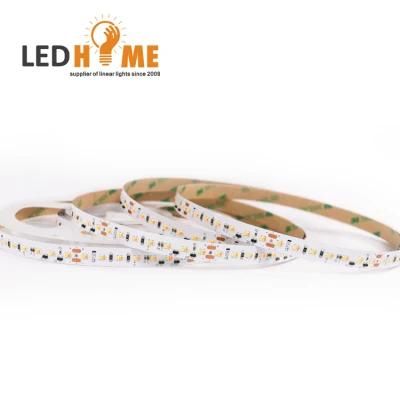

Beam angle 160 degrees lens 2835 led light strip

Application
- It is suitable for indoor advertising light box lighting in hotels, shopping malls, etc.
- Suitable for light boxes and channel letters with a thickness of 50~300mm

Main features
- Use high-efficiency 2835 LED, 20 LED chips per meter
- Excellent thermal and voltage drop design ( 2 OZ copper FPC design)
- Beam angle: 160°.
- IP Grade: IP20.
- Roll-like packaging, convenient and quick installation.
- It is flexible to use and can be cut to different lengths.
- The normal life span can reach 30,000 hours (at tc 50°C).

Main Parameters
Product size  5000*15*5.6 mm
Cut-able unit  100mm
LED pitch  50 mm
LED quantity  20 LEDs/m
Max. cascade length  5 m
Min. bend diameter  30 mm
Mounting solution  3M tape
Operating ambient  -25ºC~45ºC
Storage environment  -25ºC~60ºC / 60% RH

1. Ranking at t a = 25ºC.
2. Tolerance of measurements for brightness is ±10%, tolerance of measurements for the Chromaticity Coordinate is ±0.01.

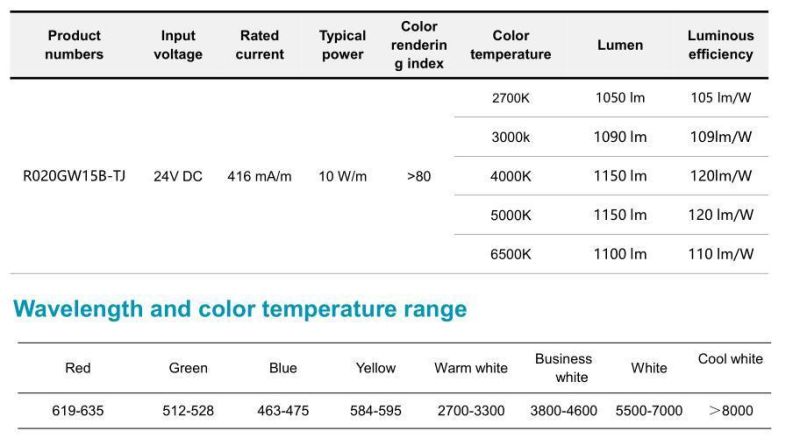

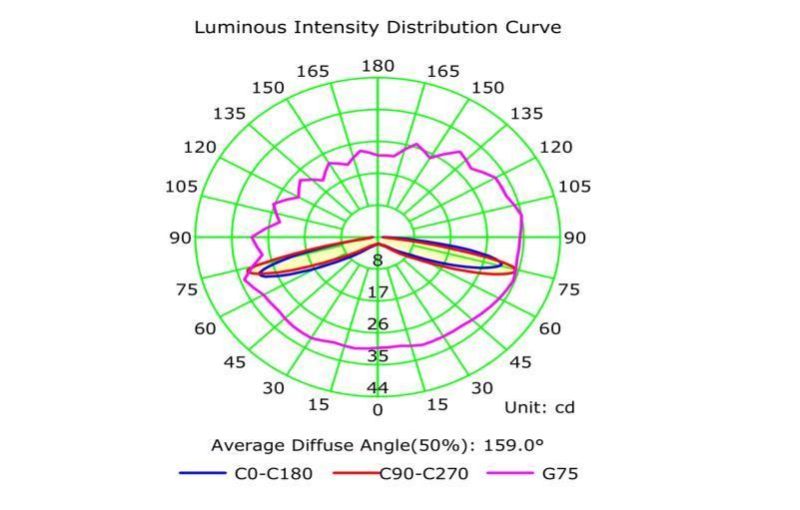

Technical data & Light distribution

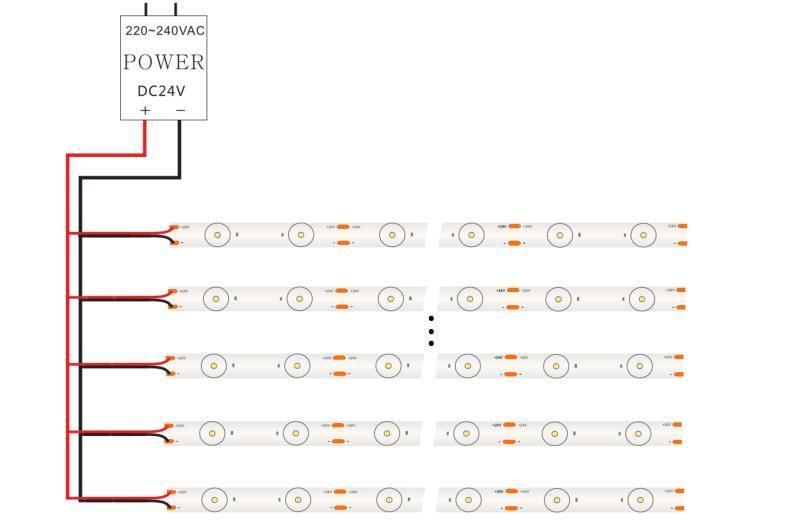

Product wiring diagram

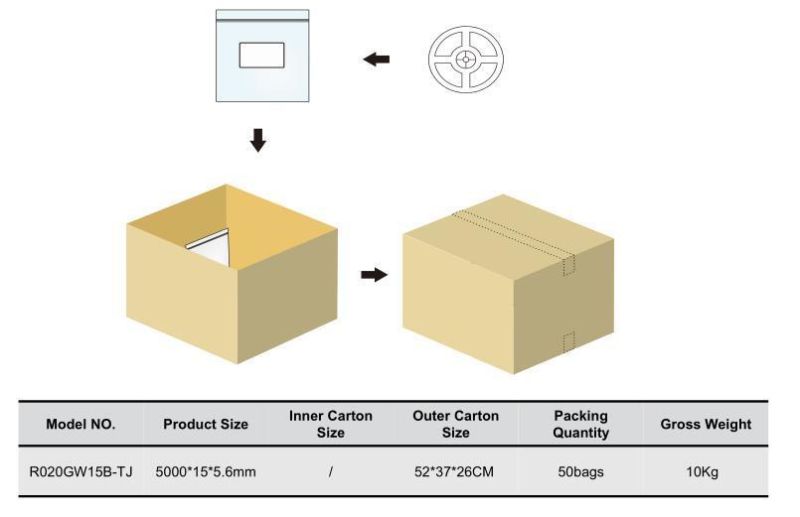

Package



Instructions
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and
norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent
with the voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20
ºC ~ + 40 ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the
product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
