• Cascade Quantity：100 Meters Per Roll
• Beam Angle：120 Degree
• Lifetime：50, 000 Hrs
• Ceritification：CE,UL,Rosh,Lm-79,Lm-85
• Warranty：3 Yrs
• Transport Package：1 Carton
• Specification：5000*1000*800mm
• Trademark：MYNICE,OEM,ODM
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：120000 Meters Per Month

Basic Info.

Cascade Quantity 100 Meters Per Roll Beam Angle 120 Degree Lifetime 50, 000 Hrs Ceritification CE/UL/Rosh/Lm-79/Lm-85 Warranty 3 Yrs Transport Package 1 Carton Specification 5000*1000*800mm Trademark MYNICE/OEM/ODM Origin Shenzhen, China HS Code 9405409000 Production Capacity 120000 Meters Per Month

Product Description

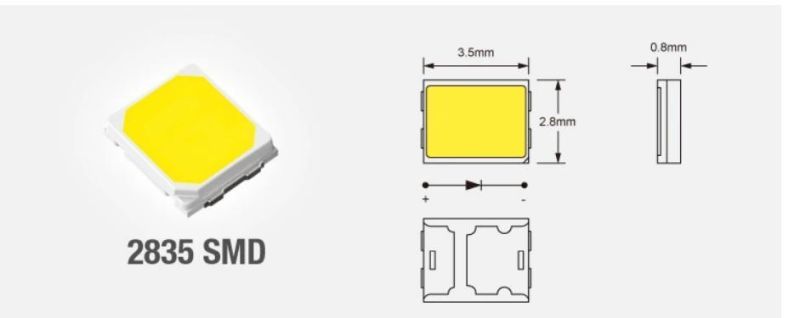

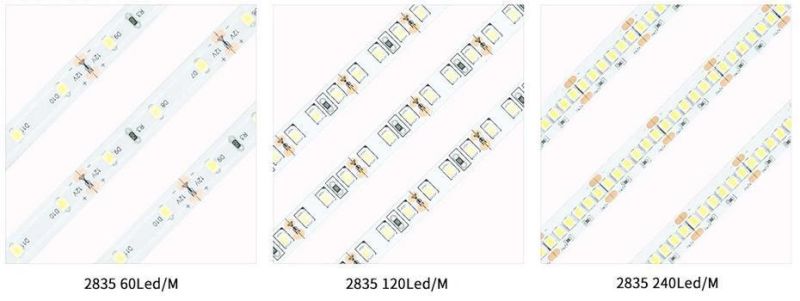

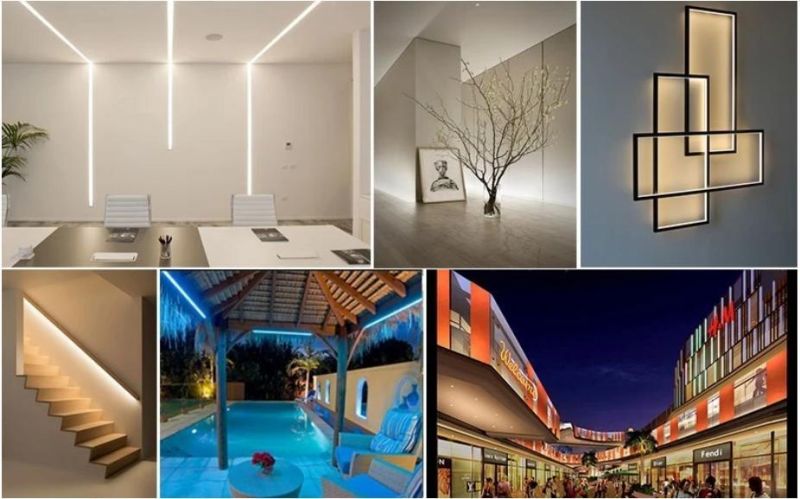

SMD2835 12V High CRI Waterproof flexible Red color indoor or outdoor decorated light led strips


Techincal Data:
Item No.  Nominal  Voltage      Color Temperature          CRI          Flux                    Power
R060GW10A          12V              2700-3300K                  >80         120LM               7.2W
R120GW10A          12V             5500-6500K                   >80         120LM                9.6W
R120GW10A          12V             8000-12000K                 >80         110LM                14.4W

1. Tolerance range for optical and electrical data: -15/+15%.
2. All value @ ta=25ºC
3. Tolerance range for the supply voltage: 12V:±5%.

Application Data:
Max connection number   100 METERS
Ends of led strip (Wire)      150mm
Ambient temperature         -25ºC to +50ºC
Max working temperature      65ºC
Storage temperature          -40ºC to +85ºC
Risk group(EN62471:2008)      1
Certification list       CE/UL/ENEC/RoHS/LM-85


Shipping:
1. FedEx/DHL/UPS/TNT for samples/small orders, Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery port: Shenzhen.Jacky-WSA8613510715159

Noted:
_ The power cable should meet the actual maximum current and power.
_ All the end point of wire should be treated with waterproof;
_ Pay attention to the maximum number of connections, prohibit overloading.
_ All the power supply must has the corresponding certification.
_ Our company reserves the right of final interpretation.
_ Subject to change without notice.
