10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project

Mynice Optoelectronics Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE
  • Power：15W,M
  • Emitting Color：White
  • Voltage：12V
  • IP Rating：IP20,IP54,IP65,IP67,IP68
  • LED Quantity：528 LEDs,M

Base Info

  • Model NO.：RB0L8WW10A
  • Package：5m,Roll
  • Color：2700K,3000K,4000K,5000K,6500K
  • Aluminous Flux：1350-1650 Lm,M
  • Length：5m
  • Warranty：3 Years
  • IP：IP20 IP67 IP68 IP54
  • Delivery Time：5days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air
  • Rated Current：625mA,M

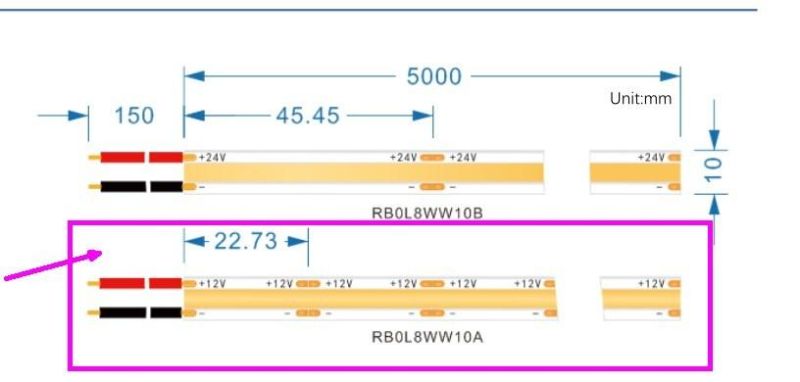

  • Cut-Able Unit：22.73mm
  • LED Pitch：1.89mm
  • Ra：80

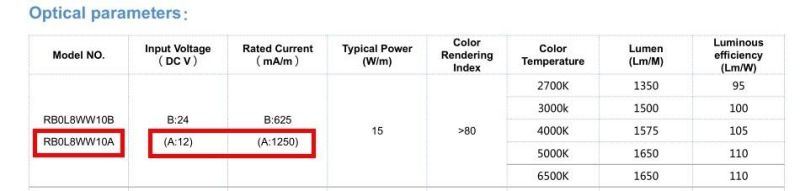

  • Luminous Efficiency：95-110lm,W

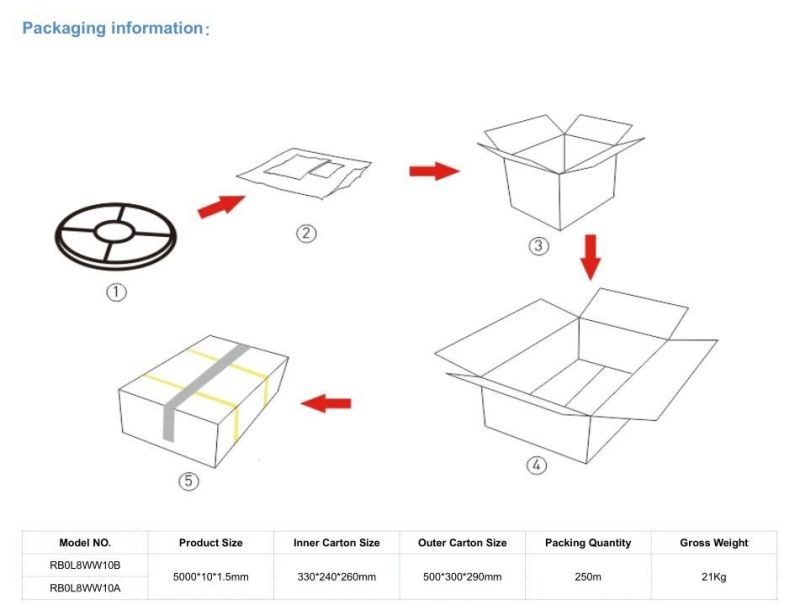

  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw21kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW21kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

Product size5000*8*1.15 mmCut-able unit22.73mmLED pitch1.89mmLED quantity528 LEDs/mMin. bend diameterØ20 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RH10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project

Size:
10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project

10mm Width DC12V Cut Unit 22.73mm LED Flexible COB Strip for Project
