LED Lighting Decoration

High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M

TOPLEDVISION PHOTONICS CO LIMITED
  • Certification:FCC, RoHS, CE, IEC,En62471, Lm-80
  • Power:16W,M
  • Emitting Color:Warm White, Nature White, Cool White, R, G, B, Y
  • Voltage:AC 110V,220V
  • IP Rating:IP65, IP67, IP68
  • LED Quantity:120LEDs,M 2835

Base Info

  • Model NO.:TLV-HVFS2835Q120W
  • Type:High Voltage LED Flexible Strip
  • LED Suppliers:Xuyu,Honglitronic,Osram,Samsung
  • LED Chip Brand:Sanan ( Epistar , Samsung Optional )
  • LED Material:Packaged by 99.99% Pure Gold Wire, Red Copper Pad
  • LED Bins:2-Step,3-Step,6-Step, Same Bin for Each Order
  • LED Luminous:50-55lm, 55-60lm, 60-65lm,LED
  • PCB Material:Double-Sided Pure Copper Circuit Board
  • PCB Width:10mm , 12mm
  • PCB Thickness:2oz ( 3oz Optional )
  • LED Testing:IEC,En62471, Lm-80
  • Adhesive Tape:3m Vhb Adhesive Tape
  • Packing:5m,10m,20m,30m,50m Per Roll
  • Warranty:3 Years
  • Certificates:TUV CE, FCC, RoHS, IEC,En62471
  • Transport Package:Inner Box and Carton
  • Specification:SMD2835 120LEDs,m
  • Trademark:Topledvision
  • Origin:Shenzhen, China
  • HS Code:9405409000
  • Production Capacity:100000m,Month

Description

Basic Info.

Model NO. TLV-HVFS2835Q120W Type High Voltage LED Flexible Strip LED Suppliers Xuyu/Honglitronic/Osram/Samsung LED Chip Brand Sanan ( Epistar / Samsung Optional ) LED Material Packaged by 99.99% Pure Gold Wire, Red Copper Pad LED Bins 2-Step/3-Step/6-Step, Same Bin for Each Order LED Luminous 50-55lm, 55-60lm, 60-65lm/LED PCB Material Double-Sided Pure Copper Circuit Board PCB Width 10mm / 12mm PCB Thickness 2oz ( 3oz Optional ) LED Testing IEC/En62471, Lm-80 Adhesive Tape 3m Vhb Adhesive Tape Packing 5m/10m/20m/30m/50m Per Roll Warranty 3 Years Certificates TUV CE, FCC, RoHS, IEC/En62471 Transport Package Inner Box and Carton Specification SMD2835 120LEDs/m Trademark Topledvision Origin Shenzhen, China HS Code 9405409000 Production Capacity 100000m/Month

Product Description

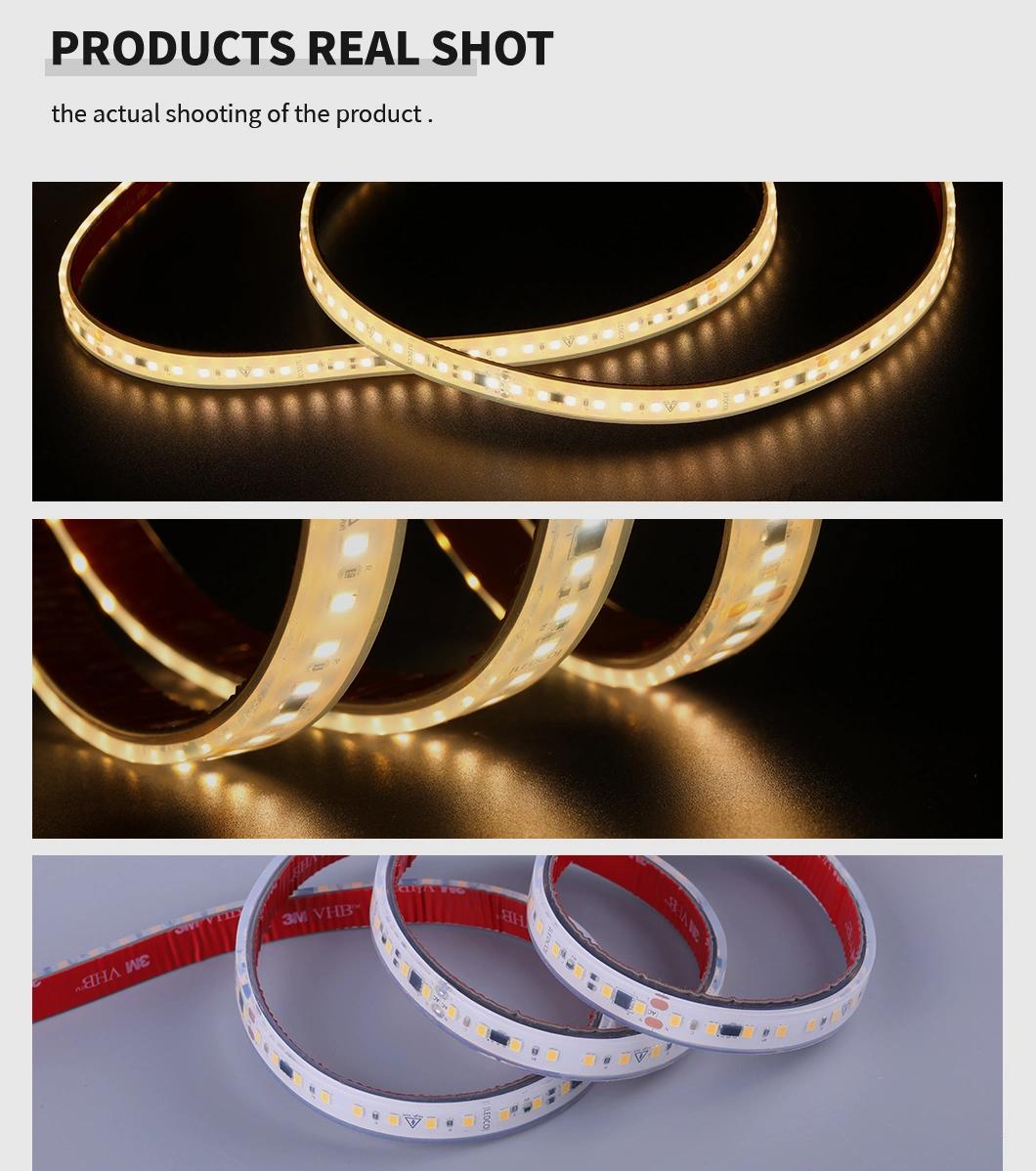

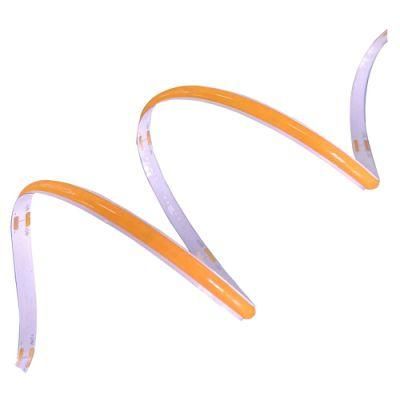

High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/m
High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M

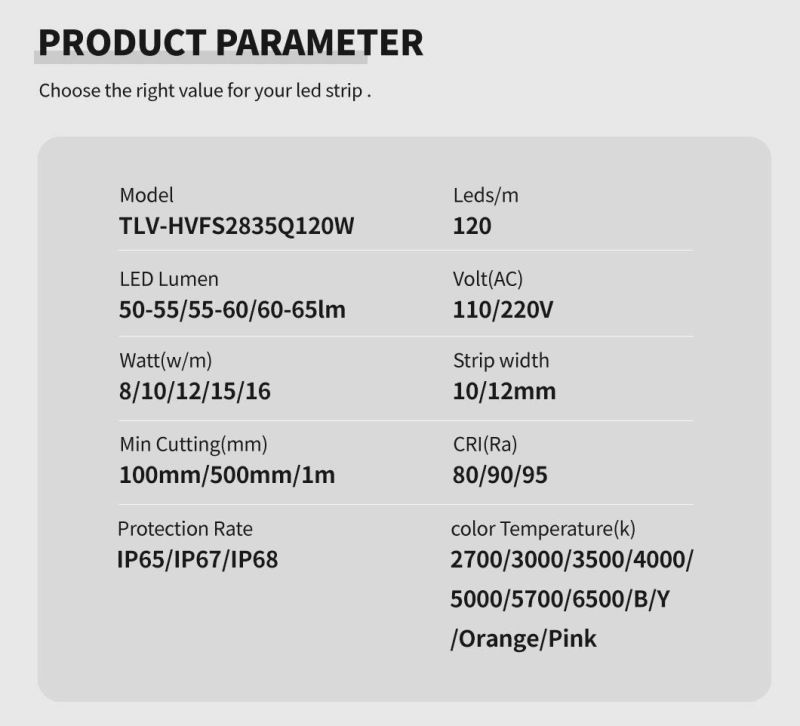

Product Parameter

Model No.TLV-HVFS2835Q120W
LED Quantity 120LEDs/m 2835

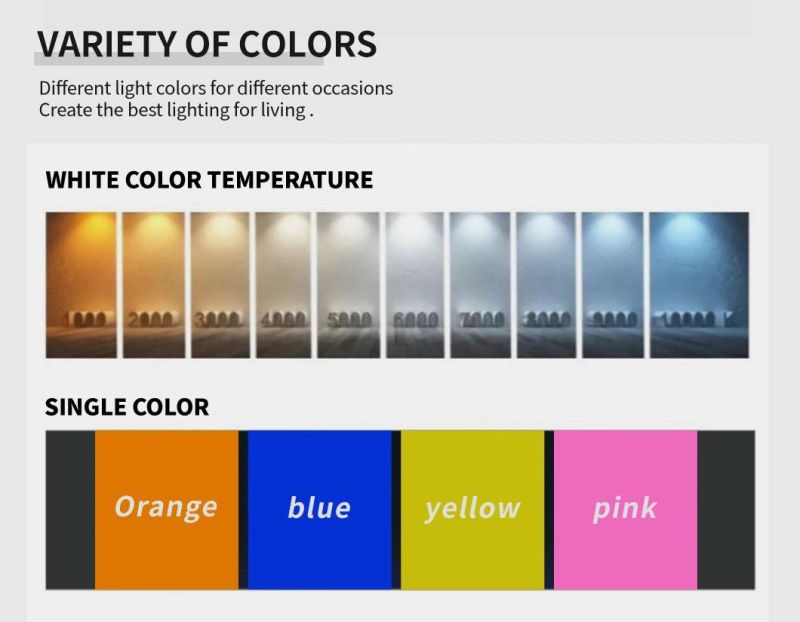

Color Temperature2700 / 3000 /3500 / 4000 / 5000 / 5700 / 6500 / B / Y / Orange / Pink
ColorWW / NW / CW / B / Y / Orange / Pink
Voltage AC110V / AC220V
Power (w/m)8 / 10 / 12 / 15 / 16
CRI(RA>)CRI>80 (CRI >90 / CRI >95 optional)
PCB Width10/12mm
PCB materials2Oz Double-Sided pure copper Circuit Board
LED SuppliersXUYU / Honglitronic / Osram / Samsung
LED Chip BrandSanan ( Epistar / Samsung optional )
LEDs Materialpackaged by 99.99% pure gold wire, red copper pad
LED BINs2-Step/3-Step/6-Step, same BIN for each order
Luminous (lm)/LED50-55 / 55-60 / 60-65lm
IP RateIP65 / IP67 / IP68
Cutting min unit100mm / 500mm / 1m
View Angle120°
Package (m/roll)5m, 10m, 20m, 30m, 50m per roll ( customized length available )
Working Temperature (ºC)-20-60°
Adhesive TapeOriginal 300LSE 3M tape
DimmableYes

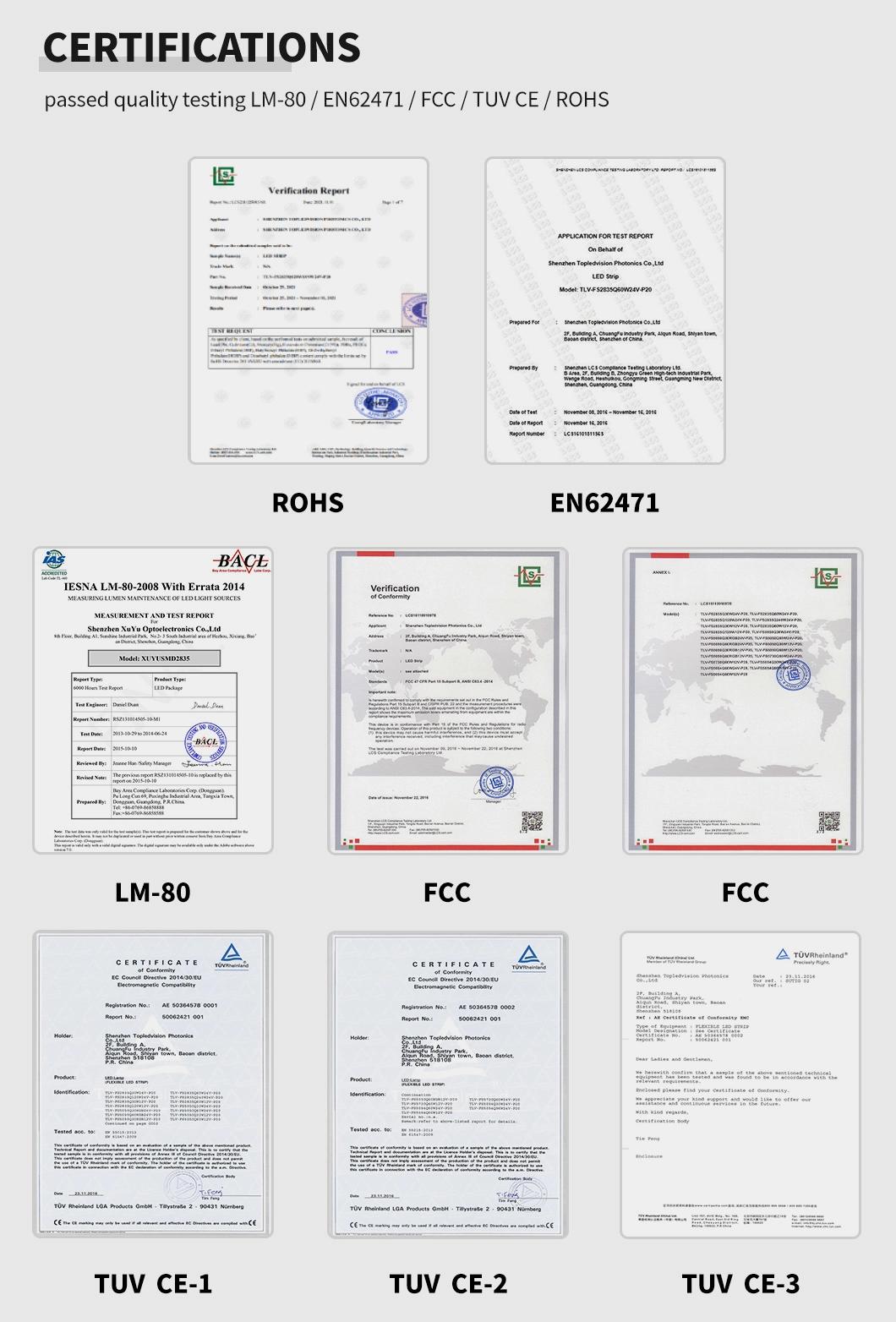

CertificateTUV CE, FCC, RoHS, IEC/En62471
Warranty3 Years

High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/MHigh Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/MHigh Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M

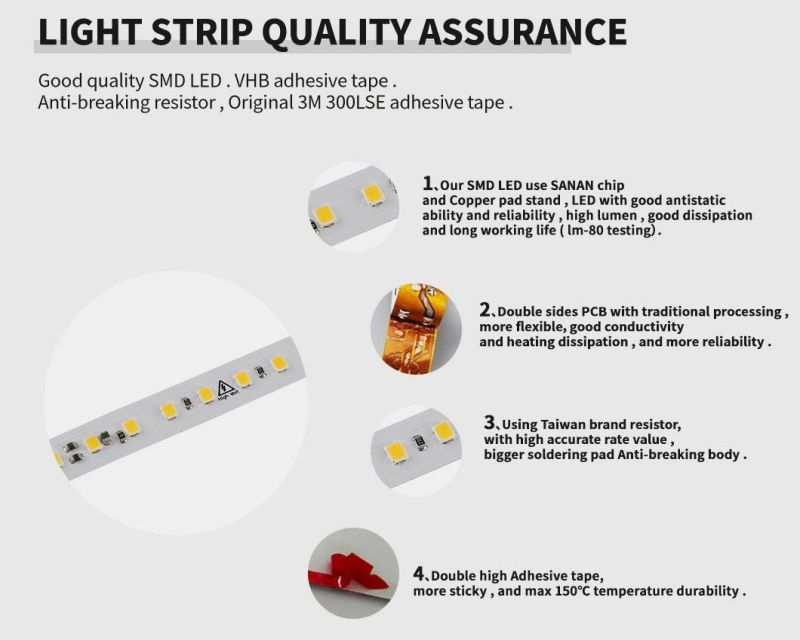

Features as follow:

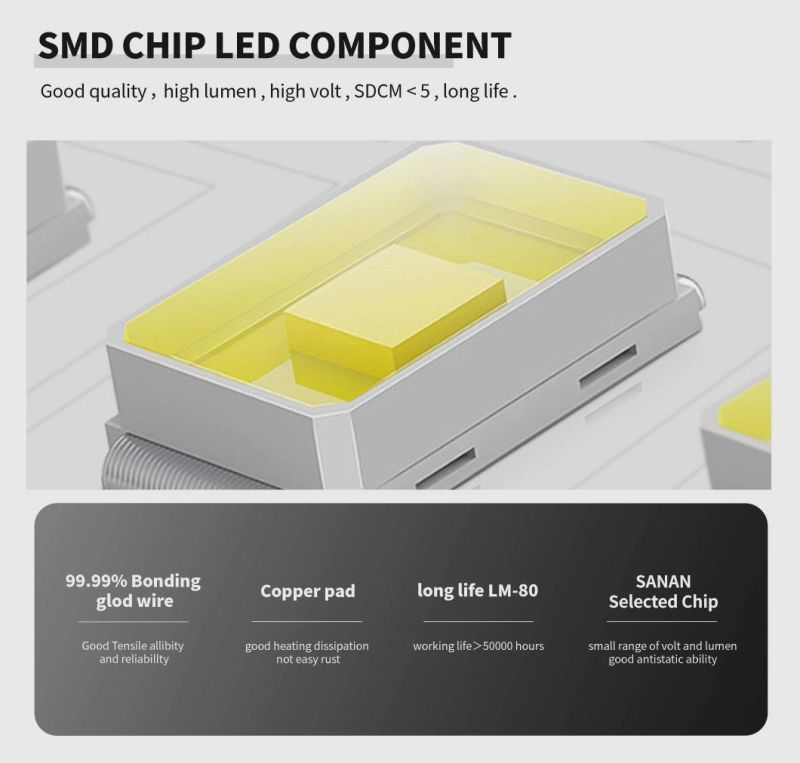

1. 2835 assembled LEDs:
- 99.99% gold wire, red copper pad;
- 24~26lm/LED ( Epistar 26-28lm/LED ) passed LM-80 certified;
- Double-sided circuit board
2. Cost saving, the strip do not need power supply to transform voltage, and adopt constant current IC scheme to realize constant current control to AC voltage;
3. Adopt silicone material,higher ingress protection, and strong resistance to corrosion;

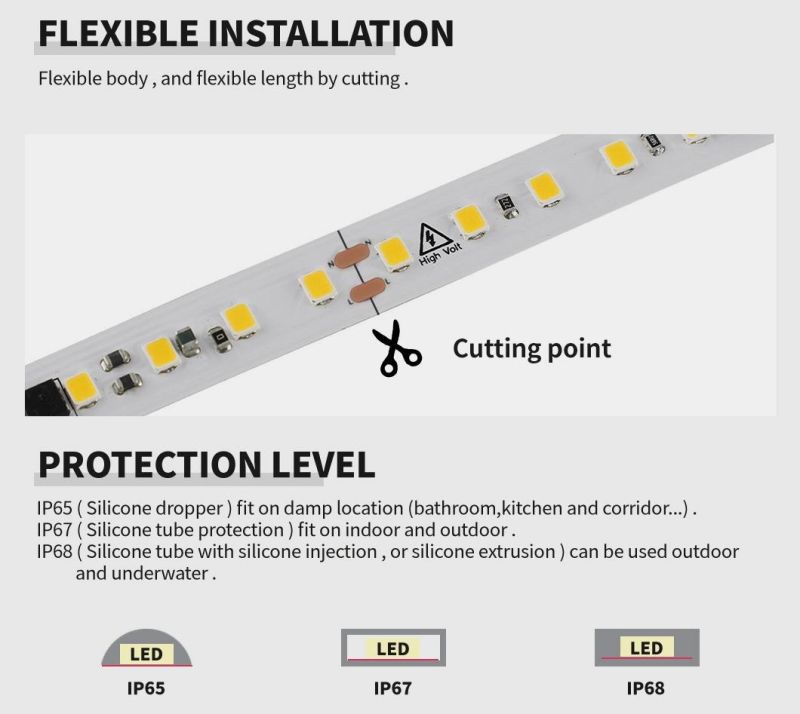

4. The minimum cutting length is 500mm / 100mm.
High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/MHigh Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/MHigh Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/MHigh Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M
Applications:
1. Home, stage lighting;
2. Festival, activities, exhibition lighting;
3. Backlight of signage;
4. Contour lighting;
5. Landscape decoration lighting;
6. Engineering, decorative project,etc
High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M
High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M
High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M
High Quality 100mm-Cutting High Volt LED Strip Light 120LEDs/M
FAQ:
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept  T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
